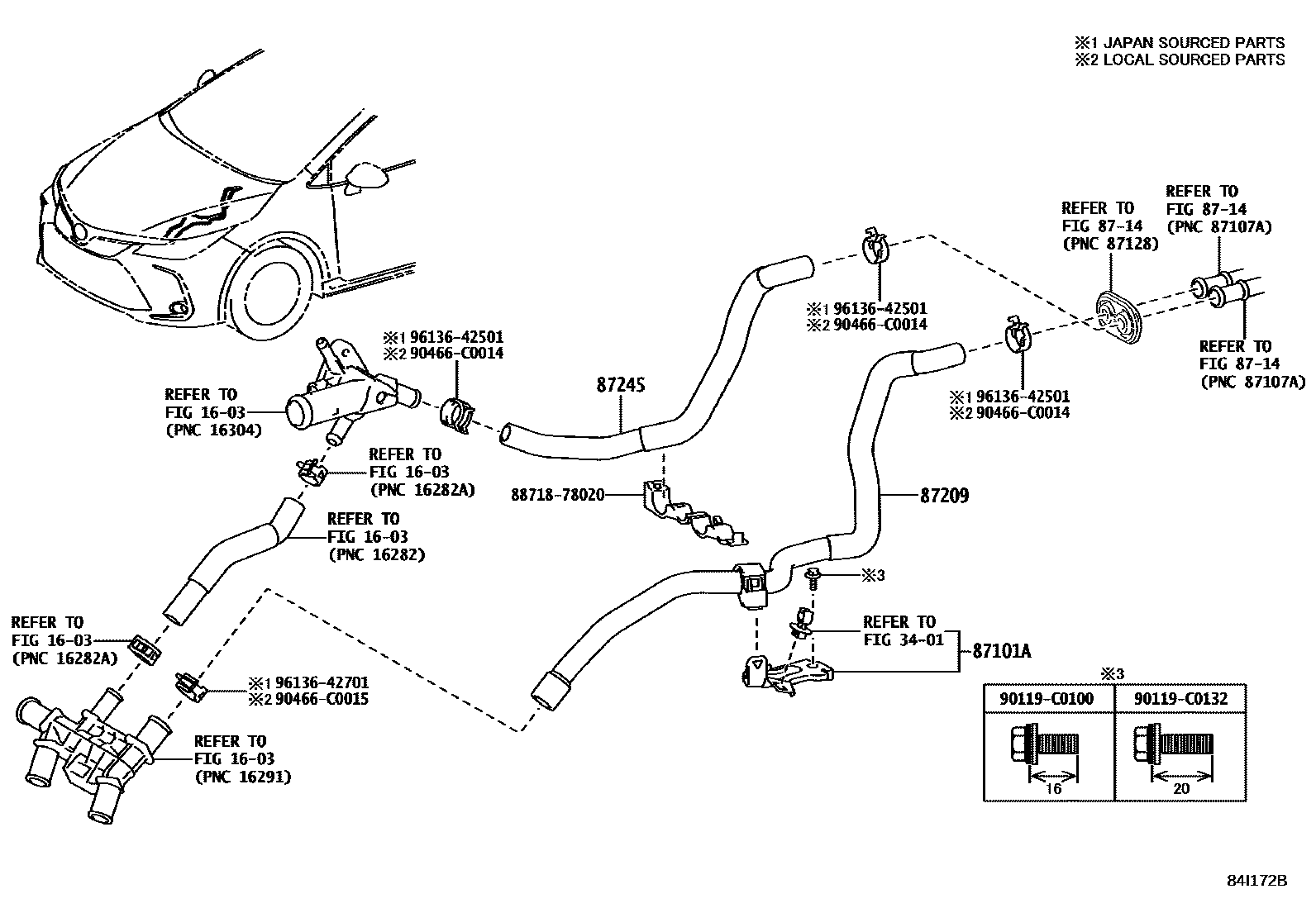

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1603

3401

87101ABRACKET SUB-ASSY, HEATER NO.1

main87101-02140iNRE210..ENTRY,MID201908-202304

8714

87209HOSE SUB-ASSY, WATER

main87209-02570iNRE210..HI201908-202304

87245HOSE, HEATER WATER, INLET

main87209-02250iMZEA11202101-202304

main87209-02750iZWE219202305

main87245-02U80iNRE210..HI201908-202304

main87245-02U90iZWE211201908-202304

8871878020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-78020

90119C0100

main90119-C0100

90119C0132

main90119-C0132

90466C0014

main90466-C0014

90466C0015

main90466-C0015

9613642501

main96136-42501¥200

9613642701

main96136-42701¥200

13 parts on this diagram · 3 diagrams in section
