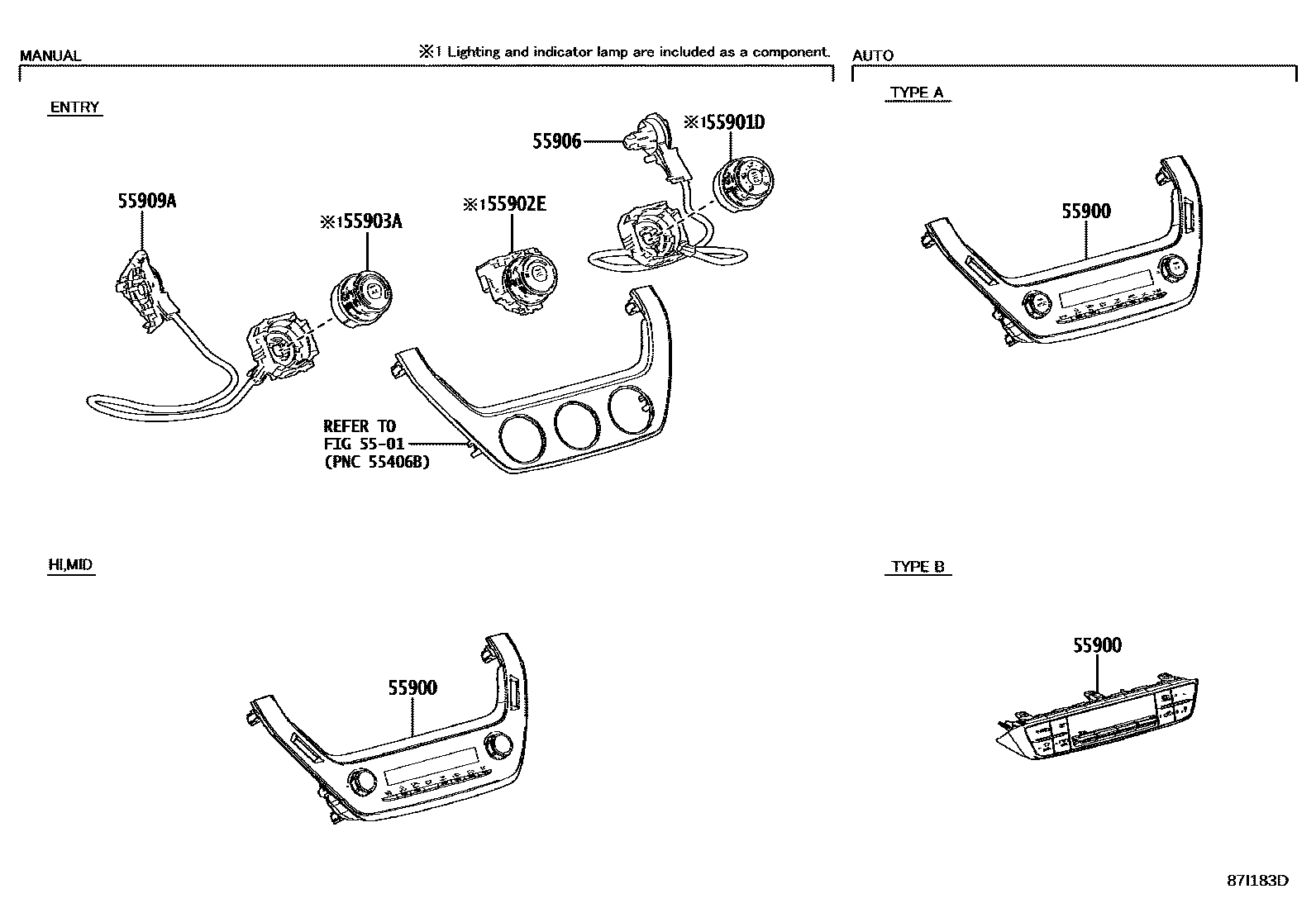

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501
55900CONTROL ASSY, AIR CONDITIONER
SILVER,TRIM0#,2#,TYPE A:REFER ILLUST.
SILVER,TRIM0#,2#,TYPE A:REFER ILLUST.
LADY PACKAGE,SILVER,TRIM2#,TYPE A:REFER ILLUST.
SILVER,TRIM0#,2#
SILVER,TRIM0#,2#
TYPE B:REFER ILLUST.
SILVER,TRIM2#,4#
SILVER,TRIM2#,4#
55906CABLE SUB-ASSY, HEATER CONTROL
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
7 parts on this diagram · 4 diagrams in section
