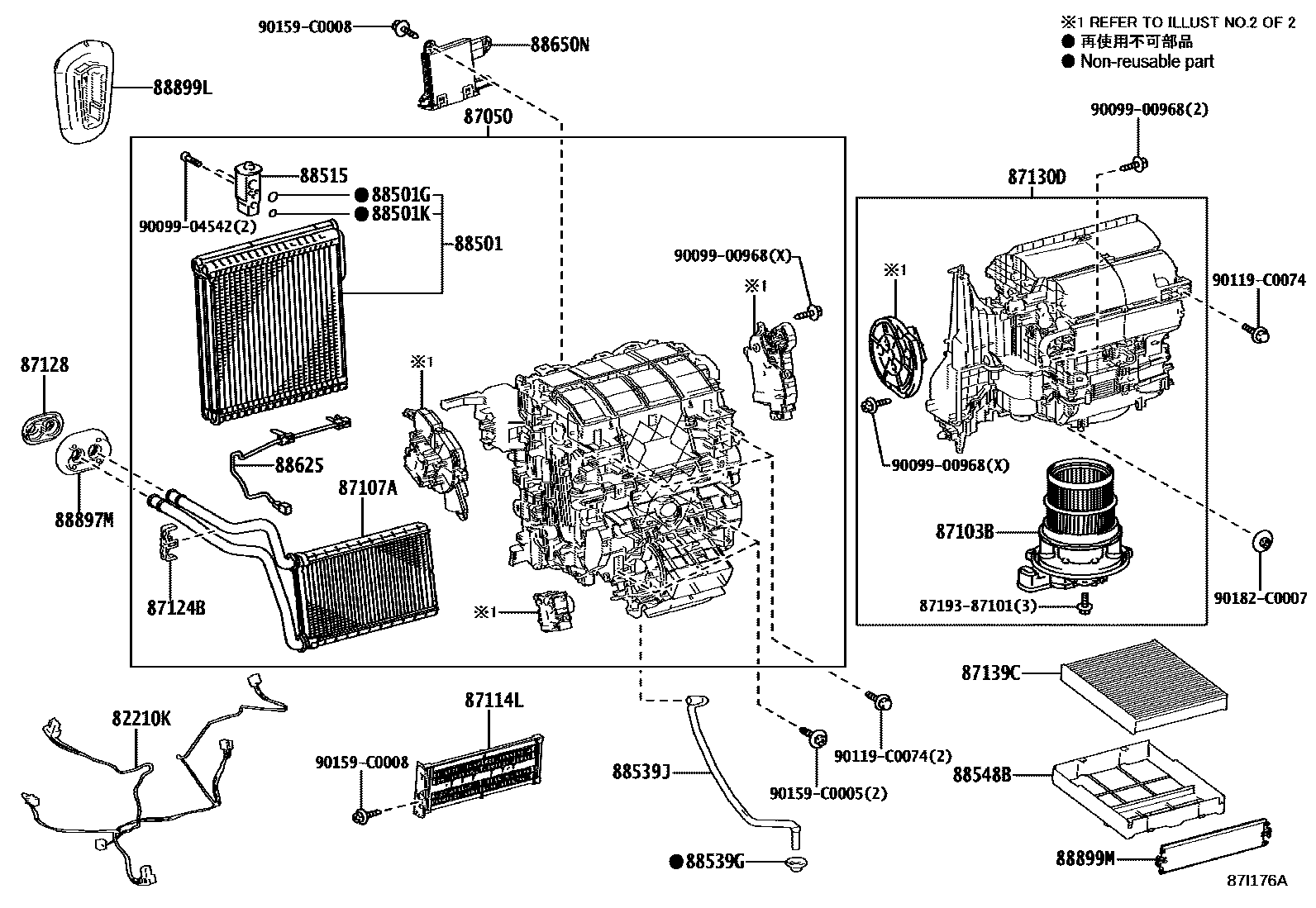

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1DAMPER SERVO 0008 1DAMPER SERVO

82210KHARNESS ASSY, AIR CONDITIONER

main82212-02370iMZEA11..MID201908-202304

LEATHER PACKAGE

main82212-02370iNRE210..HI201908-202304

main82212-02390iZWE211..HI,MID201908-202304

main82212-02400iZWE211..ENTRY201908-202304

main82212-02710iZWE219;MZEA17..HI,MID202305

main82212-02730iMZEA17..ENTRY202306

main82212-F4040iNRE210..MID201908-202304

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0Z320iNRE210..HI201908-202304

main87050-0Z320iMZEA11..HI201908-202304

LEATHER PACKAGE

main87050-0Z330iMZEA11..MID201908-202304

main87050-0Z350iZWE211..HI,MID201908-202304

main87050-0Z360iZWE211..ENTRY201908-202304

main87050-0ZG50iMZEA11..ENTRY201908-202304

main87050-0ZJ00iMZEA17..HI,MID202306

main87050-0ZJ10iZWE219202305

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02650iNRE210..ENTRY201908-202304

main87103-02760iMZEA17,ZWE219202305

main87103-F4060iNRE210..HI201908-202304

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-F4040iMZEA17,ZWE219201908-202304

87114LCOVER, HEATER, NO.2

main87114-02200iNRE210..HI201908-202305

main87114-0A050iNRE210..MID202305

main87114-F4100iNRE210..ENTRY201908-202304

87124BCLAMP, HEATER

main87124-F4060iMZEA11,ZWE211201908-202304

87128GROMMET, HEATER

main87128-0A040iNRE210..ENTRY,MID202312

(L)

main87128-28010iNRE210..ENTRY,MID201908-202410

main87128-28010iNRE210..ENTRY,MID202312

(J)

87130DBLOWER ASSY

main87130-02C70iNRE210..ENTRY201908-202304

main87130-02C80iZWE219;MZEA17..HI,MID202305

main87130-02C90iMZEA17..ENTRY202306

main87130-F4070iZWE211;MZEA11..HI,MID201908-202304

87139CFILTER, CLEAN AIR

main87139-02260iNRE210..HI;MZEA11,ZWE211202010-202306

MICRO DUST FILTER,OE PART

sub87139-02290

main87139-02290iMZEA17,ZWE219202305

MICRO DUST FILTER,OE PART

main87139-58010iNRE210..HI201908-202304

DEODORANT FILTER

main87139-F4050iZWE211;NRE210..ENTRY,MID201908-202010

MICRO DUST FILTER,OE PART

sub87139-02260

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02460iMZEA17201908-202304

main88501-02470iZWE211201908-202304

main88501-F4130iZWE219202305

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iNRE210..HI201908-202304

ID=13.4,OD=18.2

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90099-14120iNRE210..HI201908-202304

ID=10.8,OD=15.6

88515VALVE, COOLER EXPANSION

main88515-07050iZWE211201908-202304

main88515-F4040iMZEA17,ZWE219201908-202304

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-06030iNRE210..HI201908-202304

88539JHOSE, DRAIN COOLER

main88539-0A070iNRE210..ENTRY,MID202305

main88539-F4070iNRE210..HI201908-202305

88548BCASE, AIR FILTER

main88899-02260iZWE211;NRE210..HI;MZEA11..HI,MID202010-202306

sub88899-02261

main88899-02261iNRE210..MID202306

main88899-F4350iZWE211;NRE210..MID201908-202010

sub88899-02260

88625THERMISTOR, COOLER, NO.1

main88620-07020iNRE210..HI201908-202304

main88620-F4030iZWE211201908-202304

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-02J50iNRE210..ENTRY202101-202304

main88650-02M30iNRE210..HI201908-202101

main88650-02M31iMZEA11,NRE210..HI,MID202101-202111

main88650-02M32iZWE211202110-202211

main88650-02N40iZWE219;MZEA17..HI,MID202305-202406

sub88650-02N41

main88650-02N41iZWE219;MZEA17..HI,MID202407

main88650-02N50iMZEA17..ENTRY202306

main88650-02P40iZWE211;NRE210..HI;MZEA11..HI,MID202211-202304

main88650-12K90iNRE210..ENTRY201908-202101

88897MGROMMET (FOR HEATER PIPE)

main87128-F4060iMZEA17,ZWE219201908-202304

88899LPARTS, COOLING UNIT

main88899-02400iZWE211201908-202304

main88899-F4330iMZEA11201908-202304

88899MPLATE, COVER(FOR AIR FILTER)

main88899-0E060iNRE210..ENTRY,MID202305

main88899-F4290iNRE210..HI201908-202305

8719387101

main87193-87101

9009900968

main90099-00968

9009904542

main90099-04542

90119C0074

main90119-C0074

90159C0005

main90159-C0005

90159C0008

main90159-C0008

90182C0007

main90182-C0007

28 parts on this diagram · 7 diagrams in section
