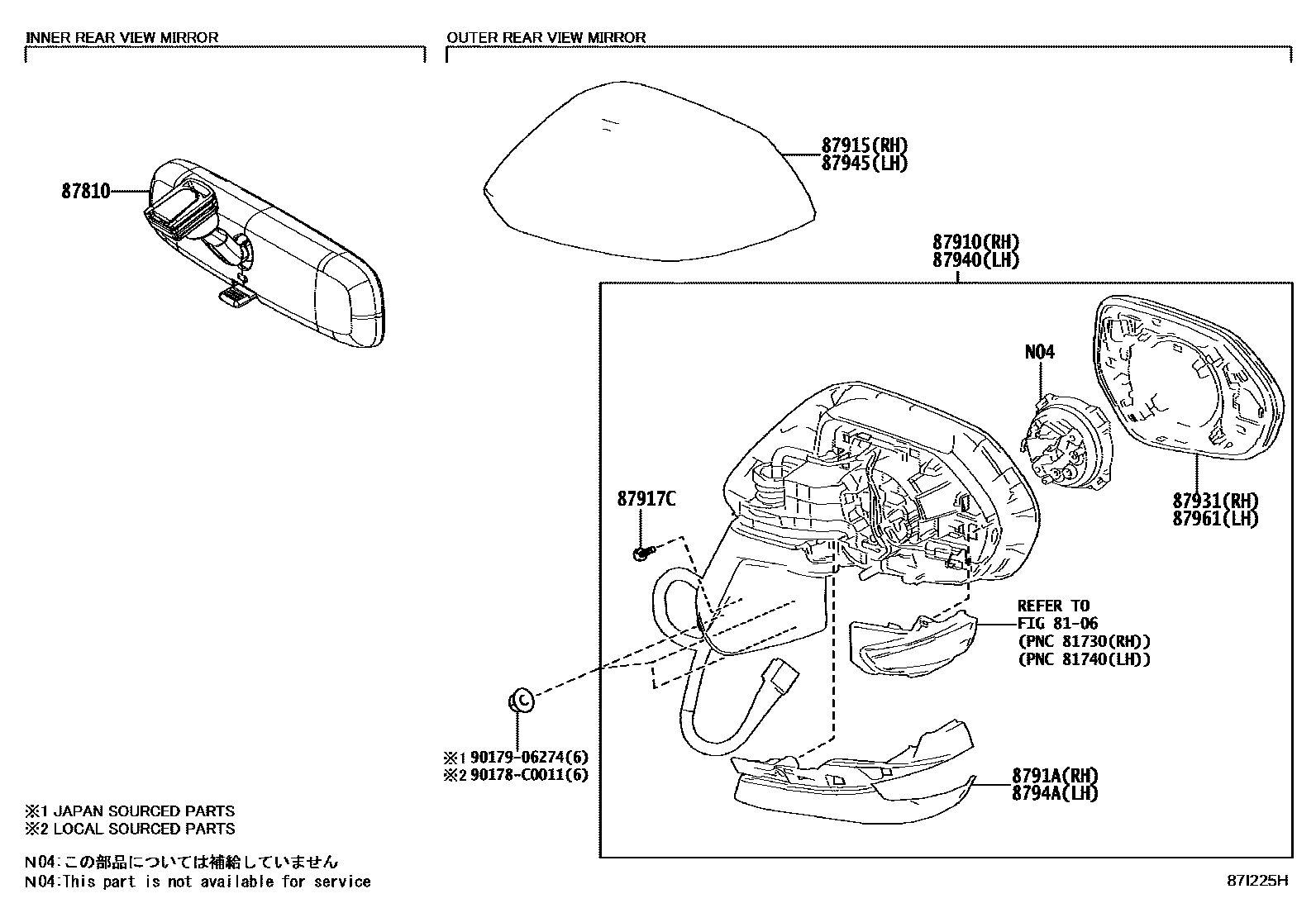

MIRROR

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-07160iNRE210..HI201908-202102

main87810-07160iNRE210..HI;MZEA11,ZWE211202102-202405

MADE IN THAILAND

main87810-07180iMZEA17,ZWE219202305

main87810-07180iNRE210..ENTRY,MID202102-202405

MADE IN CHINA

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-02P80iMZEA11,ZWE211201908-202305

NO PAINT REQ.

sub87910-02R30

main87910-02R30iNRE210..ENTRY,MID202305-202411

NO PAINT REQ.

sub87910-02R31

main87910-02R31iMZEA17,ZWE219202412

NO PAINT REQ.

87915COVER, OUTER MIRROR, RH

main87915-02620iNRE210..MID202101-202305

NO PAINT REQ.,SPORT PACKAGE

main87915-02935iMZEA11,ZWE211201908-202304

PAINT REQ.

87917CSCREW, OUTER MIRROR

main87917-02P80iMZEA11,ZWE211201908-202304

8791ACOVER, OUTER MIRROR, RH NO.2

main8791A-02P80iNRE210..HI201908-202305

main8791A-02R30iNRE210..ENTRY,MID202305

87931OUTER MIRROR, RH

main87902-02190iNRE210..HI201908-202304

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-02P70iNRE210..ENTRY,MID201908-202305

NO PAINT REQ.

sub87940-02R40

main87940-02R40iNRE210..ENTRY,MID202305-202411

NO PAINT REQ.

sub87940-02R41

main87940-02R41iNRE210..ENTRY,MID202412

NO PAINT REQ.

87945COVER, OUTER MIRROR, LH

main87945-02620iNRE210..MID202101-202305

NO PAINT REQ.,SPORT PACKAGE

main87945-02935iMZEA11,ZWE211201908-202304

PAINT REQ.

8794ACOVER, OUTER MIRROR, LH NO.2

main8794A-02P70iNRE210..ENTRY,MID201908-202305

main8794A-02R40iNRE210..ENTRY,MID202305

87961MIRROR OUTER, LH

main87907-02180iNRE210..HI201908-202304

90178C0011

main90178-C0011

9017906274

main90179-06274

13 parts on this diagram · 1 diagram in section
