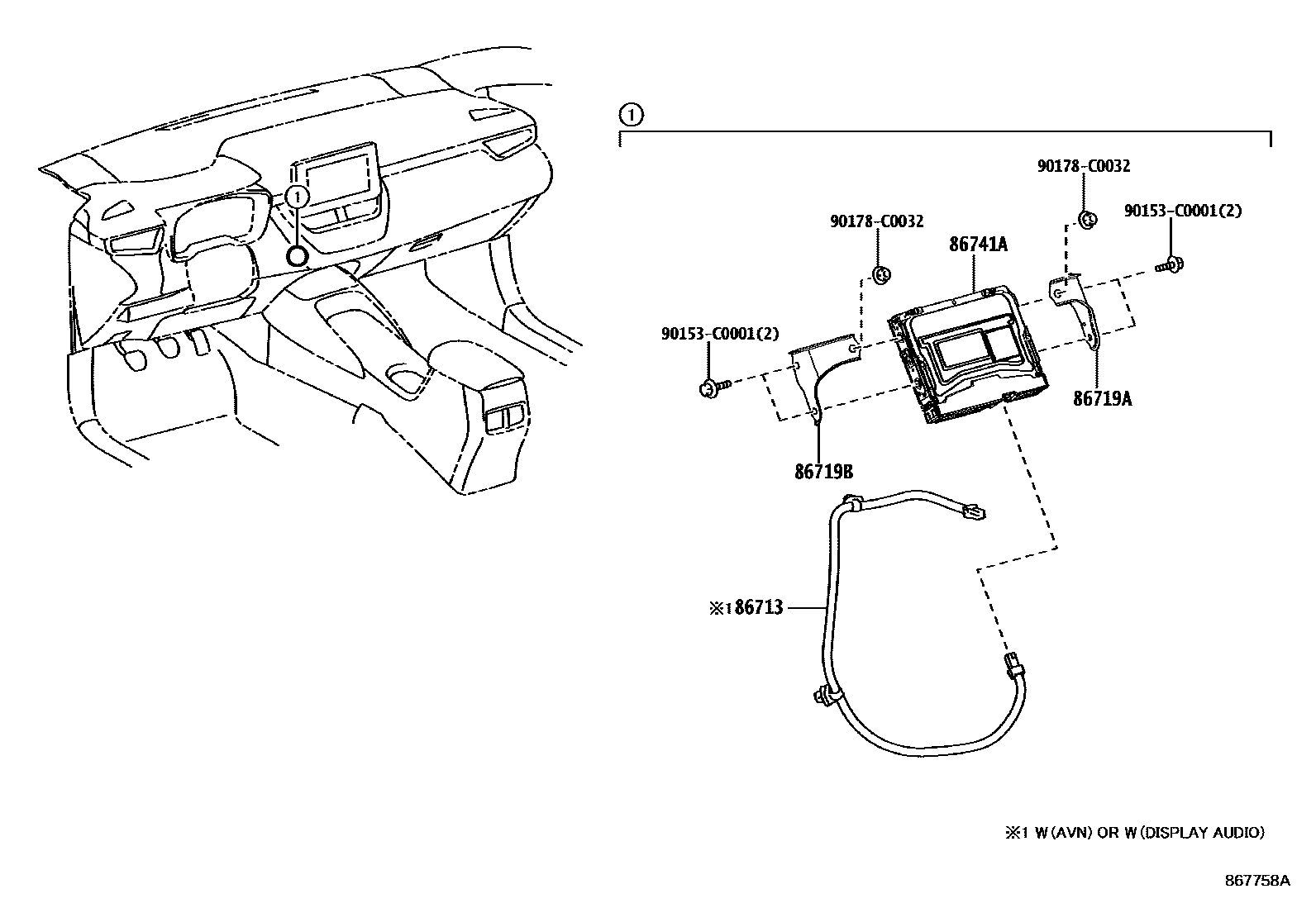

TELEPHONE & MAYDAY

0001 1 0003 1

86713WIRE, TELEPHONE COMPUTER

main86713-02040iMZEA11,ZWE211..HI201908-202304

main86713-02050iNRE210..MID202007-202305

main86713-02090iMZEA11,ZWE211..MID202211-202305

AUDIO-RADIO & 2SPEAKER

main86713-02090iNRE210..MID202305

main86713-02130iMZEA17,ZWE219202305

86719ABRACKET, TELEPHONE NO.1

main86719-02120iNRE210..ENTRY,MID201908-202304

86719BBRACKET, TELEPHONE NO.2

main86719-02130iNRE210..HI201908-202304

86741ATRANSCEIVER, TELEMATICS

main86741-02051iNRE210,ZWE211201908-202006

sub86741-02100

main86741-02100iMZEA11,NRE210..HI,MID202007-202111

SMART ENTRY-WITHOUT & WITH(PUSH START SWITCH)

main86741-02100iZWE211202007-202110

main86741-02230iMZEA17,ZWE219202305

main86741-06100iZWE211..HI,MID202110-202306

main86741-08020iNRE210..ENTRY202307

main86741-0A010iNRE210..MID202211-202305

AUDIO-RADIO & 2SPEAKER

main86741-0A010iNRE210..MID202305-202306

main86741-F4060iNRE210..MID202307

90153C0001

main90153-C0001

90178C0032

main90178-C0032

6 parts on this diagram · 2 diagrams in section
