83520GAGE ASSY,OIL PRESSURE SENDER

main83520-02010iNRE210..HI201908-202304

(L)

main83520-60060iNRE210..HI¥2,470201908-202304

(J)

84540SWITCH ASSY, NEUTRAL START

main84540-02020iNRE210..HI201908-202502

(L)

main84540-52070iNRE210..ENTRY,MID¥7,600201908-202502

(J)

main84540-K0010iMZEA11..CVT¥7,600202101-202304

main89451-42010iMZEA17¥5,900202306

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMZEA17¥2,410202101-202304

main89422-47010iNRE210..HI¥2,410201908-202304

89429FSENSOR, TEMPERATURE

main89429-02010iNRE210..HI201908-202304

(L)

main89429-12010iNRE210..HI¥3,380201908-202304

(J)

89439BRACKET, SENSOR

main15367-0Y020iNRE210..ENTRY,MID201908-202304

(L)

main15367-47010iNRE210..ENTRY,MID¥960202007-202404

(J)

89467BSENSOR, AIR FUEL RATIO

main89467-02120iNRE210..HI201908-202304

main89467-02230iZWE211201908-202304

main89467-02250iMZEA11202101-202304

main89467-02290iZWE219202305

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-02240iMZEA11202101-202304

main89467-02300iMZEA17202306

main89467-F4020iNRE210..HI201908-202304

89491SENSOR, ENGINE OIL LEVEL

main89491-28090iZWE211¥3,670202104-202201

sub89491-28091¥3,330

main89491-28091iZWE219¥3,330202202-202304

main89491-47011iZWE211¥3,670201908-202103

sub89491-28090¥3,670

main89491-50081iMZEA11¥3,670202101-202204

*665,*616

sub89491-50082¥3,330

main89491-50081iNRE210¥3,670201908-202201

*662

sub89491-50082¥3,330

main89491-50081iNRE210¥3,670202007-202204

*602

sub89491-50082¥3,330

main89491-50082iNRE210..HI¥3,330202205-202304

*665,*616

main89491-50082iNRE210..HI¥3,330202202-202304

*662

main89491-50082iNRE210..HI¥3,330202205-202404

*602

main89491-50082iMZEA17¥3,330202306

89615SENSOR, KNOCK CONTROL

main89615-02040iNRE210..HI201908-202304

(L)

main89615-20090iNRE210..ENTRY,MID¥2,370201908-202304

(J)

main89615-20090iMZEA17,ZWE219¥2,370201908-202304

827150Z720BRACKET,WIRING HARNESS CLAMP

main82715-0Z720

827150Z730BRACKET,WIRING HARNESS CLAMP

main82715-0Z730

82715F4330BRACKET,WIRING HARNESS CLAMP

main82715-F4330

8272920040

main82729-20040¥220

90105C0048

main90105-C0048

90105C0079

main90105-C0079

90119C0098

main90119-C0098

90119C0107

main90119-C0107

90119C0234

main90119-C0234

9043012221

main90430-12221¥200

9046814043

main90468-14043¥60

9046815007

main90468-15007¥80

9155180835

main91551-80835¥80

9165140620

main91651-40620¥70

9167180616

main91671-80616¥60

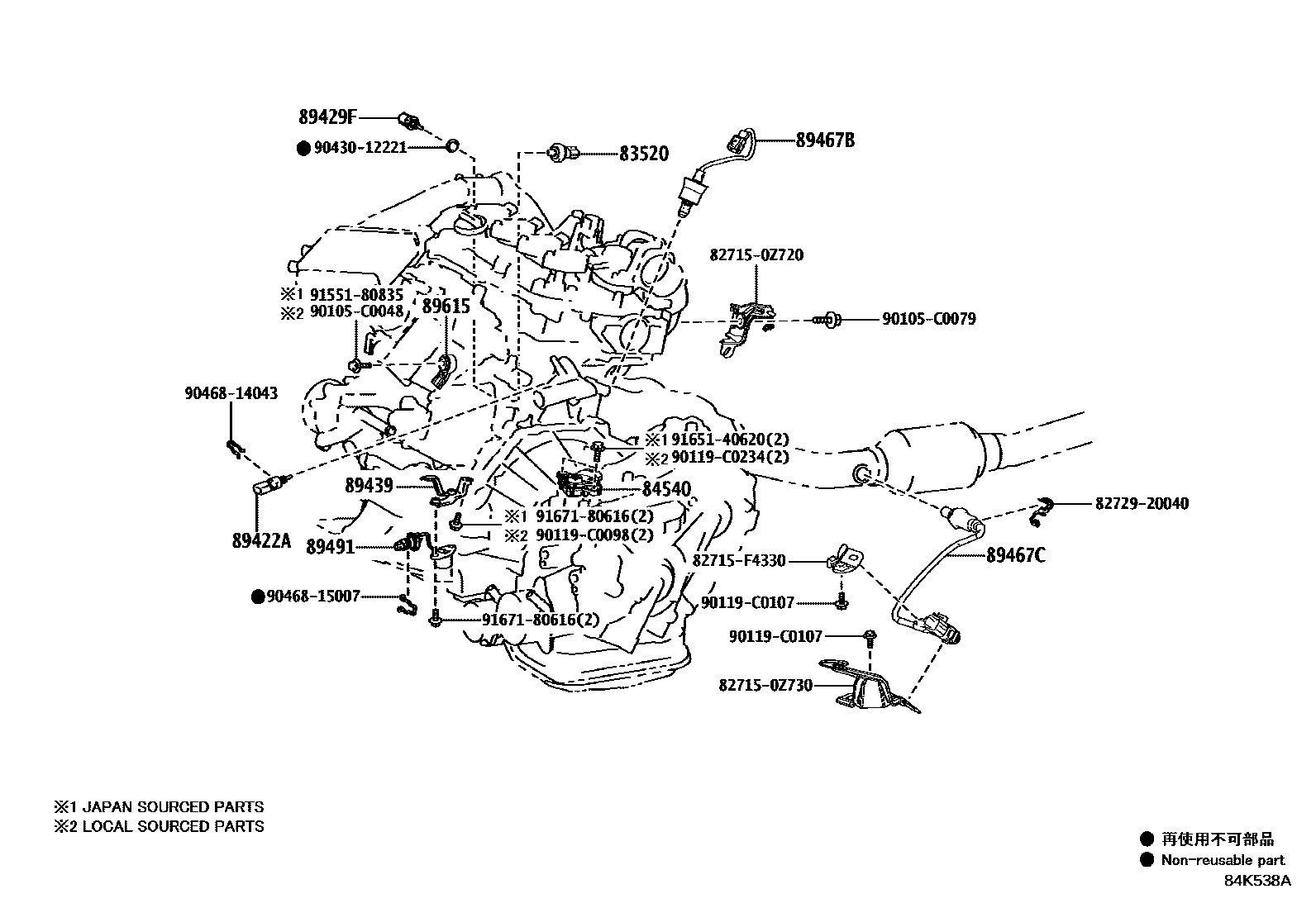

24 parts on this diagram · 17 diagrams in section
