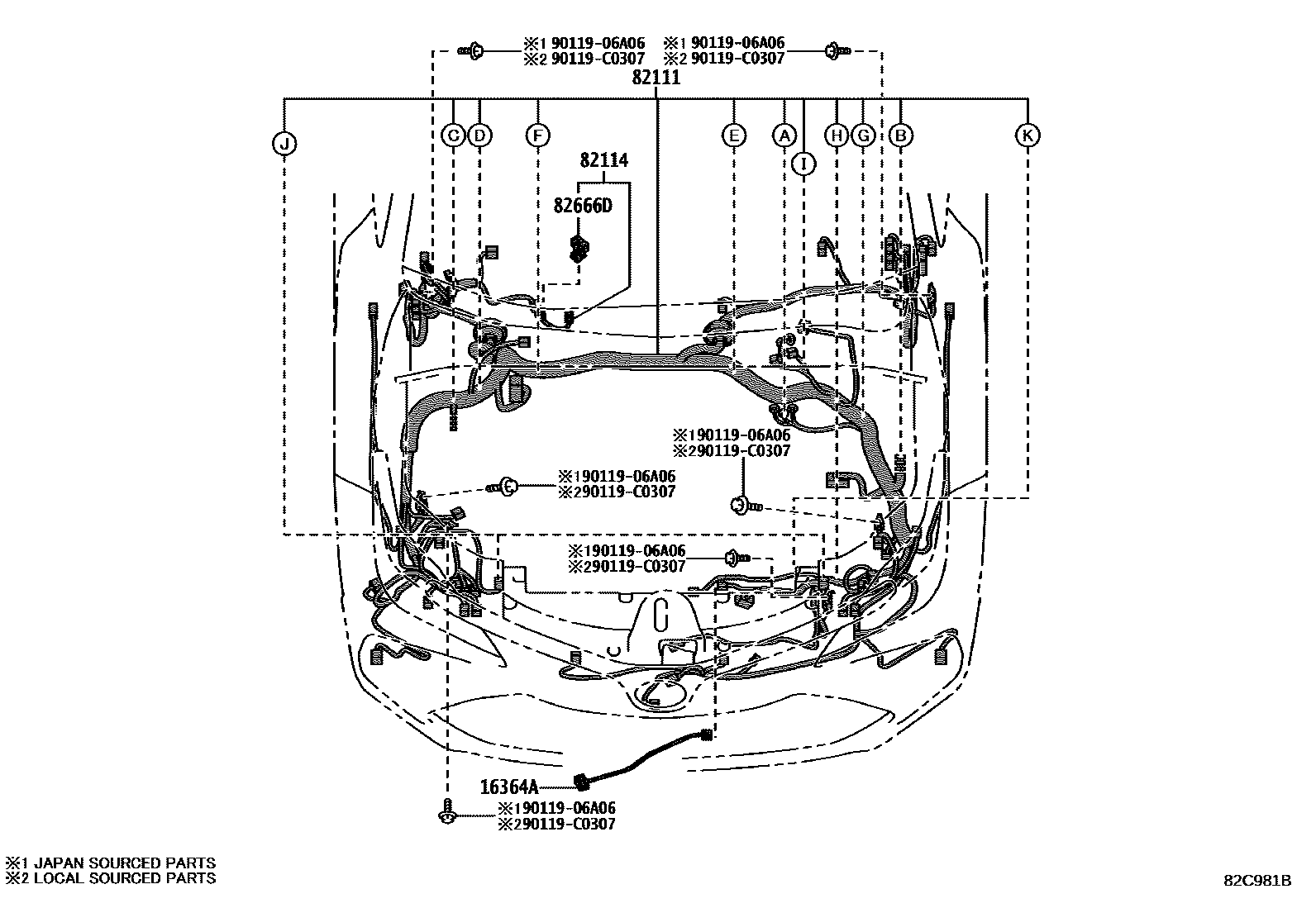

WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 2/2 0007 1ENGINE ROOM 1/2 0008 1ENGINE ROOM 2/2 0009 1ENGINE 1/2 0010 1ENGINE 2/2 0011 1ENGINE 1/2 0012 1ENGINE 2/2 0013 1ENGINE 1/2 0014 1ENGINE 2/2 0015 1ENGINE 1/2 0016 1ENGINE 2/2 0017 1ENGINE 1/2 0018 1ENGINE 2/2 0019 1INSTRUMENT PANEL 0020 1DOOR 0021 1FLOOR & ROOF 0022 1HIGH TENSION CABLE 0023 1HIGH TENSION CABLE 0024 1SEAT 0025 1CLAMP & BRACKET 0026 1CLAMP & BRACKET 0027 1CLAMP & BRACKET 0028 1CONNECTOR 1/2 0029 1CONNECTOR 2/2

16364AWIRE, COOLING FAN

main16364-0Y040i9NRFTS..NRE210..ENTRY,MID201908-202304

82111WIRE, ENGINE ROOM MAIN

main82111-F2180iZWE211..ENTRY201908-202004

sub82116-0ZW50

main82111-F2181iZWE211..ENTRY202007-202304

main82111-F2191iNRE210..ENTRY202007-202111

main82111-F2192iNRE210..ENTRY202111-202305

main82111-F2232iNRE210..ENTRY202305-202502

main82111-F2340iMZEA11..6F202101-202304

main82111-FE290iMZEA11..MID202111-202304

HEADLAMP-LED & WITH(*AHB)

main82111-FEM50iZWE219..ENTRY202305

main82111-FEM60iZWE219..MID202305

main82111-FEM70iMZEA17..MID202306

main82111-FEM80iMZEA17..ENTRY202306

main82115-F2620iNRE210..HI201908-202006

main82115-F2621iNRE210..MID202007-202111

HEADLAMP-LED

main82115-F2622iNRE210..HI202111-202304

main82115-F2623iNRE210..MID202305-202502

main82115-F2630iNRE210..MID201908-202007

main82115-F2631iNRE210..MID202007-202111

main82115-F2632iNRE210..MID202111-202305

main82115-F2640iMZEA11..MID202101-202304

main82115-F2670iZWE211..HI201908-202004

sub82116-0ZX50

main82115-F2671iZWE211..HI202007-202304

HEADLAMP-LED

main82115-F2680iNRE210..ENTRY201908-202007

main82115-F2B30iMZEA11..HI202101-202111

HEADLAMP-LED

main82115-F2B50iZWE211..MID201908-202004

sub82116-0ZX60

main82115-F2B51iZWE211..MID202007-202304

main82115-F2K50iMZEA11..CVT..ENTRY202101-202304

main82115-F2X90iZWE219..HI202305

main82115-F2Y20iMZEA17..MID202306

SPORT PACKAGE

main82116-0ZW50iZWE211..ENTRY202004-202007

main82116-0ZX50iZWE211..HI202004-202007

main82116-0ZX60iZWE211..MID202004-202007

82114WIRE, ENGINE ROOM, NO.4

main82114-02080iMZEA11..ENTRY201908-202304

82666DHOLDER, CONNECTOR NO.5

main82666-42020iMZEA11..ENTRY201908-202304

9011906A06

main90119-06A06

90119C0307

main90119-C0307

6 parts on this diagram · 29 diagrams in section
