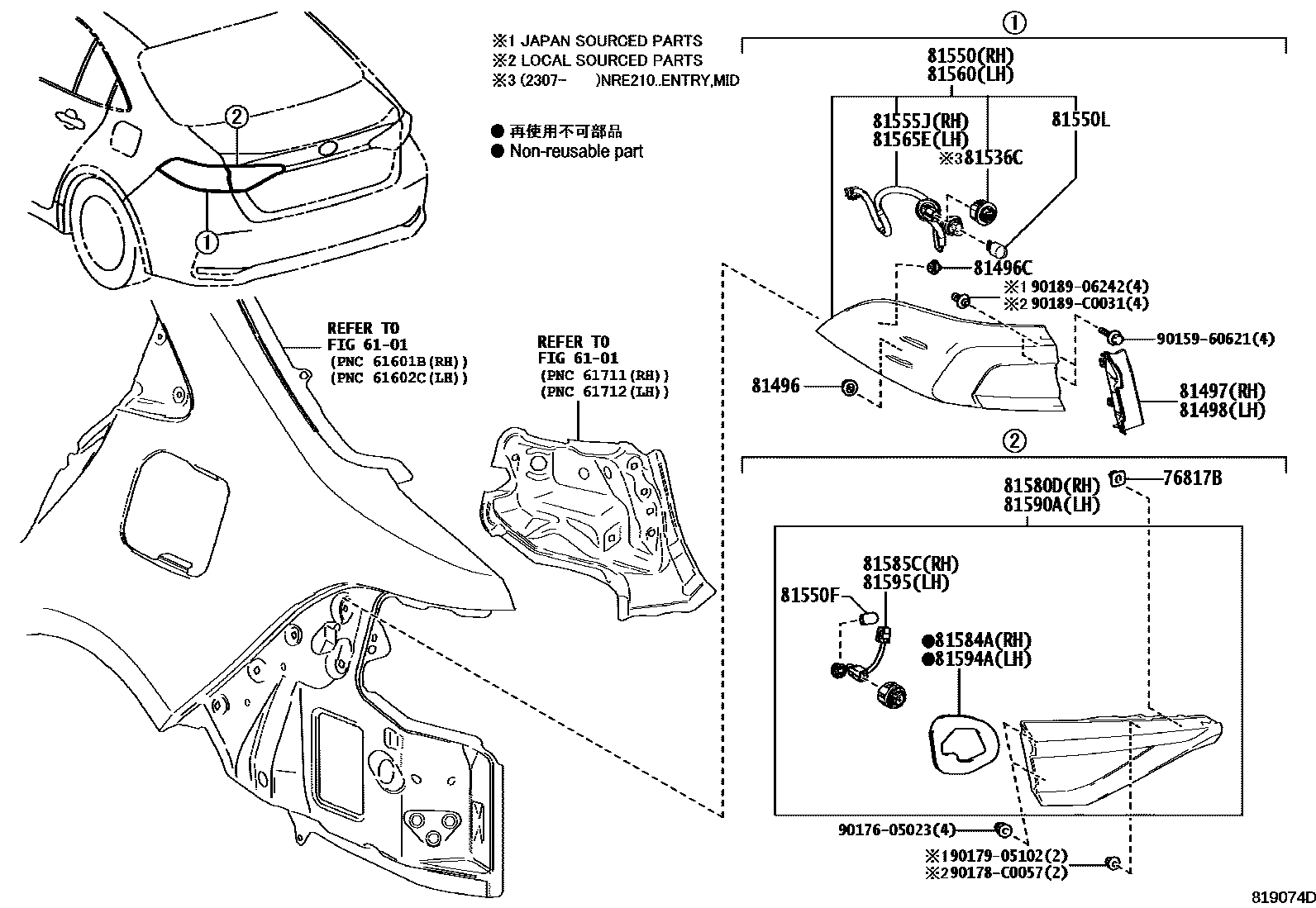

REAR COMBINATION LAMP

0001 1BULB TYPE(TAIL LAMP & TURN LA0002 1LED TYPE(TAIL LAMP & TURN LAM0003 1 0004 1

6101

76817BCLIP, REAR LAMP

main76817-26040iNRE210..ENTRY,MID202201-202304

(J)

main76817-26040iNRE210..HI201908-202201

main90467-C0083iMZEA17,ZWE219202201-202304

(L)

81496GUIDE, REAR COMBINATION LAMP

main81496-02020iMZEA11,ZWE211201908-202304

(L)

main81496-52020iMZEA17,ZWE219201908-202304

(J)

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iMZEA17,ZWE219202305

(J)

main90467-C0019iMZEA17,ZWE219201908-202304

(L)

main90467-C0019iNRE210..HI201908-202305

81497COVER, REAR COMBINATION LAMP, RH

main81497-02110iNRE210..HI201908-202304

81498COVER, REAR COMBINATION LAMP, LH

main81498-02110iNRE210..HI201908-202304

81536CLED, TAIL & STOP LAMP

main81965-02010iNRE210..ENTRY,MID202305

81550LAMP ASSY, REAR COMBINATION, RH

main81550-02E00iNRE210..HI201908-202305

main81550-02E10iZWE211201908-202103

main81550-02E11iZWE211202103-202206

main81550-02F60iMZEA17202305

main81550-02F71iZWE219202206-202304

main81550-YK040iMZEA11..MID202110-202205

GR SPORT

main81550-YK041iMZEA11..MID202205-202304

GR SPORT

81550FBULB, TAILLAMP

main90981-CB001iNRE210..HI201908-202304

12V 5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-CB004iNRE210..HI201908-202304

12V 21W

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-02E00iNRE210..HI201908-202305

main81555-02F60iNRE210..ENTRY,MID202305

81560LAMP ASSY, REAR COMBINATION, LH

main81560-02E00iNRE210..ENTRY,MID201908-202305

main81560-02E10iZWE211201908-202103

main81560-02E11iZWE211202103-202206

main81560-02F60iMZEA17202305

main81560-02F71iZWE219202206-202304

main81560-YK040iMZEA11..MID202110-202205

GR SPORT

main81560-YK041iMZEA11..MID202205-202304

GR SPORT

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81565-02E00iNRE210..HI201908-202305

main81565-02F60iNRE210..ENTRY,MID202305

81580DLAMP ASSY, REAR, RH

main81580-02D50iNRE210201908-201912

main81580-02D51iMZEA11;NRE210..ENTRY,MID201912-202102

sub81580-02D52

main81580-02D52iNRE210..ENTRY,MID202103-202305

main81580-02D60iZWE211201908-201912

main81580-02D61iZWE211201912-202103

sub81580-02D62

main81580-02D62iZWE211202104-202206

main81580-02F10iMZEA17202305

main81580-02F21iZWE219202206-202304

main81580-YK040iMZEA11..MID202110-202205

GR SPORT

main81580-YK041iMZEA11..MID202205-202304

GR SPORT

81584AGASKET, REAR LAMP RH

main81584-02D50iMZEA17,ZWE219201908-202305

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-02D50iNRE210..HI201908-202103

main81585-02E40iNRE210..ENTRY,MID202103-202305

81590ALAMP ASSY, REAR, LH

main81590-02D50iNRE210201908-201912

main81590-02D51iNRE210..HI201912-202102

sub81590-02D52

main81590-02D52iMZEA11;NRE210..HI202103-202305

main81590-02D60iZWE211201908-201912

main81590-02D61iZWE211201912-202103

sub81590-02D62

main81590-02D62iZWE211202104-202206

main81590-02F10iMZEA17202305

main81590-02F21iZWE211202206-202304

main81590-YK040iMZEA11..MID202110-202205

GR SPORT

main81590-YK041iMZEA11..MID202205-202304

GR SPORT

81594AGASKET, REAR LAMP LH

main81584-02D50iMZEA17,ZWE219202103-202305

main81594-02D50iZWE211201908-202104

81595SOCKET & WIRE, REAR LAMP, LH

main81595-02D50iNRE210..HI201908-202103

main81595-02E40iMZEA11;NRE210..HI202103-202305

9015960621

main90159-60621

9017605023

main90176-05023

90178C0057

main90178-C0057

9017905102

main90179-05102

9018906242

main90189-06242

90189C0031

main90189-C0031

25 parts on this diagram · 4 diagrams in section
