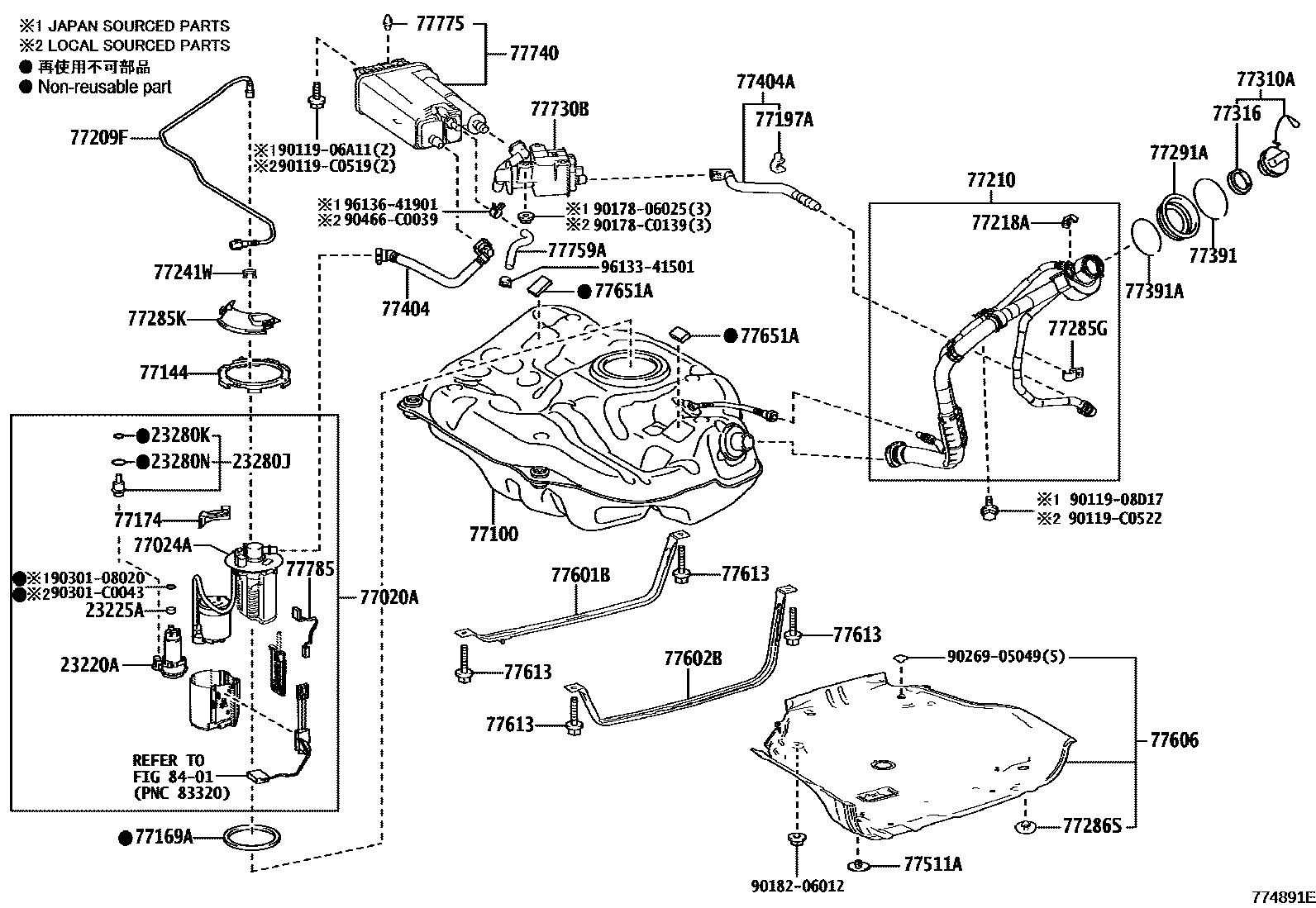

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK, CHINA 6 0003 1FUEL TANK 0004 1FUEL TANK, CHINA 6 0005 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TANK 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL TUBE 0011 1FUEL TUBE 0012 1FUEL TUBE 0013 1FUEL LID OPENER(CABLE TYPE) 0014 1FUEL LID OPENER(ELECTRIC TYPE

23220APUMP ASSY, FUEL W/FILTER

main23220-0Y140i9NRFTS..NRE210..HI201908-202304

23225ASPACER, FUEL PUMP

main23225-0H020i9NRFTS..NRE210..HI201908-202304

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i8ZRFXE..ZWE211¥6,000201908-202304

main23280-36020i9NRFTS..NRE210..ENTRY,MID¥6,000201908-202304

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i9NRFTS..NRE210..HI¥140201908-202304

23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2

main90301-15024i9NRFTS..NRE210..HI¥140201908-202304

main90301-15024iM15..MZEA17¥140202306

TYPE A:REFER ILLUST.

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-02C30iNRE210..ENTRY,MID201908-202402

sub77020-02C32

main77020-02C31iNRE210202111-202112

sub77020-02C30

main77020-02C32iNRE210..ENTRY,MID202403

main77020-02C40iZWE219201908-202304

main77020-0A150iMZEA17202306

main77020-F4080iMZEA11202101-202304

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-02610iNRE210..HI201908-202304

main77024-02611iNRE210202111-202112

sub77024-02610

main77024-02650iZWE211201908-202304

main77024-0A040iMZEA17202306

main77024-F4090iMZEA11202101-202304

77100TANK ASSY, FUEL

main77001-02B70iZWE211201908-202304

main77001-02C30iZWE219202305

main77001-02C40iMZEA17202306

main77001-F4070iNRE210..HI201908-202304

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMZEA17¥1,270202306

main77144-F4020iNRE210..ENTRY,MID201908-202304

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K030iNRE210,ZWE211¥700202010-202012

(L)

main77169-47030iMZEA11¥220202101-202304

main77169-47030iZWE211;NRE210..HI¥220202010-202403

(J)

main77169-F4050iNRE210..HI201908-202009

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0F010iNRE210..HI201908-202304

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-07010iNRE210..ENTRY,MID202204-202304

(L)

main77197-47010iNRE210..HI¥380201908-202204

main77197-47010iNRE210..HI;MZEA11,ZWE211¥380202204-202304

(J)

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02400iZWE211201908-202304

main77209-02401iZWE219202305

main77209-0A140iMZEA17202306

main77209-F4080iNRE210..HI201908-202304

77210PIPE ASSY, FUEL TANK FILLER

main77210-02870iNRE210,ZWE211201908-201911

sub77210-02872

main77210-02872iNRE210..HI201911-202304

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-02140iNRE210..HI201911-202304

77241WCLIP, TUBE JOINT

main77241-02020iZWE211202010-202304

main77241-33011iMZEA17¥80201908-202009

77285GCLAMP, FUEL TUBE, NO.1

main77285-06580iMZEA11,ZWE211201908-202304

77285KCLAMP, FUEL TUBE, NO.1

main77285-02230iMZEA11;NRE210..HI202010-202304

main77285-0R310iZWE211202010-202304

main77285-10060iNRE210..HI¥1,670201908-202009

main77285-30350iMZEA17¥200201908-202010

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iNRE210..ENTRY,MID¥200202006-202304

(J)

main77286-12110iNRE210¥200201908-202006

main77286-F4040iNRE210..HI202006-202304

(L)

main77286-F4040iZWE219202305

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02340iNRE210,ZWE211201908-202006

sub77291-02341

main77291-02341iNRE210..HI;MZEA11,ZWE211202007-202304

77310ACAP ASSY, FUEL TANK

main77300-06100iNRE210..ENTRY,MID201908-202104

main77300-06110iZWE211202109-202304

main77300-0R010iNRE210..HI202101-202304

main77300-11010iZWE211202007-202108

77316GASKET, FUEL TANK CAP

main77316-0F020iMZEA11202101-202304

main77316-75020iNRE210..HI¥200201908-202304

77391RING, FUEL INLET BOX

main77391-02160iMZEA11,ZWE211201908-202304

77391ARING, FUEL INLET BOX

main77391-0R030iMZEA17,ZWE219201908-202304

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-02390iZWE211202012-202304

main77404-02440iZWE219202305

main77404-02450iMZEA17202306

main77404-12090iZWE211201908-202011

main77404-F4070iNRE210..ENTRY,MID201908-202304

77404AHOSE SUB-ASSY, FUEL TANK VENT

main77404-02290iZWE219201908-202304

main77404-F4100iNRE210..ENTRY,MID201908-202304

77511ABRACKET, FUEL TANK

main77512-07010iMZEA11,ZWE211201908-202304

(L)

main77512-07010iMZEA17202306

main77512-35140iNRE210..HI¥230201908-202304

(J)

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-F4040iNRE210..HI201908-202304

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-F4040iMZEA11201908-202304

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-02210iMZEA17202306

main77606-02240iZWE211202006-202304

main77606-47030iZWE211¥11,100201908-202005

main77606-F4050iNRE210..ENTRY,MID201908-202304

77613BOLT, FUEL TANK BAND SET

main90119-10995iNRE210..HI¥190201908-202304

(J)

main90119-C0526iNRE210..ENTRY,MID201908-202304

(L)

77651ACUSHION, FUEL TANK, NO.1

main77651-F4020iNRE210..HI201908-202304

77730BCANISTER ASSY, CHARCOAL W/OUTLET HOSE

main77730-02030iMZEA11;NRE210..HI202007-202304

main77730-F4020iNRE210..ENTRY,MID201908-202007

77740CANISTER ASSY, CHARCOAL

main77740-02260iZWE211202007-202304

main77740-02280iZWE211201908-202007

main77740-F4020iMZEA11201908-202304

77759AHOSE, CHARCOAL CANISTER

main77759-12120iZWE211201908-202304

main77759-F4040iNRE210..ENTRY,MID201908-202304

77775GUIDE, CHARCOAL CANISTER OUTLET

main77775-33010iNRE210..HI201908-202304

77785HARNESS, FUEL PUMP

main77785-02170iNRE210..HI201908-202304

main77785-06190iMZEA11202101-202304

main77785-0A010iMZEA17202306

(L)

main77785-0F031iZWE219201908-202304

main77785-52120iMZEA17¥870202306

(J)

8401

9011906A11

main90119-06A11¥60

9011908D17

main90119-08D17¥100

90119C0519

main90119-C0519

90119C0522

main90119-C0522

9017806025

main90178-06025¥80

90178C0139

main90178-C0139

9018206012

main90182-06012¥60

9026905049

main90269-05049¥40

9030108020

main90301-08020¥250

90301C0043

main90301-C0043

90466C0039

main90466-C0039

9613341501

main96133-41501¥90

9613641901

main96136-41901¥120
