SEAT BELT & CHILD RESTRAINT SEAT

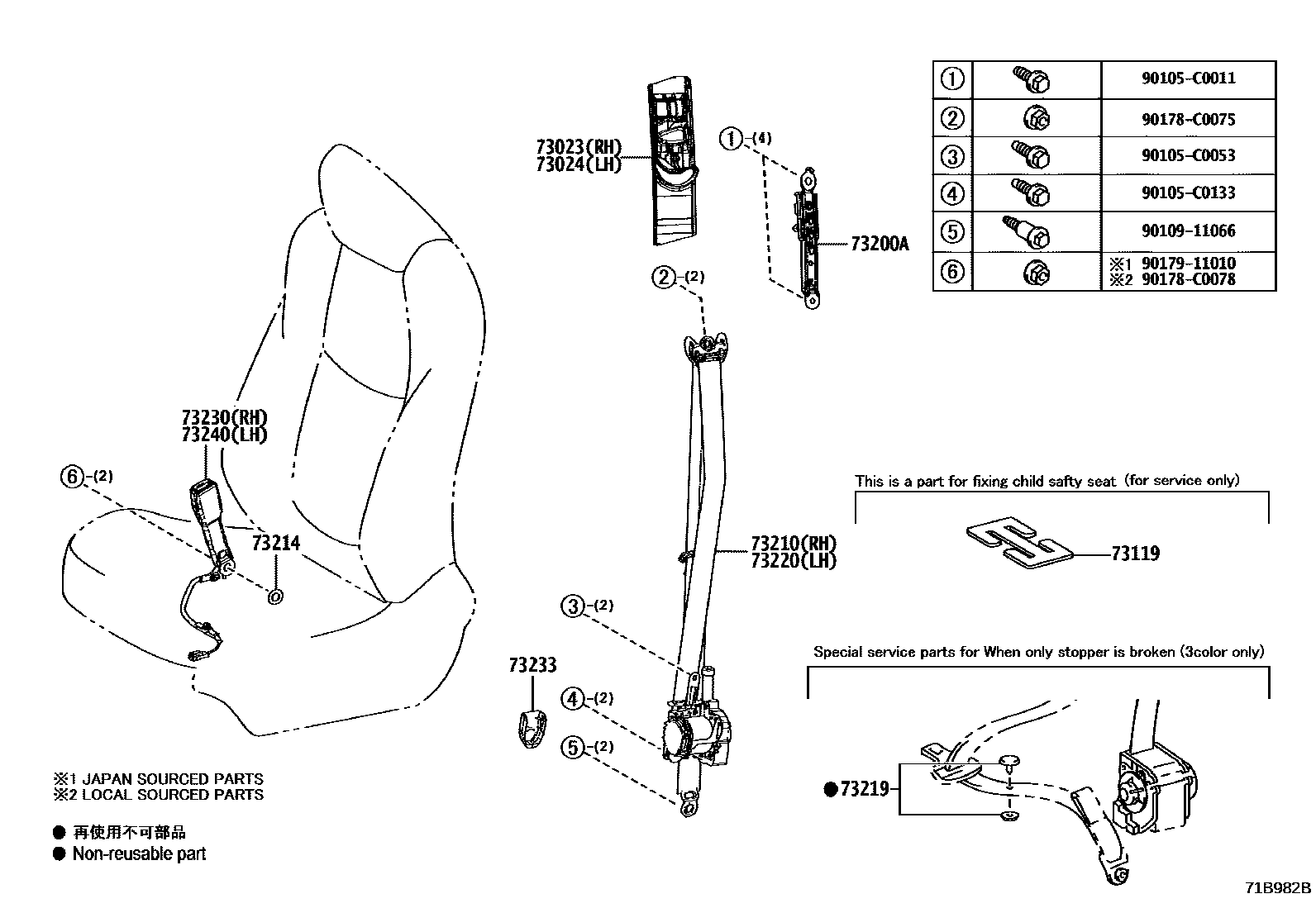

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02160-C0iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main73023-02160-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main73023-02160-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02160-C0iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main73024-02160-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main73024-02160-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iNRE210..HI201908-202304

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0G020iMZEA11,ZWE211201908-202304

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02710-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main73210-02710-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

main73210-02760-C2iNRE210..HI201908-202502

BLACK,TRIM0#,2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iNRE210..HI;MZEA11,ZWE211201908-202304

73219STOPPER, TONGUE PLATE

main73219-33010iMZEA11,ZWE211201908-202304

BLACK

main73219-33020iMZEA11,ZWE211201908-202304

GRAY

main73219-33030iMZEA11,ZWE211201908-202304

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02680-C2iNRE210..HI201908-202502

BLACK,TRIM0#,2#

main73220-02720-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main73220-02720-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02E90-C0iNRE210..HI201908-202502

BLACK,TRIM0#,2#

main73230-0A170-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main73230-0A170-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0R030-C1iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main73233-0R030-C1iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main73233-0R030-C1iMZEA17..ENTRY202306

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0A150-C0iMZEA17..HI,MID;ZWE219..ENTRY,MID202305

BLACK,TRIM2#,4#

main73230-0A150-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

main73230-0A160-C0iZWE219..HI202305

BLACK,TRIM2#,4#

main73240-02200-C0iZWE211..HI201908-202304

BLACK,TRIM0#,2#

main73240-02210-C0iNRE210..ENTRY,MID201908-202502

BLACK,TRIM0#,2#

90105C0011

main90105-C0011

90105C0053

main90105-C0053

90105C0133

main90105-C0133

9010911066

main90109-11066

90178C0075

main90178-C0075

90178C0078

main90178-C0078

9017911010

main90179-11010

18 parts on this diagram · 2 diagrams in section
