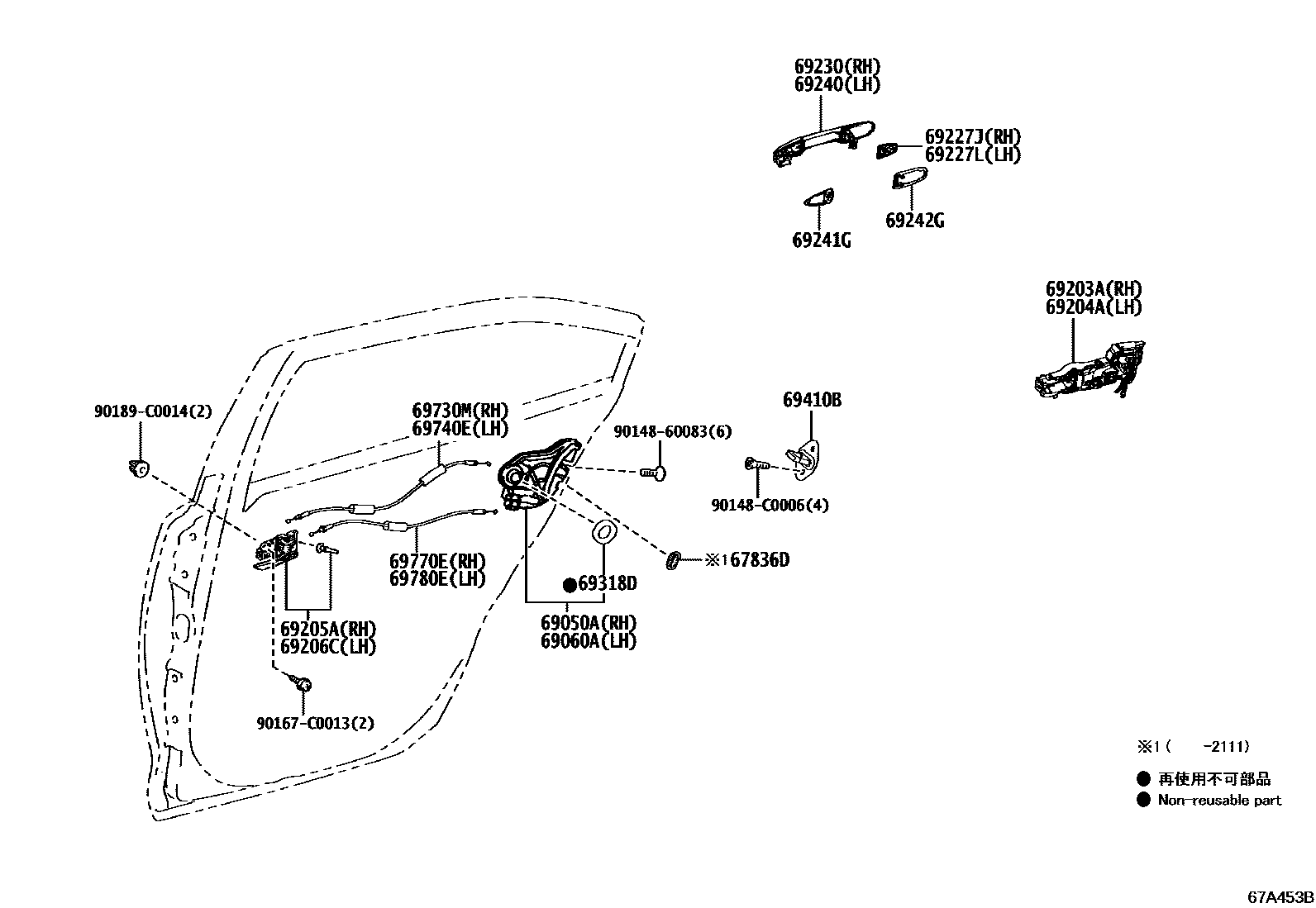

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
(L)
(J)
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
FROMAGE,TRIM0#
BLACK,TRIM2#
TAUPE,TRIM4#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
FROMAGE,TRIM0#
BLACK,TRIM2#
TAUPE,TRIM4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,070
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
CELESTITE GRAY ME.,1K3
SILVER ME.,1L0
BLACK MC.,209
SCARLET ME.,3U4
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
SILKY BEIGE ME.,4W1
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
CELESTITE GRAY ME.,1K3
SILVER ME.,1L0
BLACK MC.,209
SCARLET ME.,3U4
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
SILKY BEIGE ME.,4W1
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014860083
main90148-60083
90148C0006
main90148-C0006
90167C0013
main90167-C0013
90189C0014
main90189-C0014
23 parts on this diagram · 2 diagrams in section
