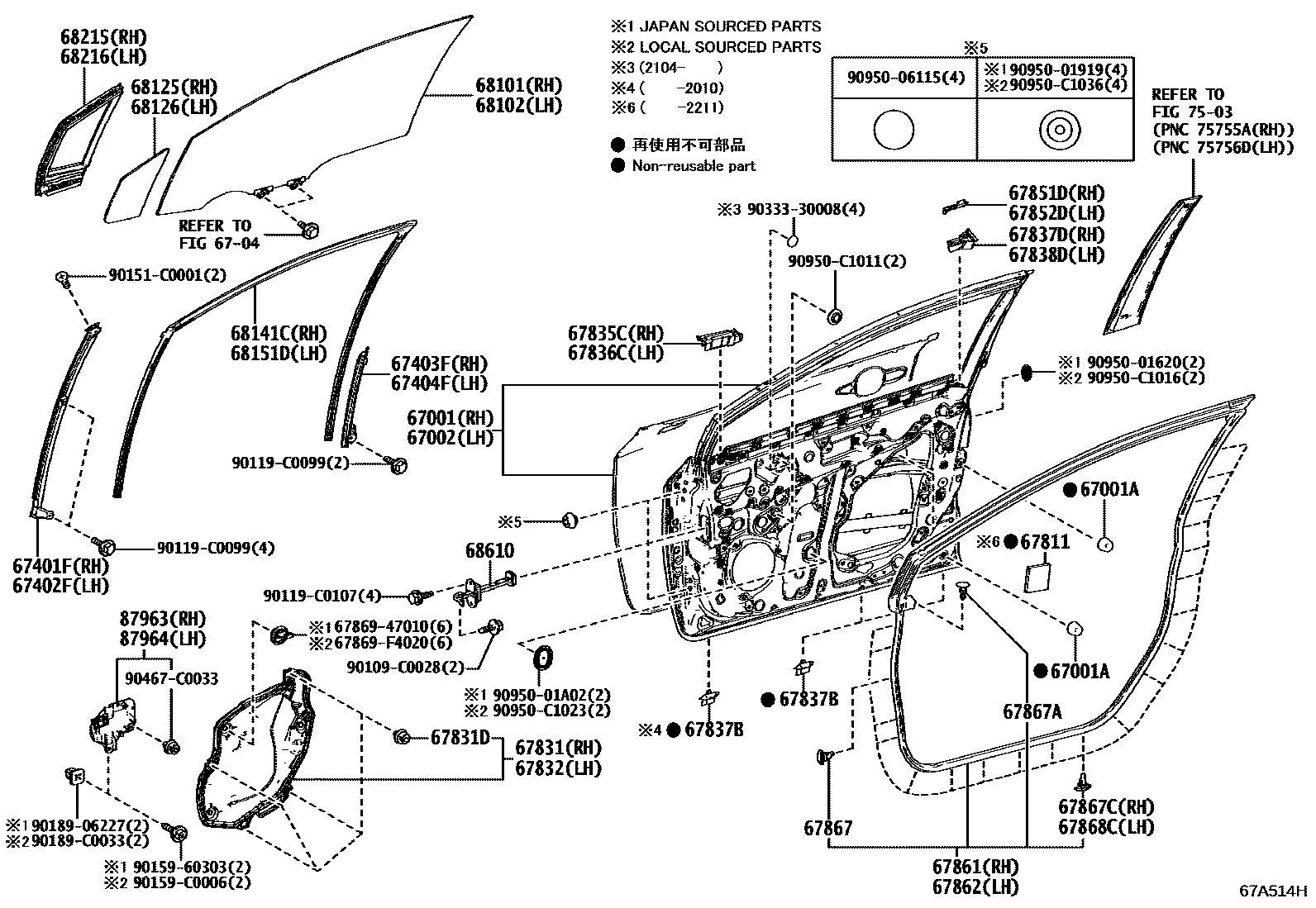

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-02620iNRE210..HI201908-202103

sub67001-02621

main67001-02621iMZEA11,NRE210,ZWE211202104-202304

main67001-02622iNRE210..ENTRY,MID202305-202511

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iNRE210..HI¥100201908-202304

(J)

main90541-C0003iNRE210..ENTRY,MID201908-202304

(L)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-02610iNRE210..HI201908-202103

sub67002-02611

main67002-02611iMZEA11,NRE210,ZWE211202104-202304

main67002-02612iNRE210..ENTRY,MID202305-202511

6704

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-02110iNRE210..HI201908-202304

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-02110iMZEA17,ZWE219201908-202304

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-02330iNRE210..ENTRY,MID201908-202304

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-02320iMZEA11,ZWE211201908-202304

67811PAD, FRONT DOOR SILENCER

main67811-02390iMZEA11,ZWE211;NRE210..ENTRY,MID201908-202211

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-02530iNRE210..HI201908-202304

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-C0033iNRE210..HI201908-202304

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-02530iNRE210..HI201908-202304

67835CCOVER, FRONT DOOR SERVICE HOLE, NO.3 RH

main67835-02090iNRE210..HI201908-202304

67836CCOVER, FRONT DOOR SERVICE HOLE, NO.3 LH

main67836-02150iNRE210..HI201908-202304

67837BSEAL, FRONT DOOR DUST PROOF

main67837-02150iNRE210..HI201908-202304

(L)

main67837-48050iMZEA17,ZWE219¥80201908-202304

(J)

67837DSEAL, FRONT DOOR VENT, RH

main67837-02200iMZEA11,ZWE211201908-202304

67838DSEAL, FRONT DOOR VENT, LH

main67838-02160iNRE210..HI201908-202304

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-02090iNRE210..HI201908-202304

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-02090iNRE210..HI201908-202304

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-02410iNRE210..HI201908-202304

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-02410iNRE210..HI201908-202304

67867CLIP, DOOR WEATHERSTRIP

main67867-52030iNRE210..HI¥100201908-202304

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30030iNRE210..HI¥190201908-202304

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iNRE210..HI¥100201908-202304

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iNRE210..HI¥100201908-202304

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-02650iNRE210..HI201908-202304

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-02650iNRE210..HI201908-202304

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-02090iNRE210..HI201908-202304

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-02090iNRE210..ENTRY,MID201908-202304

68141CRUN, FRONT DOOR GLASS, RH

main68141-02460iNRE210,ZWE211201908-201912

sub68141-02461

main68141-02461iMZEA11,ZWE211202001-202304

68151DRUN, FRONT DOOR GLASS, LH

main68151-02450iNRE210,ZWE211201908-201912

sub68151-02451

main68151-02451iNRE210..HI202001-202304

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-02090iNRE210..HI201908-202304

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-02090iNRE210..HI201908-202304

68610CHECK ASSY, FRONT DOOR

main68610-02420iMZEA11,ZWE211201908-202304

7503

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-02060iNRE210..HI201908-202304

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-02060iNRE210..HI201908-202304

6786947010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-47010¥140

67869F4020PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-F4020

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90151C0001

main90151-C0001

9015960303

main90159-60303¥70

90159C0006

main90159-C0006

9018906227

main90189-06227¥70

90189C0033

main90189-C0033

9033330008

main90333-30008¥70

90467C0033

main90467-C0033

9095001620

main90950-01620¥110

9095001919

main90950-01919¥100

9095001A02

main90950-01A02¥100

9095006115

main90950-06115¥110

90950C1011

main90950-C1011

90950C1016

main90950-C1016

90950C1023

main90950-C1023

90950C1036

main90950-C1036

57 parts on this diagram · 2 diagrams in section
