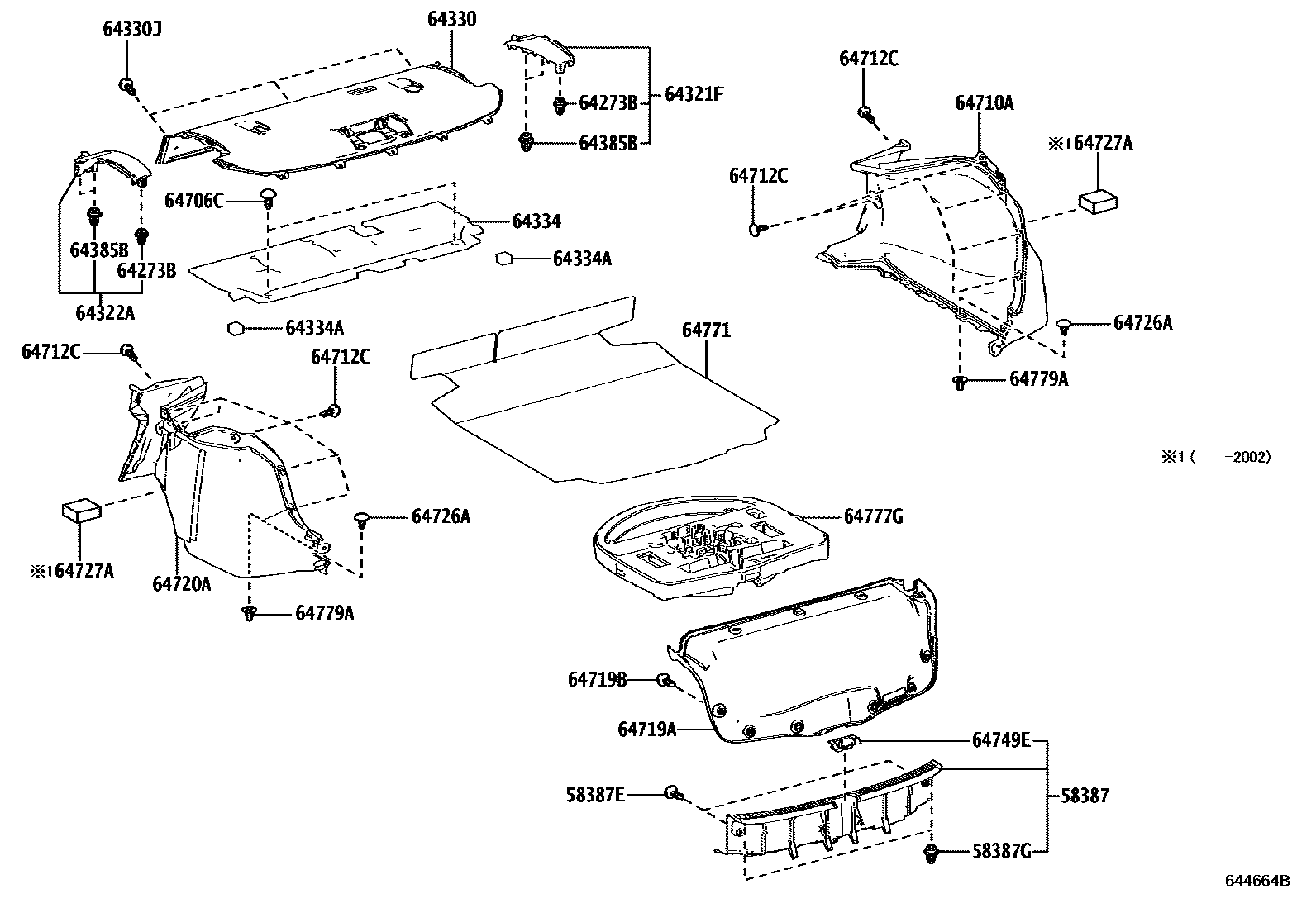

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58387PLATE, REAR FLOOR FINISH
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,4#
58387GCLIP(FOR REAR FLOOR FINISH PLATE)
64273BCLIP
64321FBRACKET, PACKAGE TRAY TRIM, RH
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
64322ABRACKET, PACKAGE TRAY TRIM, LH
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM0#,2#
LEATHER PACKAGE,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
BLACK,TRIM0#,2#
64334PAD, PACKAGE TRAY TRIM SILENCER
64334APAD, PACKAGE TRAY TRIM
64385BCLIP
64706CCLIP
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM0#,2#
LEATHER PACKAGE,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
BLACK,TRIM0#,2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
BLACK,TRIM0#,2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM0#,2#
LEATHER PACKAGE,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
64726ACLIP, LUGGAGE TRIM, REAR
(L)
BLACK,TRIM0#,2#,(J)
BLACK,TRIM2#,4#,(J)
BLACK,TRIM2#,(J)
64727APAD, LUGGAGE COMPARTMENT TRIM, INNER
64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
64771COVER, SPARE WHEEL
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#
LEATHER PACKAGE,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM2#,4#
64777GCUSHION, SPARE WHEEL
64779ASTOPPER, SPARE WHEEL COVER
(L)
(J)
23 parts on this diagram · 5 diagrams in section
