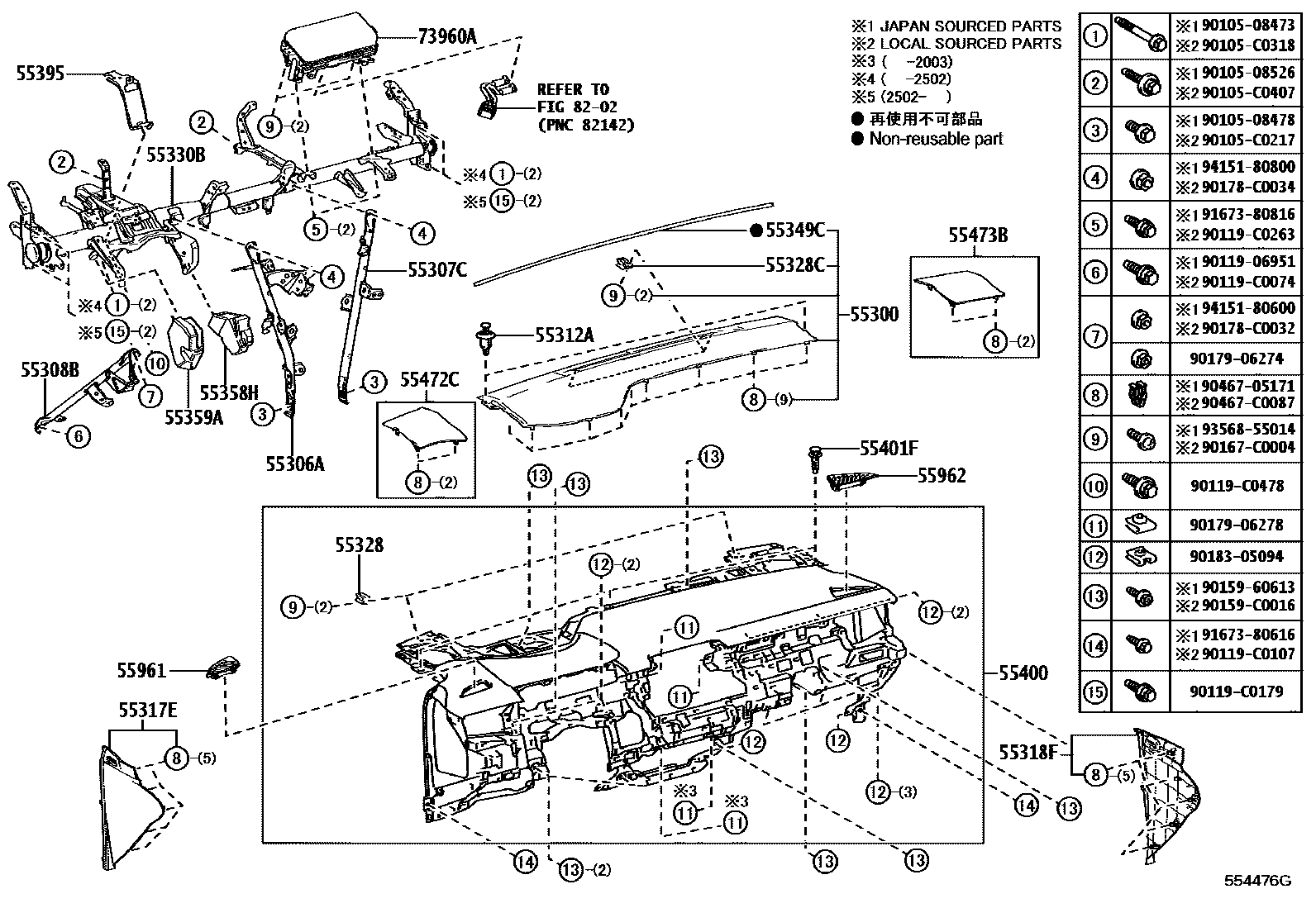

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1W/O(AVN(12.1INCH)) 0002 1DRIVER SIDE & W/O(AVN(12.1INC0003 1CENTER & W/O(AVN(12.1INCH)) 0004 1PASSENGER SIDE & W/O(AVN(12.10005 1W(AVN(12.1INCH)) 0006 1DRIVER SIDE & W(AVN(12.1INCH)0007 1CENTER & W(AVN(12.1INCH)) 0008 1PASSENGER SIDE & W(AVN(12.1IN0009 1 0010 1DRIVER SIDE 0011 1CENTER 0012 1PASSENGER SIDE

55300PANEL ASSY, INSTRUMENT, UPPER

main55300-02220-C0iNRE210..HI201908-202305

BLACK,TRIM0#,2#

main55300-02250-C0iNRE210..ENTRY,MID202305

BLACK,TRIM2#,4#

main55300-02250-C0iNRE210..ENTRY,MID202305

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-02510iMZEA17,ZWE219202305

main55306-02790iMZEA11,ZWE211201908-202502

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-02620iNRE210..HI201908-202502

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-02090iMZEA17,ZWE219202305

main55308-02270iNRE210..HI201908-202502

55312ACLIP, INSTRUMENT PANEL

main90467-07217iMZEA11,ZWE211¥80201908-202304

(J)

main90467-C0051iNRE210..HI201908-202304

(L)

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-02660-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#

main55317-02660-C0iNRE210..ENTRY,MID202305

BLACK,TRIM2#,4#

main55317-02790-C0iNRE210..ENTRY,MID201908-202305

BLACK,TRIM0#,2#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-02420-C0iNRE210..ENTRY,MID201908-202305

BLACK,TRIM0#,2#

main55318-02440-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#

main55318-02440-C0iNRE210..ENTRY,MID202305

BLACK,TRIM2#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-0E100iMZEA11,ZWE211201908-202304

55328CPIN, INSTRUMENT PANEL, NO.2

main55328-02800iNRE210..ENTRY,MID201908-202305

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-02710iMZEA17,ZWE219202305

main55330-02C20iMZEA11..6F202101-202304

main55330-02C30iNRE210..ENTRY,MID201908-202502

main55330-02D80iNRE210..HI201908-202304

55349CCUSHION, INSTRUMENT PANEL

main55349-02390iNRE210..ENTRY,MID201908-202305

55358HPROTECTOR, INSTRUMENT PANEL

main55358-02200iMZEA17,ZWE219202305

55359APROTECTOR, INSTRUMENT PANEL, NO.2

main55359-02150iMZEA17,ZWE219202305

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-02140iNRE210..ENTRY,MID201908-202304

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-02520-C1iMZEA17..MID;ZWE219..ENTRY,MID202305

SOFT BLACK,TRIM2#,4#

main55400-02520-C1iMZEA11,ZWE211..ENTRY,MID201908-202304

SOFT BLACK,TRIM0#,2#

main55400-02520-C1iMZEA17..ENTRY202306

SOFT BLACK,TRIM2#

main55400-02530-C2iMZEA17,ZWE219..HI202305

SOFT BLACK,TRIM2#,4#

main55400-02580-C0iNRE210..HI201908-202304

SOFT BLACK,TRIM0#,2#

55401FCLIP(FOR SAFETY PAD)

main52161-02040iMZEA17,ZWE219201908-202304

(L)

main52161-16010iNRE210..HI¥120201908-202304

(J)

sub52161-0K040¥120

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-02190-C0iNRE210..HI201908-202305

BLACK,TRIM0#,2#

main55472-02220-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main55472-02220-C0iMZEA17..ENTRY202305

BLACK,TRIM2#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-02170-C0iNRE210..HI201908-202305

BLACK,TRIM0#,2#

main55473-02210-C0iNRE210..ENTRY,MID202305

BLACK,TRIM2#

main55473-02210-C0iNRE210..ENTRY,MID202305

BLACK,TRIM2#,4#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-02340-C0iNRE210..HI201908-202304

BLACK,TRIM0#,2#

main55961-02340-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main55961-02340-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-02290-C0iMZEA11,ZWE211201908-202304

BLACK,TRIM0#,2#

main55962-02290-C0iZWE219;MZEA17..HI,MID202305

BLACK,TRIM2#,4#

main55962-02290-C0iMZEA17..ENTRY202306

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-02330iMZEA17,ZWE219202305

main73960-02470iNRE210..HI201908-202502

8202

9010508473

main90105-08473¥100

9010508478

main90105-08478¥80

9010508526

main90105-08526¥100

90105C0217

main90105-C0217

90105C0318

main90105-C0318

90105C0407

main90105-C0407

9011906951

main90119-06951¥80

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0179

main90119-C0179

90119C0263

main90119-C0263

90119C0478

main90119-C0478

9015960613

main90159-60613¥60

90159C0016

main90159-C0016

90167C0004

main90167-C0004

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9017906274

main90179-06274¥70

9017906278

main90179-06278¥100

9018305094

main90183-05094¥90

9046705171

main90467-05171¥60

90467C0087

main90467-C0087

9167380616

main91673-80616¥60

9167380816

main91673-80816¥80

9356855014

main93568-55014¥70

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

49 parts on this diagram · 12 diagrams in section
