FRONT FENDER APRON & DASH PANEL

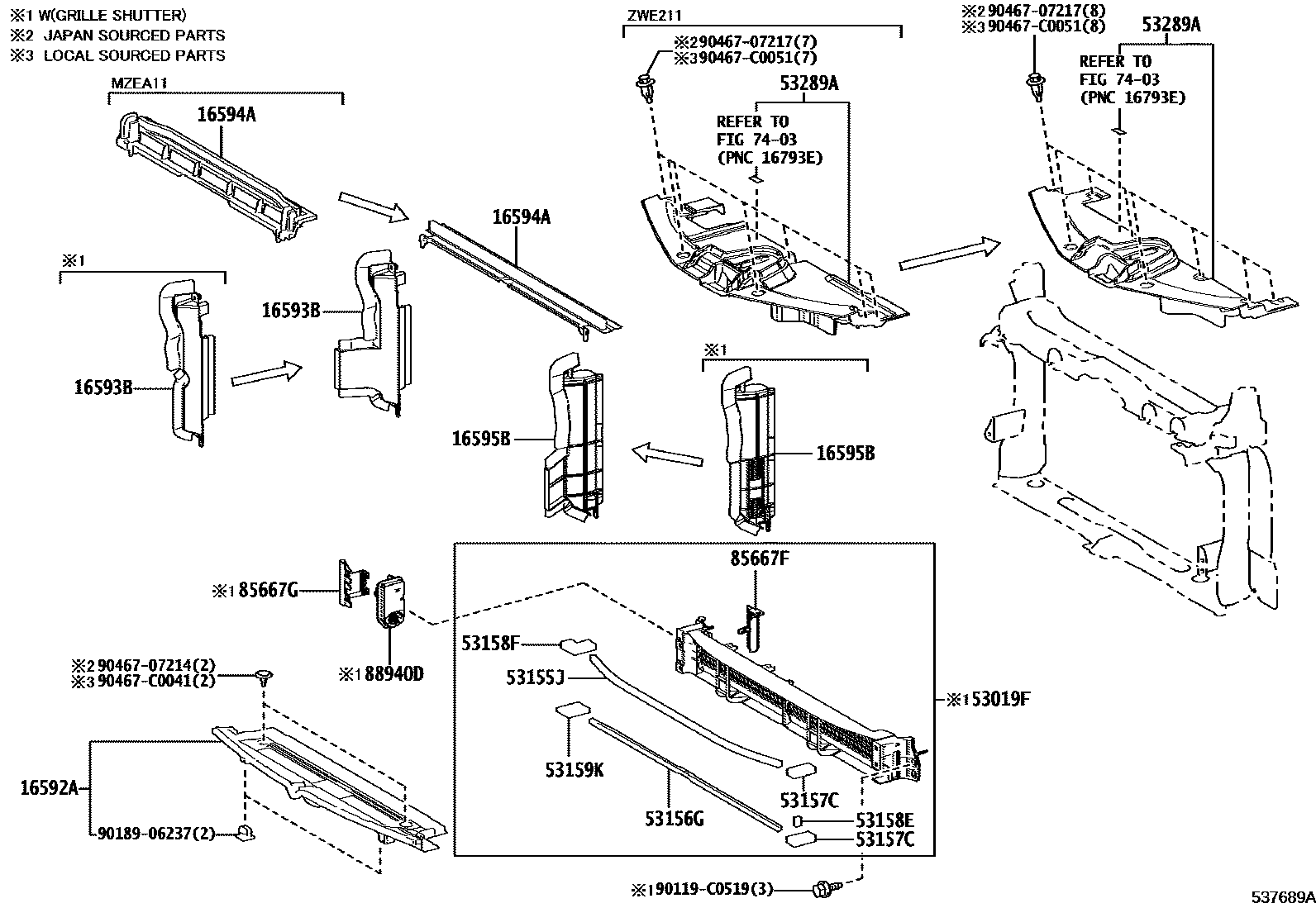

Parts diagram
16592AGUIDE, RADIATOR AIR, NO.3
main16592-0T210i201908-202304
main16592-0T210i202305
MARK 16592-0T210
main16592-F2130i202305
MARK 16592-F2130
16593BGUIDE, RADIATOR AIR, NO.1 RH
main16593-0T220i201908-202304
main16593-F3020i202101-202304
main16593-F3050i202101-202304
16594AGUIDE, RADIATOR AIR, NO.2
main16594-0T170i201908-202304
main16594-0Y090i201908-202304
main16594-F2040i202101-202304
main16594-F3050i202305
16595BGUIDE, RADIATOR AIR, NO.1 LH
main16595-0T270i201908-202304
main16595-0Y170i201908-202304
main16595-F3020i202101-202304
main16595-F3060i202101-202304
53019FSHUTTER SUB-ASSY, RADIATOR
main53019-02040i202101-202304
53155JSEAL, RADIATOR GRILLE, NO.1
main53155-02270i202101-202304
53156GSEAL, RADIATOR GRILLE, NO.2
main53156-02150i202101-202304
53157CSEAL, RADIATOR GRILLE, NO.3
main53157-02050i202101-202304
53158ESEAL, RADIATOR GRILLE, NO.4
main53158-02070i202101-202304
53158FSEAL, RADIATOR GRILLE, NO.4
main53158-02080i202101-202304
53159KSEAL, RADIATOR GRILLE, NO.5
main53159-02040i202101-202304
53289ACOVER, RADIATOR SUPPORT OPENING
main53289-02170i201908-202011
main53289-02171i202011-202304
main53289-02190i201908-202304
main53289-02300i202305
main53289-02340i202306
7403
85667FCOVER, MOTOR
main85667-02060i202101-202304
85667GCOVER, MOTOR
main85667-02040i202101-202304
88940DACTUATOR ASSY, SWING GRILLE
main88940-02030i202101-202209
sub88940-02031
main88940-02031i202210-202304
90119C0519
main90119-C0519
9018906237
main90189-06237¥100
9046707214
main90467-07214¥70
9046707217
main90467-07217¥80
90467C0041
main90467-C0041
90467C0051
main90467-C0051

22 parts on this diagram · 4 diagrams in section
