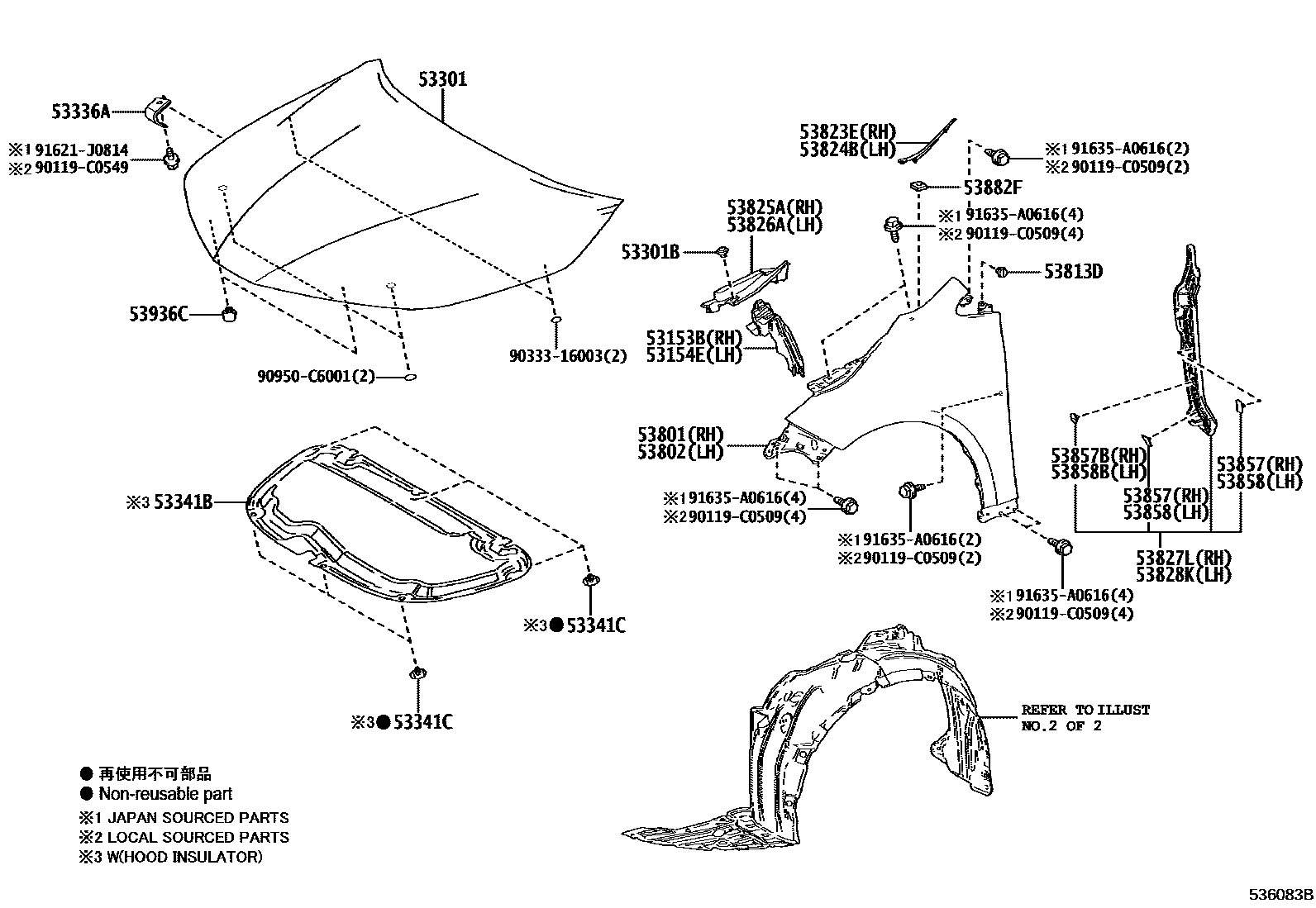

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153BGUIDE, FRONT SIDE AIR

main53153-02170iMZEA17,ZWE219201908-202304

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-02170iMZEA17,ZWE219201908-202304

53301HOOD SUB-ASSY

main53301-02450iMZEA11,ZWE211201908-202304

53301BCUSHION, HOOD BUMPER

main53384-02030iMZEA17,ZWE219202308

(L)

main53384-78010iMZEA17,ZWE219¥370201908-202308

main53384-78010iNRE210..ENTRY,MID¥370202308

(J)

53336ABRACKET, HOOD STAY

main53336-02030iNRE210..HI201908-202304

53341BINSULATOR, HOOD

main53341-02460iNRE210..HI201908-202304

main53341-02500iNRE210..MID202305

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNRE210..HI¥120201908-202304

(J)

main90467-09050iMZEA17,ZWE219¥120202305

(L)

main90467-C0025iMZEA17,ZWE219202305

(J)

main90467-C0025iMZEA11,ZWE211201908-202304

(L)

53801FENDER SUB-ASSY, FRONT RH

main53801-02350iNRE210..HI201908-202304

53802FENDER SUB-ASSY, FRONT LH

main53802-02340iNRE210..HI201908-202304

53813DEXTENSION, FRONT FENDER

main53813-48011iNRE210..HI¥80201908-202304

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-02260iNRE210..HI201908-202304

main53823-02320iNRE210..ENTRY,MID202305

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-02260iNRE210..HI201908-202304

main53824-02320iNRE210..ENTRY,MID202305

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-02240iNRE210..HI201908-202304

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-02240iNRE210..HI201908-202304

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02320iMZEA11,ZWE211201908-202304

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02320iNRE210..HI201908-202304

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iMZEA11,ZWE211¥100201908-202304

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iNRE210..HI¥60201908-202304

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iNRE210..HI¥100201908-202304

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iNRE210..HI¥60201908-202304

53882FSEAL, FRONT FENDER

main53882-0D020iNRE210..HI201908-202304

(L)

main53882-33060iNRE210..HI¥60201908-202304

(J)

53936CCUSHION

main90541-09117iNRE210..HI¥100201908-202304

90119C0509

main90119-C0509

90119C0549

main90119-C0549

9033316003

main90333-16003¥80

90950C6001

main90950-C6001

91621J0814

main91621-J0814¥60

91635A0616

main91635-A0616¥60

28 parts on this diagram · 2 diagrams in section
