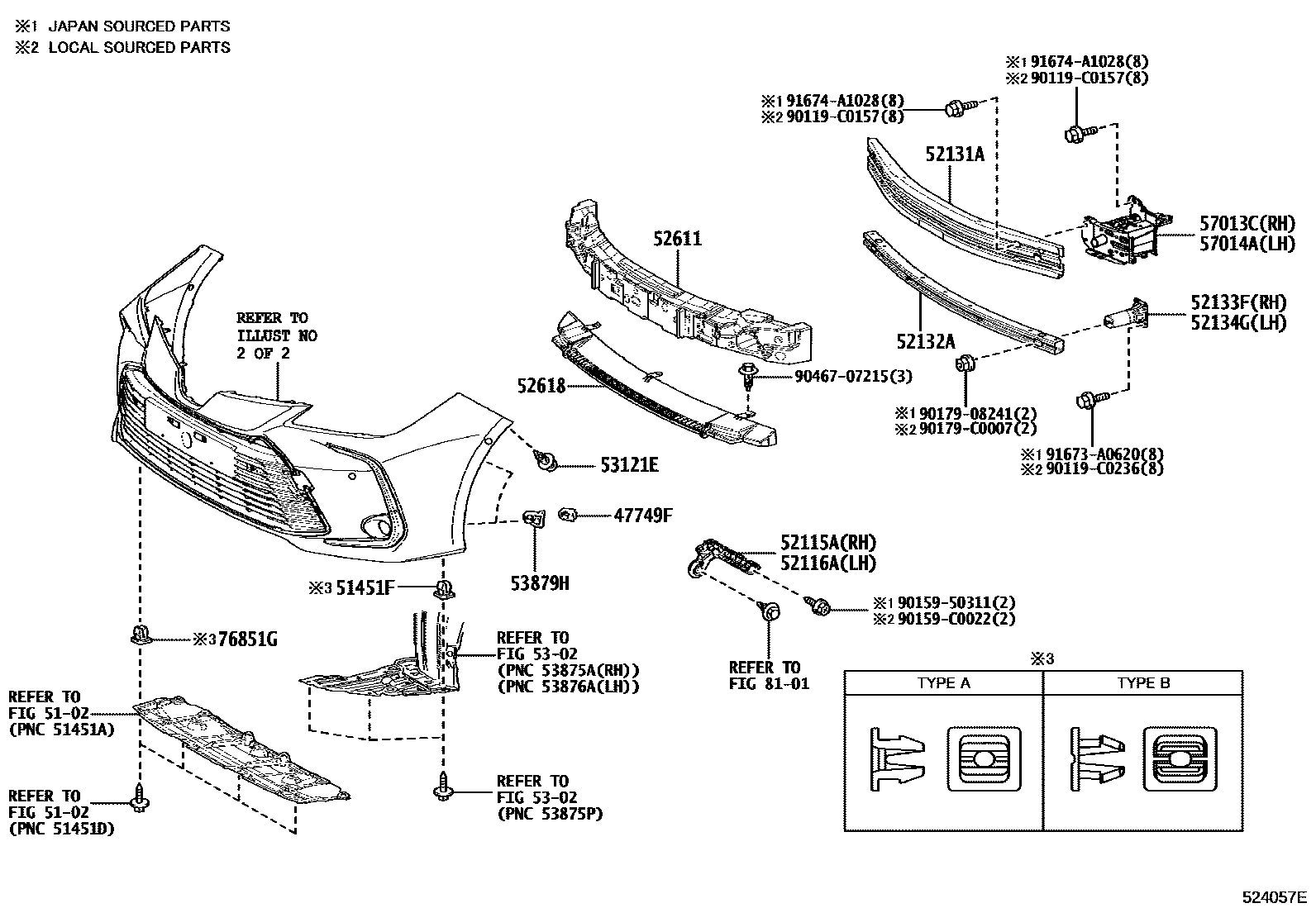

FRONT BUMPER & BUMPER STAY

0001 1 0002 1GR SPORT 0003 1 0004 1 0005 1GR SPORT

47749FCLIP, PIN HOLD

main47749-02010iNRE210..HI;MZEA11,ZWE211202101-202304

main47749-33030iNRE210..HI201908-202101

5102

51451FGROMMET, NO.1

main90189-06193iMZEA17,ZWE219202305

(J),TYPE A:REF ILL.

main90189-06237iNRE210..HI201908-202304

(J)

main90189-06237iMZEA17,ZWE219202305

(J),TYPE B:REF ILL.

main90189-C0015iMZEA17,ZWE219202305

(L),TYPE A:REF ILL.

main90189-C0020iNRE210..ENTRY,MID201908-202304

(L)

main90189-C0020iMZEA17,ZWE219202305

(L),TYPE B:REF ILL.

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-02550iNRE210..HI201908-202304

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-02540iNRE210..HI201908-202304

52131AREINFORCEMENT, FRONT BUMPER

main52131-02340iNRE210..HI201908-202304

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-02120iNRE210..HI201908-202304

52133FBRACKET, FRONT BUMPER, RH

main52133-02180iNRE210..HI201908-202009

main52133-02200iNRE210..HI;MZEA11,ZWE211202009-202304

52134GBRACKET, FRONT BUMPER, LH

main52133-02180iNRE210..HI201908-202009

main52133-02200iNRE210..HI;MZEA11,ZWE211202009-202304

52611ABSORBER, FRONT BUMPER ENERGY

main52611-02640iNRE210..HI201908-202304

main52611-02750iMZEA17,ZWE219202305

52618ABSORBER, FRONT BUMPER, LOWER

main52618-02260iNRE210..HI201908-202304

5302

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-05170iMZEA11,ZWE211201908-202406

53879HRETAINER, FRONT FENDER LINER

main53879-02050iNRE210..ENTRY,MID202101-202304

main53879-33030iZWE211;NRE210..ENTRY,MID201908-202101

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-02250iNRE210..ENTRY,MID201908-202304

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-02250iMZEA11,ZWE211201908-202304

76851GGROMMET, SCREW, NO.1

main90189-06193iNRE210..HI201908-202304

(J)

main90189-06193iMZEA17,ZWE219202305

(J),TYPE A:REF ILL.

main90189-06237iMZEA17,ZWE219202305

(J),TYPE B:REF ILL.

main90189-C0015iNRE210..HI201908-202304

(L)

main90189-C0015iMZEA17,ZWE219202305

(L),TYPE A:REF ILL.

main90189-C0020iMZEA17,ZWE219202305

(L),TYPE B:REF ILL.

8101

90119C0157

main90119-C0157

90119C0236

main90119-C0236

9015950311

main90159-50311

90159C0022

main90159-C0022

9017908241

main90179-08241

90179C0007

main90179-C0007

9046707215

main90467-07215

91673A0620

main91673-A0620

91674A1028

main91674-A1028

27 parts on this diagram · 5 diagrams in section
