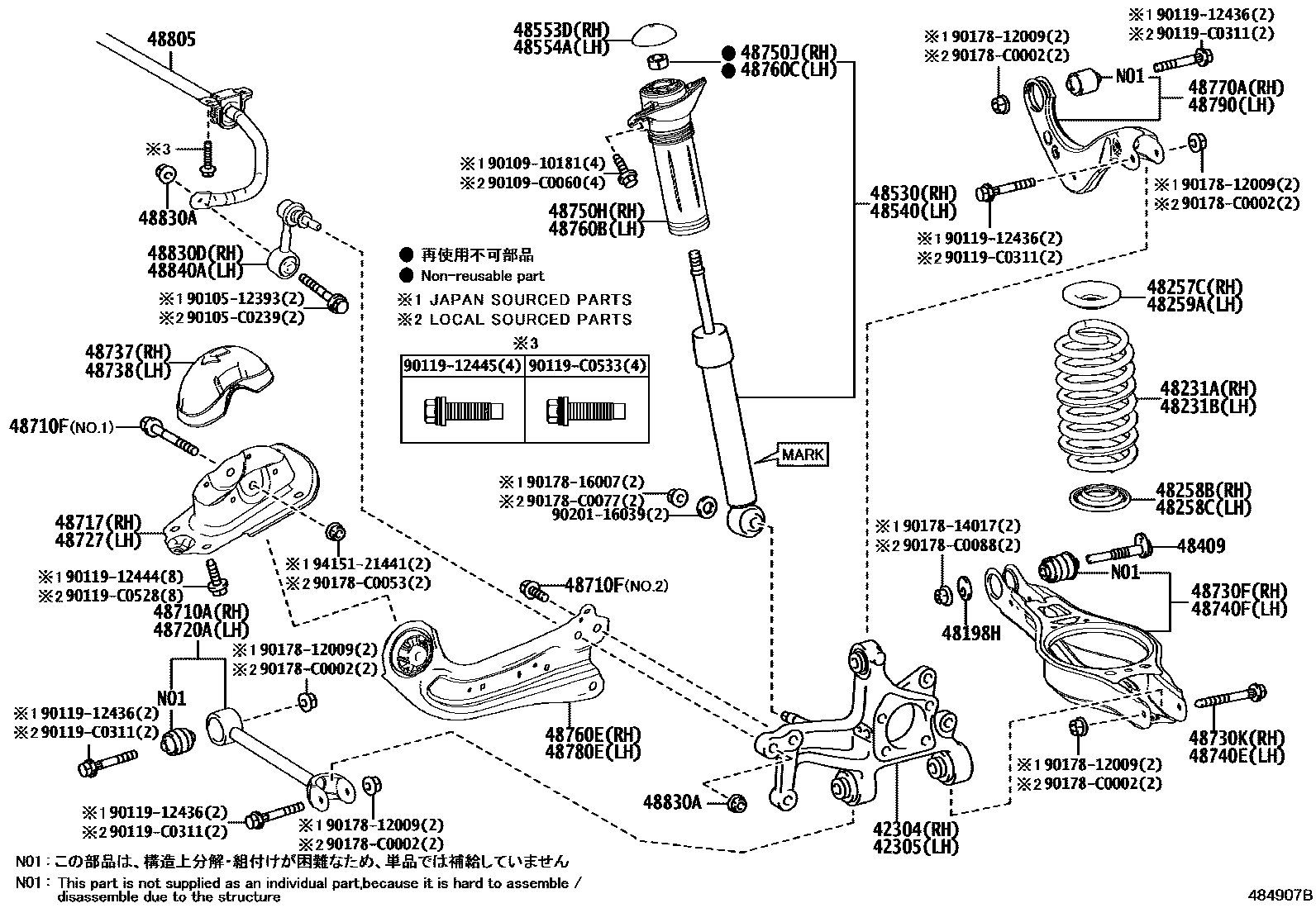

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1W(STABILIZER) 0004 1W/O(STABILIZER)

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-02390iMZEA11,ZWE211201908-202304

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-02390iNRE210..HI201908-202304

48198HCAM, CAMBER ADJUST, NO.2

main48198-02020iNRE210..HI;MZEA11,ZWE211202010-202304

(L)

main48198-47010iNRE210..HI;MZEA11,ZWE211¥520202010-202304

(J)

main48198-47010iNRE210..HI¥520201908-202010

48231ASPRING, COIL, REAR RH

main48231-02S40iMZEA11..6F202101-202304

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

main48231-02S60iNRE210..ENTRY,MID201908-202304

main48231-02S70iMZEA11..CVT202101-202304

main48231-02U70iZWE219..HI,MID202305

main48231-02U90iMZEA17202306

main48231-02Y20iZWE219..ENTRY202305

48231BSPRING, COIL, REAR LH

main48231-02S40iMZEA11..6F202101-202304

ROUGH ROAD AREA SPEC-WITH(HEIGHT UP)

main48231-02S60iNRE210..HI201908-202304

main48231-02S70iMZEA11..CVT202101-202304

main48231-02U70iZWE219..HI,MID202305

main48231-02U90iMZEA17202306

main48231-02Y20iZWE219..ENTRY202305

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-06040iMZEA17,ZWE219201908-202304

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-06240iNRE210..HI201908-202304

main48258-0A050iMZEA17202306

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-06240iNRE210..HI201908-202304

main48258-0A050iMZEA17202306

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-06040iNRE210..HI201908-202304

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-02010iNRE210..HI;MZEA11,ZWE211202010-202304

(L)

main48409-47011iNRE210..HI¥640201908-202010

main48409-47011iNRE210..HI;MZEA11,ZWE211¥640202010-202304

(J)

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-8Z143iNRE210..HI201908-202304

MARK 48530-02S30

main48530-8Z235iZWE219202305

MARK 48530-02T90

main48530-8Z236iMZEA17202306

MARK 48530-02U00

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-8Z143iNRE210..HI201908-202304

MARK 48530-02S30

main48530-8Z235iZWE219202305

MARK 48530-02T90

main48530-8Z236iMZEA17202306

MARK 48530-02U00

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-F4020iZWE219201908-202304

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-F4020iNRE210..HI201908-202304

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-F4030iNRE210..HI201908-202304

48710FBOLT(FOR REAR TRAILING ARM)

main90105-14195iNRE210..HI¥310201908-202304

(J),NO.1:REFER ILL.

main90105-14197iNRE210..HI¥190201908-202304

(J),NO.2:REFER ILL.

main90105-C0241iNRE210..HI201908-202304

(L),NO.1:REFER ILL.

main90105-C0245iNRE210..HI201908-202304

(L),NO.2:REFER ILL.

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-06040iNRE210..ENTRY,MID201908-202304

main48717-0A060iMZEA17202306

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-F4030iNRE210..HI201908-202304

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-06070iNRE210..HI201908-202304

main48727-0A060iMZEA17202306

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-F4020iNRE210..ENTRY,MID201908-202304

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12426iNRE210..HI¥240201908-202304

(J)

main90119-C0310iZWE219201908-202304

(L)

48737COVER, REAR SUSPENSION ARM, RH

main48753-06100iNRE210..HI201908-202304

48738COVER, REAR SUSPENSION ARM, LH

main48753-06110iNRE210..HI201908-202304

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12426iNRE210..HI¥240201908-202304

(J)

main90119-C0310iNRE210..ENTRY,MID201908-202304

(L)

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-F4020iMZEA11,ZWE211201908-202304

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-0A070iMZEA17202306

main48750-F4020iMZEA11,ZWE211201908-202304

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90170-C0010iZWE219202305

(L)

main90170-C0010iNRE210..HI201908-202304

main94130-61200iZWE219¥100202305

(J)

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-F4020iNRE210..HI201908-202304

main48760-0A080iMZEA17202306

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90170-C0010iNRE210..HI201908-202304

main90170-C0010iZWE219202305

(L)

main94130-61200iZWE219¥100202305

(J)

48760EARM ASSY, TRAILING, REAR RH

main48760-F4040iMZEA11,ZWE211201908-202304

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-F4020iNRE210..HI201908-202304

48780EARM ASSY, TRAILING, REAR LH

main48780-F4040iNRE210..HI201908-202304

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-F4020iNRE210..HI201908-202304

48805BAR SUB-ASSY, REAR STABILIZER

main48805-02170iNRE210..HI201908-202304

48830ANUT(FOR REAR STABILIZER LINK)

main90178-C0018iZWE219..HI,MID201908-202304

(L)

main94151-21241iMZEA11,ZWE211¥100201908-202304

(J)

48830DLINK ASSY, REAR STABILIZER, RH

main48830-02050iZWE219..HI,MID202305

main48830-F4020iNRE210..HI201908-202305

sub48830-02050

48840ALINK ASSY, REAR STABILIZER, LH

main48830-02050iNRE210..ENTRY,MID202305

main48830-F4020iMZEA11,ZWE211201908-202305

sub48830-02050

9010512393

main90105-12393¥190

90105C0239

main90105-C0239

9010910181

main90109-10181¥160

90109C0060

main90109-C0060

9011912436

main90119-12436¥240

9011912444

main90119-12444¥190

9011912445

main90119-12445¥160

90119C0311

main90119-C0311

90119C0528

main90119-C0528

90119C0533

main90119-C0533

9017812009

main90178-12009¥120

9017814017

main90178-14017¥120

9017816007

main90178-16007¥160

90178C0002

main90178-C0002

90178C0053

main90178-C0053

90178C0077

main90178-C0077

90178C0088

main90178-C0088

9020116039

main90201-16039¥120

9415121441

main94151-21441¥120

56 parts on this diagram · 4 diagrams in section
