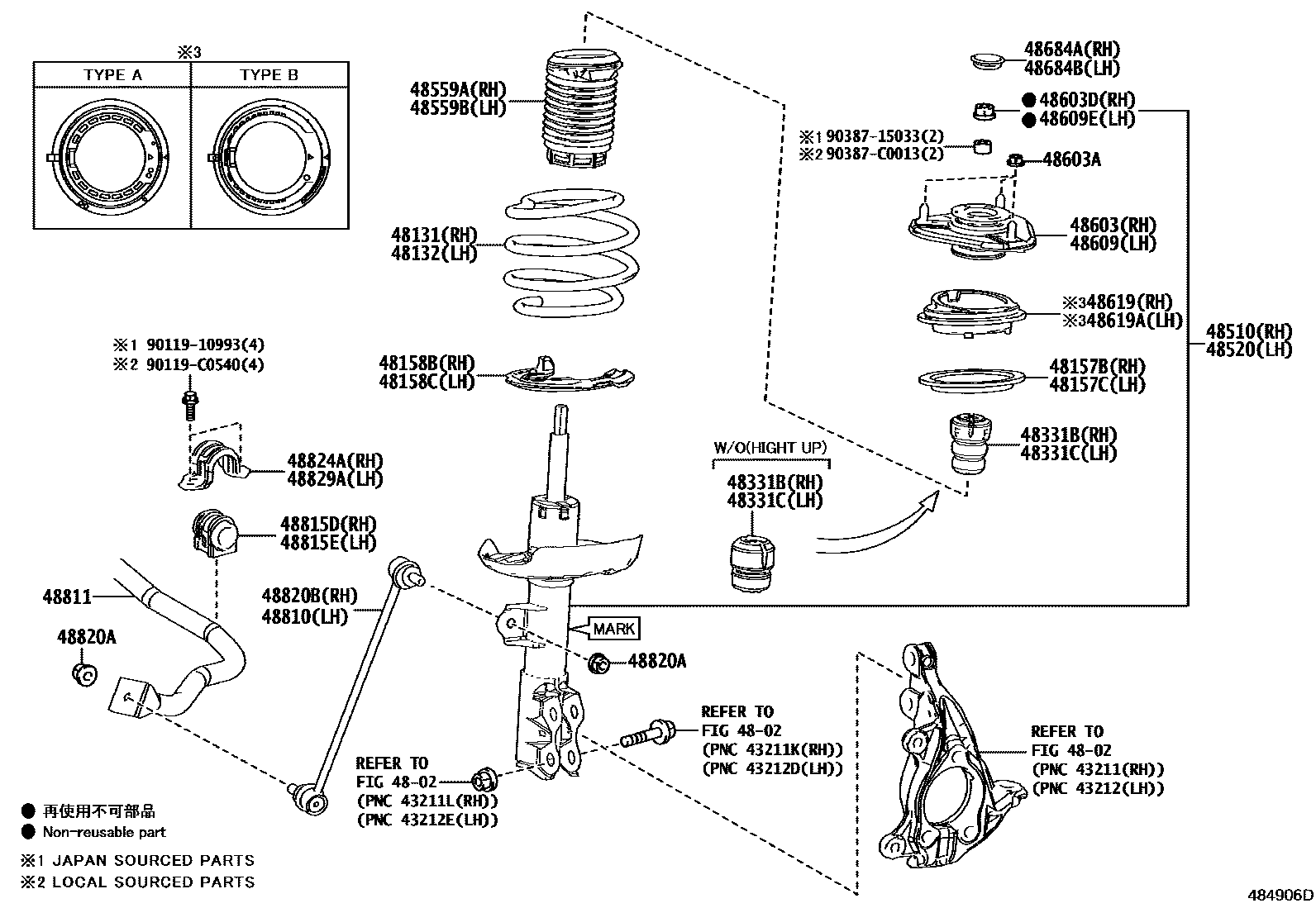

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-02T80
MARK 48510-02T90
MARK 48510-02U60
MARK 48510-02U70
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-02T80
MARK 48520-02T90
MARK 48520-02U60
MARK 48520-02U70
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
(J)
(L)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
(J)
(L)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
(J)
(L)
48619BEARING, STRUT MOUNTING, RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
48619ABEARING, STRUT MOUNTING, LH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
(L)
(J)
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
(L)
(J)
48811BAR, STABILIZER, FRONT
48815DBUSH, FRONT STABILIZER BAR, RH
48815EBUSH, FRONT STABILIZER BAR, LH
48820ANUT(FOR FRONT STABILIZER LINK)
(L)
(J)
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011910993
90119C0540
main90119-C0540
9038715033
90387C0013
main90387-C0013
34 parts on this diagram · 1 diagram in section
