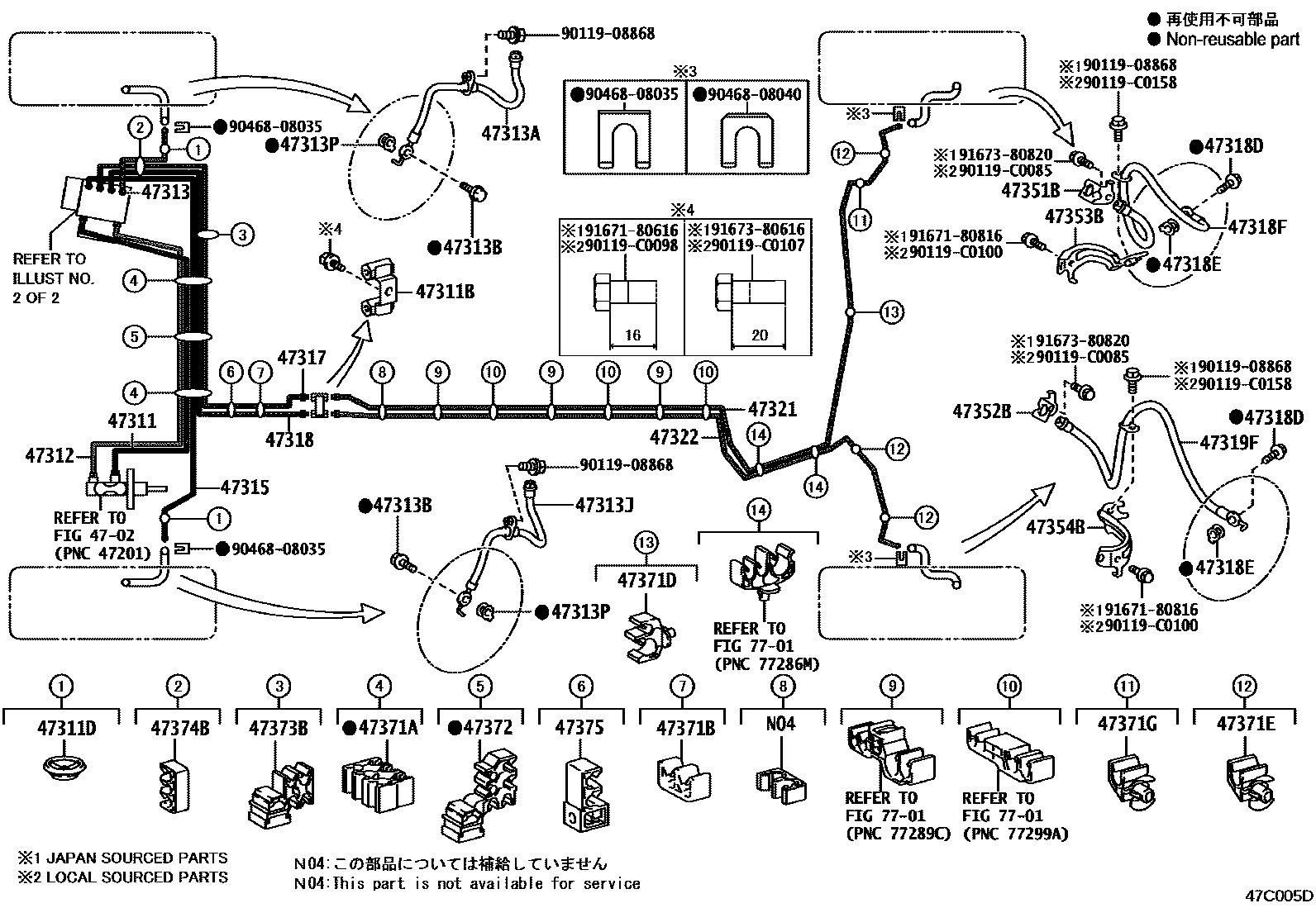

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE,ELECTRIC PARKING B0002 1BRAKE TUBE 0003 1BRAKE TUBE 0004 1BRAKE TUBE 0005 1BRAKE TUBE 0006 1BRAKE ACTUATOR 0007 1BRAKE ACTUATOR 0008 1BRAKE ACTUATOR

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-02C30iZWE211201908-202304

main47311-02J10iZWE219202305

main47311-02J40iMZEA17202306

main47311-F4070iNRE210..HI201908-202006

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iMZEA11,ZWE211201908-202304

(J)

main90412-C0004iNRE210..ENTRY,MID201908

(L)

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037×2iNRE210..HI202007-202304

47312TUBE, FRONT BRAKE, NO.2

main47312-02E40iZWE211201908-202304

main47312-02F70iZWE219202305

main47312-F4070iNRE210..HI201908-202006

47313TUBE, FRONT BRAKE, NO.3

main47313-02D10iZWE211201908-202304

main47313-02J30iZWE219202305

main47313-F4070iMZEA17202306

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-C2082iNRE210..HI202007-202304

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iMZEA17,ZWE219202305

(J)

main90401-C0001×2iMZEA17,ZWE219202305

(L)

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-C2083iNRE210..ENTRY,MID201908

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iNRE210..HI201908-202006

47315TUBE, FRONT BRAKE, NO.5

main47315-02600iZWE211201908-202304

main47315-02660iNRE210..HI201908-202006

main47315-02730iZWE219202305

47317TUBE, FRONT BRAKE, NO.7

main47317-02C00iZWE211201908-202304

main47317-02G30iZWE219202305

main47317-F4070iNRE210..ENTRY,MID201908

47318TUBE, FRONT BRAKE, NO.8

main47318-02C20iZWE211201908-202304

main47318-02G50iZWE219202305

main47318-F4070iMZEA17202306

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iMZEA17,ZWE219202305

(J)

main90401-C0001×2iMZEA11,ZWE211201908-202304

(L)

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iNRE210..HI201908-202006

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-C2086iNRE210..HI201908-202006

main90947-C2110iMZEA17202306

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-C2087iNRE210..HI201908-202006

main90947-C2111iMZEA17202306

47321TUBE, REAR BRAKE, NO.1

main47321-02730iNRE210..HI201908-202006

main47321-02790iMZEA17202306

47322TUBE, REAR BRAKE, NO.2

main47322-02730iMZEA11,ZWE211201908-202304

main47322-02790iMZEA17202306

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-0A200iMZEA17202306

main47351-F4040iNRE210..HI202007-202304

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-0A200iMZEA17202306

main47352-F4040iNRE210..ENTRY,MID201908

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-02260iNRE210..HI201908-202006

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-02260iNRE210..HI201908-202006

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01E40×3iZWE219202305

main90949-01E44×2iNRE210..HI202007-202304

main90949-01E51iZWE211201908-202304

47371BCLAMP, BRAKE TUBE, NO.6

main90461-10854iZWE211201908-202304

main90949-01D91iMZEA17202306

47371DCLAMP, BRAKE TUBE, NO.8

main77285-02270iNRE210..HI202007-202304

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01E01iMZEA17202306

main90949-01E10×3iNRE210..ENTRY,MID201908

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01E10iNRE210..HI201908-202006

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D99×2iZWE211201908-202304

main90949-01E42iMZEA17202306

main90949-01E79iZWE219202305

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E50iZWE211201908-202304

main90949-01E51iMZEA17202306

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D92iNRE210..HI202007-202304

main90949-01E33iZWE211201908-202304

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D91iZWE211201908-202304

main90949-01E33iMZEA11201908-202304

7701

9011908868

main90119-08868

90119C0085

main90119-C0085

90119C0098

main90119-C0098

90119C0100

main90119-C0100

90119C0107

main90119-C0107

90119C0158

main90119-C0158

9046808035

main90468-08035

9046808040

main90468-08040

9167180616

main91671-80616

9167180816

main91671-80816

9167380616

main91673-80616

9167380820

main91673-80820

45 parts on this diagram · 8 diagrams in section
