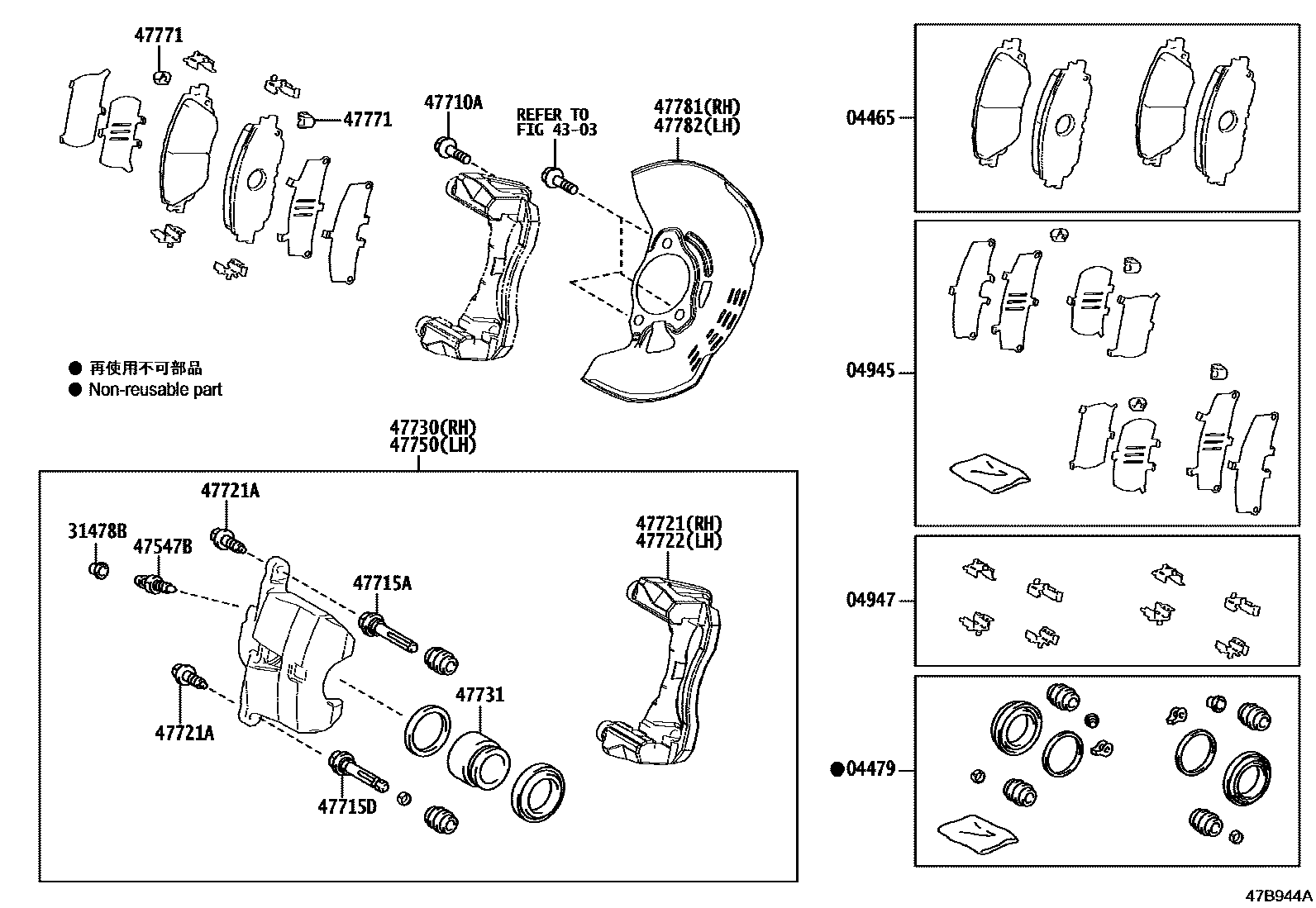

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-02480iNRE210..HI202007-202304

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-02420iNRE210..HI201908-202006

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-02270iNRE210..HI201908-202006

04947FITTING KIT, DISC BRAKE, FRONT

main04947-02170iNRE210..HI201908-202006

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010×2iNRE210..HI202007-202304

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iNRE210..ENTRY,MID201908

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4iNRE210..HI202007-202304

*12-1.25PX29.5-23,(J)

main90105-C0021×4iNRE210..HI202007-202304

*12-1.25PX29.5-23,(L)

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0R020×2iNRE210..HI201908-202006

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-0D210×2iNRE210..HI202007-202304

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-02630iNRE210..HI201908-202006

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA608×4iNRE210..HI201908-202006

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-02530iNRE210..HI201908-202006

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02630iNRE210..HI201908-202006

47731PISTON, FRONT DISC BRAKE

main47731-0D270×2iNRE210..HI201908-202006

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02530iNRE210..HI201908-202006

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33380×4iNRE210..HI201908-202006

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-F4030iNRE210..HI201908-202006

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-F4030iNRE210..HI201908-202006

19 parts on this diagram · 1 diagram in section
