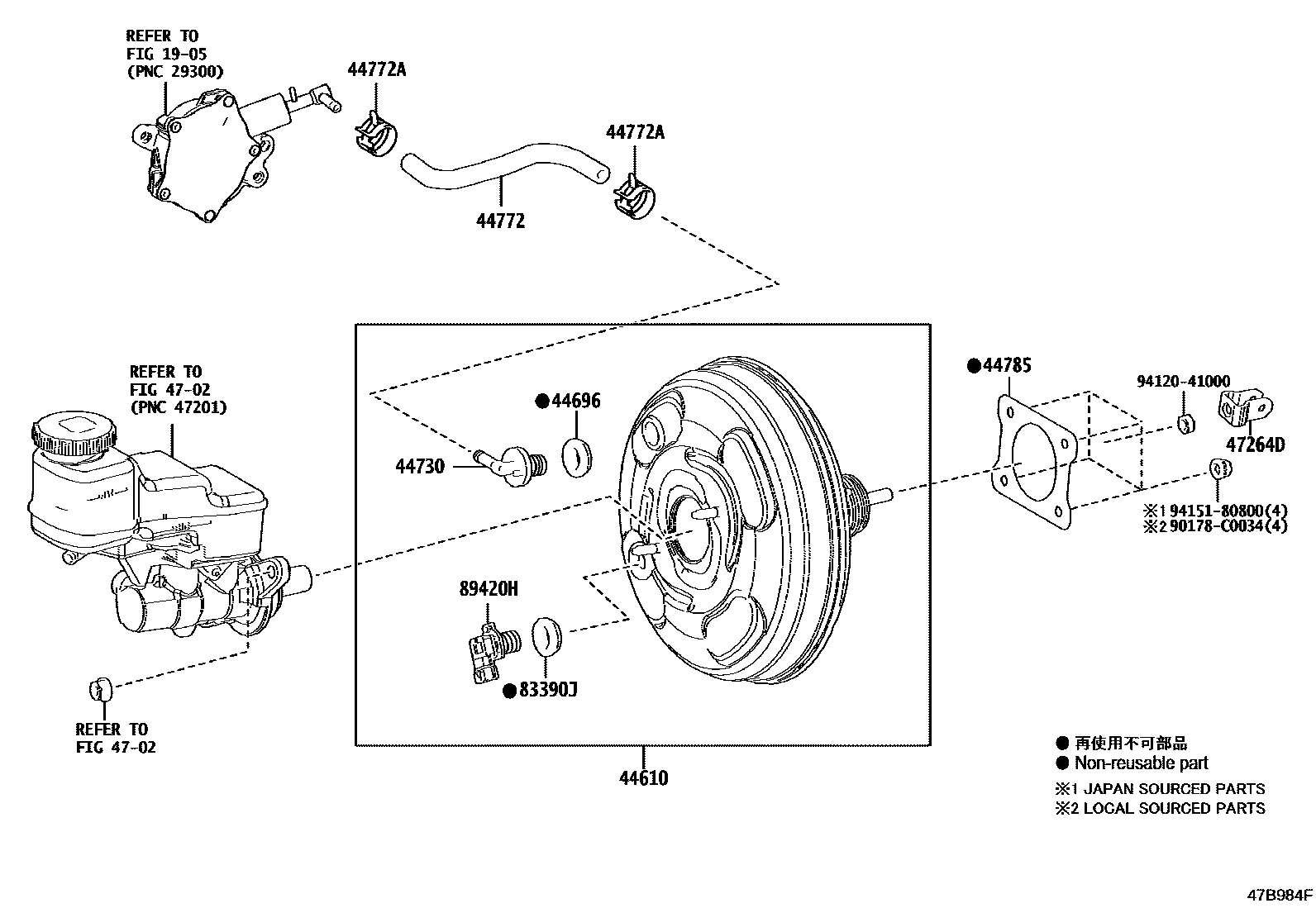

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1905

44610BOOSTER ASSY, BRAKE

main44610-02K20iMZEA11202101-202304

main44610-02K30iNRE210..HI201908-202304

44696GROMMET, CHECK VALVE

main90016-AT003iMZEA17¥120202208-202304

main90080-48071iMZEA11..CVT;NRE210..ENTRY,MID201908-202208

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iNRE210..HI¥1,300201908-202304

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-02320iNRE210..HI201908-202304

main44772-02330iMZEA11202101-202304

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90466-C0034iNRE210..HI201908-202304

(L)

main90467-16014iNRE210..HI¥230201908-202304

(J)

44785GASKET, BRAKE BOOSTER

main44785-02050iMZEA17201908-202304

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-0P010iNRE210..ENTRY,MID201908-202304

83390JGROMMET, VACUUM WARNING SWITCH

main90016-AT003iNRE210..HI;MZEA11..CVT¥120202208-202304

main90080-48071iNRE210..HI201908-202208

89420HSENSOR ASSY, VACUUM

main89421-52020iNRE210..HI¥5,900201908-202304

90178C0034

main90178-C0034

9412041000

main94120-41000¥80

9415180800

main94151-80800¥80

14 parts on this diagram · 2 diagrams in section
