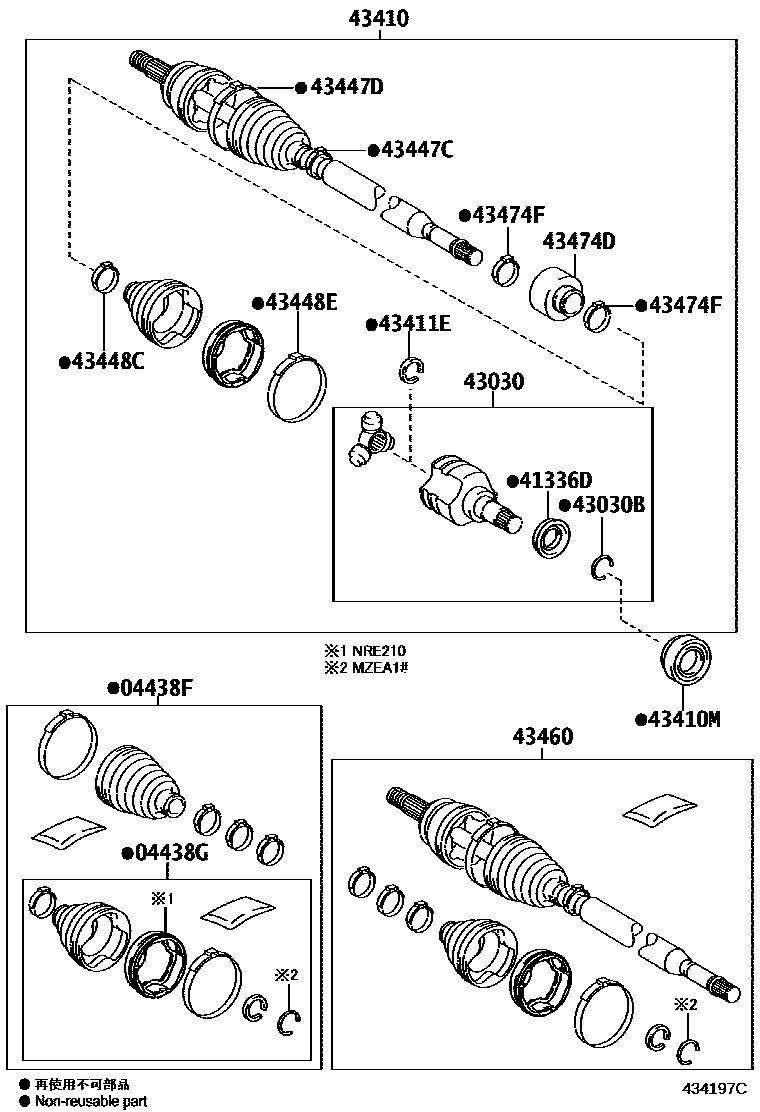

FRONT DRIVE SHAFT
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
(L)
(L)
(J)
(J)
43030JOINT ASSY, FRONT DRIVE INBOARD, RH
43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)
(L)
(L)
(J)
(J)
43410SHAFT ASSY, FRONT DRIVE, RH
43410MOIL SEAL, FRONT DRIVE SHAFT, RH
TMH:REFER 34-01,TMCAP:REFER 34-01
TMCAP:REFER 34-01
TMH:REFER 34-01
*642
*644
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
(J)
(L)
43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43474DDAMPER, FRONT DRIVE SHAFT, RH
43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
(L)
(J)
15 parts on this diagram · 6 diagrams in section
