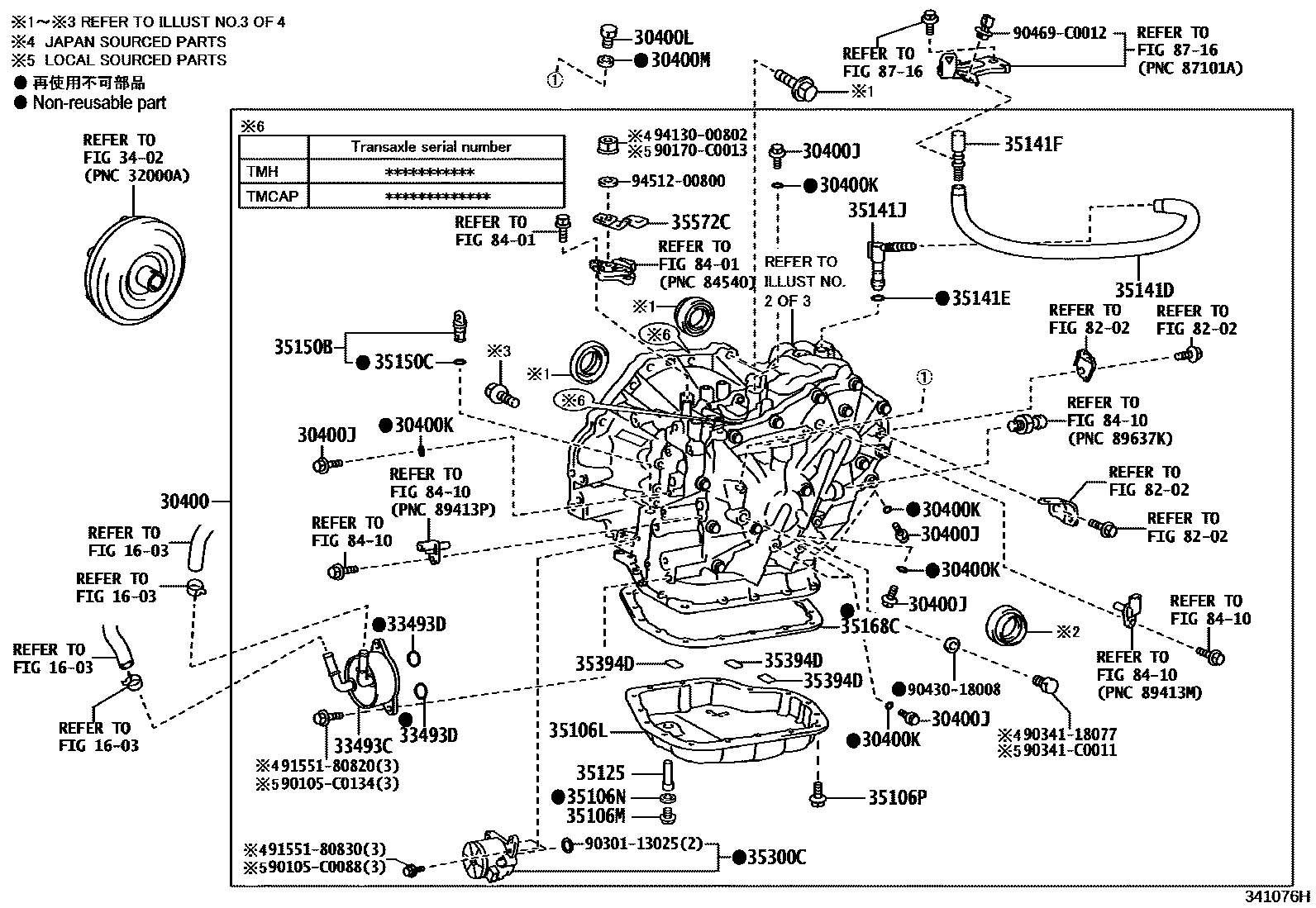

TRANSAXLE ASSY(CVT)

0001 1K313 0002 1K313 0003 1K313 0004 1K313 0005 1K320 0006 1K320 0007 1K320 0008 1K320 0009 1K320 0010 1K320 0011 1K321 0012 1K321 0013 1K321 0014 1K321 0015 1K321

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-02050iNRE210..HI201908-202304

K313,TMCAP:REFER ILLUST.

sub30400-12750

main30400-12151iMZEA11..CVT202104-202212

K320,TOYOTA:REF.ILLUST

sub30400-12320¥315,000

main30400-12320iMZEA11..CVT¥315,000202101-202304

K320,AISIN AW:REF.ILLUST

main30400-12580iMZEA17202306

K321

main30400-12750iNRE210..HI201908-202304

K313,TMH:REFER TO ILLUST.

30400JPLUG, TRANSAXLE HOLE

main90341-08001iNRE210..HI¥120201908-202304

TMH:REFER TO ILLUST.,TMCAP:REFER ILLUST.

main90341-08001iMZEA11..CVT¥120202104-202212

TOYOTA:REF.ILLUST

main90341-08001iNRE210..ENTRY,MID¥120201908-202303

TMCAP:REFER ILLUST.

main90341-08001iMZEA11..CVT¥120202101-202304

AISIN AW:REF.ILLUST

main90341-08001iNRE210..ENTRY,MID¥120201908

TMH:REFER TO ILLUST.

main90341-08001iMZEA17¥120202306

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196iMZEA17¥170202306

main90301-06196iNRE210..HI¥170201908-202304

TMH:REFER TO ILLUST.

main90301-06196iMZEA11..CVT¥170202104-202212

TOYOTA:REF.ILLUST

main90301-06196iMZEA11..CVT¥170202101-202304

AISIN AW:REF.ILLUST

main90301-C0061iNRE210..HI201908-202304

TMCAP:REFER ILLUST.

30400LPLUG , FILLER(CVT)

main90341-12025iNRE210..ENTRY,MID¥190201908-202303

(J),TMCAP:REFER ILL.

main90341-12025iNRE210..HI¥190201908-202304

(J),TMH:REFER ILL.,(J),TMCAP:REFER ILL.

main90341-12025iNRE210..ENTRY,MID¥190201908

(J),TMH:REFER ILL.

main90341-C0007iNRE210..ENTRY,MID201908

(L),TMH:REFER ILL.

main90341-C0007iNRE210..HI201908-202304

(L),TMH:REFER ILL.,(L),TMCAP:REFER ILL.

main90341-C0007iNRE210..ENTRY,MID201908-202303

(L),TMCAP:REFER ILL.

30400MGASKET, FILLER PLUG(CVT)

main90430-12221iNRE210..HI¥200201908-202304

TMH:REFER TO ILLUST.,TMCAP:REFER ILLUST.

main90430-12221iNRE210..ENTRY,MID¥200201908-202303

TMCAP:REFER ILLUST.

main90430-12221iNRE210..ENTRY,MID¥200201908

TMH:REFER TO ILLUST.

33493CCOOLER, TRANSMISSION OIL

main33493-02010iNRE210..HI201908-202304

TMCAP:REFER ILLUST.

main33493-12080iNRE210..HI201908-202304

TMH:REFER TO ILLUST.

main33493-12100iMZEA17¥10,600202101-202304

33493DRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012iNRE210..HI¥170201908-202304

TMH:REFER TO ILLUST.

main90301-C0028iNRE210..HI201908-202304

TMCAP:REFER ILLUST.

3402

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-02020iNRE210..HI201908-202304

TMCAP:REFER ILLUST.

main35106-12200iNRE210..HI¥3,590201908-202304

TMH:REFER TO ILLUST.

35106MPLUG SUB-ASSY, DRAIN(CVT)

main90341-12034iNRE210..ENTRY,MID¥190201908-202303

TMCAP:REFER ILLUST.

main90341-12034iNRE210..HI¥190201908-202304

TMH:REFER TO ILLUST.,TMCAP:REFER ILLUST.

main90341-12034iNRE210..ENTRY,MID¥190201908

TMH:REFER TO ILLUST.

35106NGASKET, DRAIN PLUG(CVT)

main90430-12008iNRE210..HI¥90201908-202304

TMH:REFER TO ILLUST.,TMCAP:REFER ILLUST.

main90430-12008iNRE210..ENTRY,MID¥90201908-202303

TMCAP:REFER ILLUST.

main90430-12008iNRE210..ENTRY,MID¥90201908

TMH:REFER TO ILLUST.

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173iNRE210..ENTRY,MID¥80201908

TMH:REFER TO ILLUST.

main90119-06173iNRE210..HI¥80201908-202304

TMH:REFER TO ILLUST.,TMCAP:REFER ILLUST.

main90119-06173iNRE210..ENTRY,MID¥80201908-202303

TMCAP:REFER ILLUST.

35125TUBE, TRANSMISSION OIL FILLER, NO.1

main35125-02160iNRE210..ENTRY,MID201908-202304

TMCAP:REFER ILLUST.

main35125-12440iNRE210..HI¥130201908-202304

TMH:REFER TO ILLUST.

35141DHOSE(FOR BREATHER PLUG)

main35121-0D020iNRE210..ENTRY,MID201908-202304

TMCAP:REFER ILLUST.

main35121-52020iNRE210..ENTRY,MID¥590201908-202304

TMH:REFER TO ILLUST.

35141ERING, O(FOR BREATHER PLUG)

main90301-06021iNRE210..HI¥140201908-202304

TMH:REFER TO ILLUST.

main90301-C0060iNRE210..HI201908-202304

TMCAP:REFER ILLUST.

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03216iNRE210..HI¥260201908-202304

TMH:REFER TO ILLUST.

main90930-03233iMZEA11..CVT¥250202101-202304

AISIN AW:REF.ILLUST

main90930-03233iMZEA11..CVT¥250202104-202212

TOYOTA:REF.ILLUST

main90930-03233iMZEA17¥250202306

main90930-C3019iNRE210..ENTRY,MID201908-202304

TMCAP:REFER ILLUST.

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03191iNRE210..HI¥260201908-202304

TMH:REFER TO ILLUST.

main90930-C3022iNRE210..HI201908-202304

TMCAP:REFER ILLUST.

35150BPLUG ASSY, TRANSMISSION CASE

main35150-02010iNRE210..HI201908-202304

TMCAP:REFER ILLUST.

main35150-44010iMZEA17¥340202306

TYPE A:REFER ILLUST.

main35150-48010iMZEA17¥280202306

TYPE B:REFER ILLUST.

main35150-48010iNRE210..HI¥280201908-202304

TMH:REFER TO ILLUST.

main35150-48010iMZEA11..CVT¥280202101-202304

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iNRE210..HI¥140201908-202304

TMH:REFER TO ILLUST.

main90301-09173iMZEA11..CVT¥140202101-202304

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-02020iNRE210..HI201908-202304

TMCAP:REFER ILLUST.

main35168-12091iNRE210..ENTRY,MID¥370201908-202304

TMH:REFER TO ILLUST.

35300CPUMP ASSY, OIL W/MOTOR

main35300-12011iNRE210..ENTRY,MID¥42,500201908-202304

TMH:REFER TO ILLUST.,TMCAP:REFER ILLUST.

main35300-12011iNRE210..ENTRY,MID¥42,500202210-202303

TMCAP:REFER ILLUST.

main35300-12011iNRE210..ENTRY,MID¥42,500202210

TMH:REFER TO ILLUST.

35394DMAGNET, OIL CLEANER(CVT)

main35394-02010iNRE210..ENTRY,MID201908-202304

TMCAP:REFER ILLUST.

main35394-30011iNRE210..HI¥360201908-202101

TMH:REFER TO ILLUST.

main35394-48010iMZEA11..CVT¥280202104-202212

TOYOTA:REF.ILLUST

main35394-48010iMZEA11..CVT¥280202101-202304

AISIN AW:REF.ILLUST

main35394-48010iNRE210..HI¥280202102-202304

TMH:REFER TO ILLUST.

main35394-48010iMZEA17¥280202306

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iNRE210..HI¥390201908-202304

TMH:REFER TO ILLUST.,TMCAP:REFER ILLUST.

main35572-12160iNRE210..ENTRY,MID¥390201908

TMH:REFER TO ILLUST.

main35572-12160iNRE210..ENTRY,MID¥390201908-202303

TMCAP:REFER ILLUST.

main35572-12190iMZEA17¥590202306

main35572-12190iMZEA11..CVT¥590202104-202212

TOYOTA:REF.ILLUST

main35572-12190iMZEA11..CVT¥590202101-202304

AISIN AW:REF.ILLUST

8202

8401

8410

8716

90105C0088

main90105-C0088

90105C0134

main90105-C0134

90170C0013

main90170-C0013

9030113025

main90301-13025¥170

9034118077

main90341-18077¥190

90341C0011

main90341-C0011

9043018008

main90430-18008¥110

90469C0012

main90469-C0012

9155180820

main91551-80820¥80

9155180830

main91551-80830¥80

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

40 parts on this diagram · 15 diagrams in section
