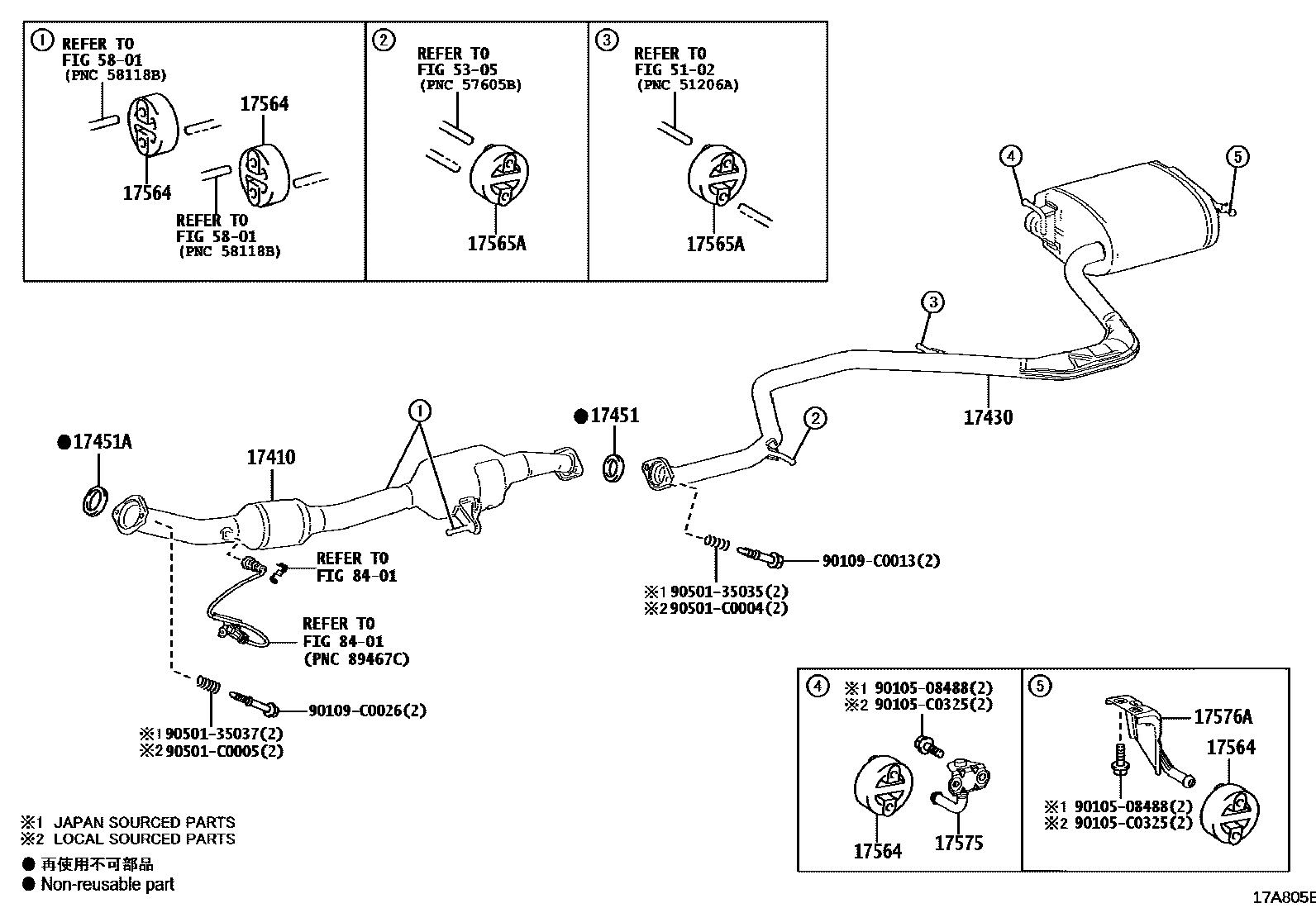

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0TF20i8ZRFXE..ZWE211201908-202110

main17410-0TF21i8ZRFXE..ZWE211202110-202304

main17410-0TK00i8ZRFXE..ZWE219202305

main17410-0YA40i9NRFTS..NRE210..ENTRY,MID201908-202304

main17410-F3020iM15..MZEA11202101-202304

main17410-F3130iM15..MZEA17202306

17430PIPE ASSY, EXHAUST, TAIL

main17430-0T650i8ZRFXE..ZWE219201908-202304

main17430-0Y460i9NRFTS..NRE210..HI201908-202304

main17430-F3020iM15..MZEA11202101-202304

main17430-F3100iM15..MZEA17202306

17451GASKET, EXHAUST PIPE

main17451-0T031i8ZRFXE..ZWE211201908-202304

main17451-0T080iM15,8ZRFXE..MZEA17,ZWE219202101-202304

17451AGASKET, EXHAUST PIPE, NO.2

main17451-0T010i9NRFTS..NRE210..ENTRY,MID201908-202304

main17451-0T050i8ZRFXE..ZWE219202305

main17451-F3010iM15..MZEA11202101-202304

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-0T011i9NRFTS..NRE210..HI201908-202304

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0D080i9NRFTS..NRE210..HI201908-202304

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-0T150i9NRFTS..NRE210..HI201908-202304

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-0T100i9NRFTS..NRE210..HI201908-202304

5102

5305

5801

8401

9010508488

main90105-08488

90105C0325

main90105-C0325

90109C0013

main90109-C0013

90109C0026

main90109-C0026

9050135035

main90501-35035

9050135037

main90501-35037

90501C0004

main90501-C0004

90501C0005

main90501-C0005

20 parts on this diagram · 5 diagrams in section
