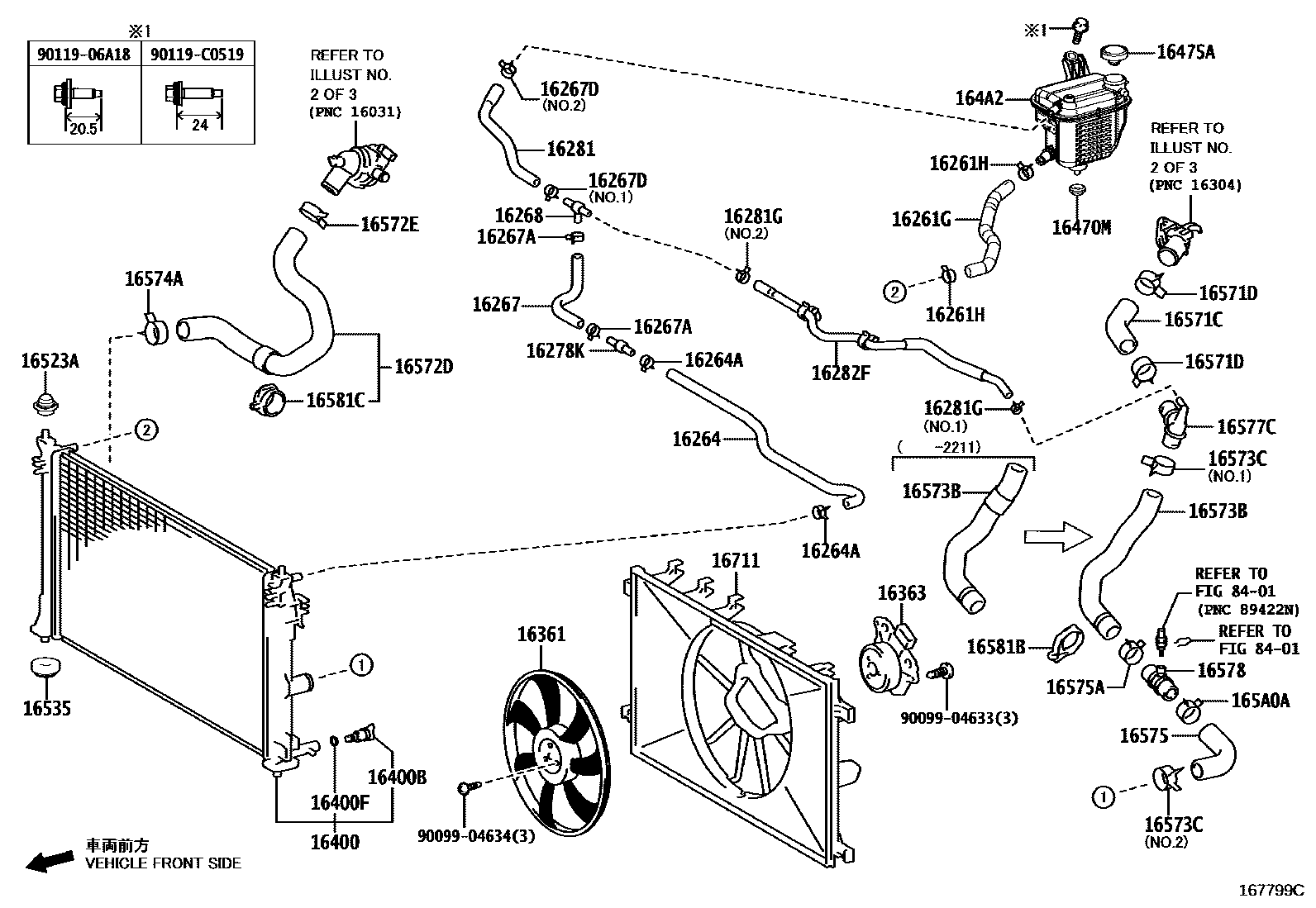

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261GHOSE, WATER BY-PASS, NO.1
*662,*252
*602
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
NO.1
*662,*252
NO.2
*602
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
*662,*252
*602
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16267DCLIP(FOR WATER BY-PASS HOSE NO.4)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
16268PIPE, WATER BY-PASS, NO.1
16278PIPE, WATER BY-PASS, NO.2
*616
*665
16278KPIPE, WATER BY-PASS, NO.2
16281HOSE, WATER BY-PASS, NO.4
*616
*665
16281GCLIP(FOR WATER BY-PASS HOSE NO.5)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
16282HOSE, WATER BY-PASS, NO.5
*616
*665
16282FHOSE, WATER BY-PASS, NO.5
16361FAN
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16470MGROMMET
(J)
(L)
16475ACAP, RESERVE TANK
(L)
(J)
164A2TANK, RESERVE SEALED W/O CAP
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
(J)
(L)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.1:REFER ILLUST.
NO.2
NO.1
NO.2:REFER ILLUST.
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16574HOSE, RADIATOR, NO.4
16574ACLIP, RADIATOR HOSE, NO.4
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16575HOSE, RADIATOR, NO.5
16575ACLIP, RADIATOR HOSE, NO.5
16577CPIPE, RADIATOR
16578PIPE, RADIATOR, NO.2
16581CLAMP, HOSE(FOR WATER HOSE)
(L)
(J)
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
16581CCLAMP, HOSE(FOR RADIATOR HOSE NO.2)
165A0ACLIP, HOSE
16711SHROUD, FAN
8401
9009904633
main90099-04633
9009904634
main90099-04634
9011906A18
main90119-06A18
90119C0519
main90119-C0519
48 parts on this diagram · 15 diagrams in section
