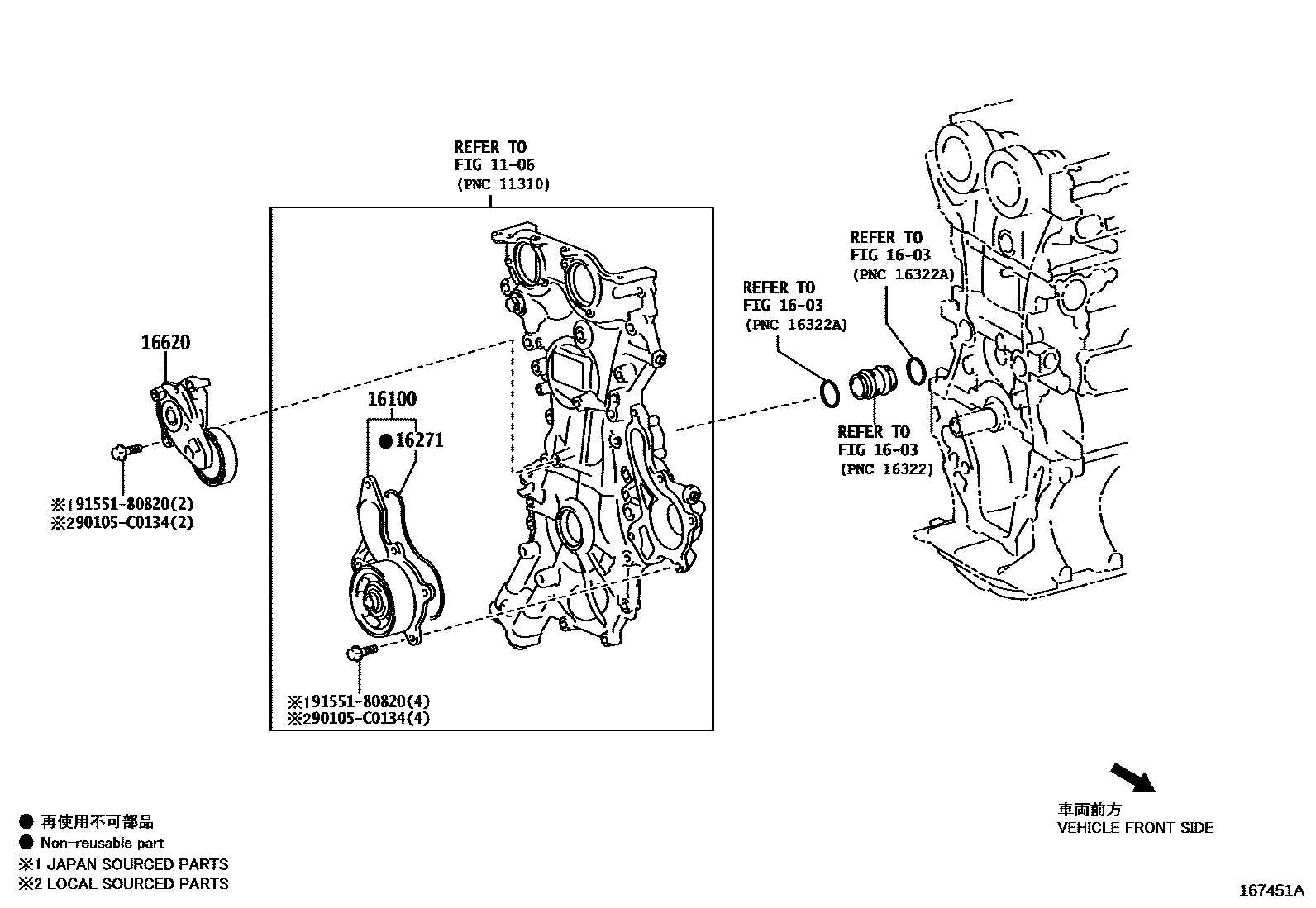

WATER PUMP

0001 1 0002 1 0003 1

1106

1603

16100PUMP ASSY, ENGINE WATER

main16100-09760i9NRFTS..NRE210..HI201908-202304

(L),*662,*252

main16100-80014i9NRFTS..NRE210..HI¥9,000201908-202304

(J),*662,*252

main16100-80014i9NRFTS..NRE210..HI¥9,000202007-202404

*602

main161A0-39035i8ZRFXE..ZWE211¥15,000201908-202304

main161A0-39045i8ZRFXE..ZWE219¥15,000202305

16271GASKET, WATER PUMP

main16271-0Y050i9NRFTS..NRE210..HI201908-202304

*662,*252

main16271-37020i8ZRFXE..ZWE211¥470201908-202304

main16271-47060i9NRFTS..NRE210..HI¥410202007-202404

*602

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0Y030i9NRFTS..NRE210..ENTRY,MID201908-202304

*662,*252

main16620-47061i9NRFTS..NRE210..HI¥11,200202007-202404

*602

90105C0134

main90105-C0134

9155180820

main91551-80820¥80

7 parts on this diagram · 3 diagrams in section
