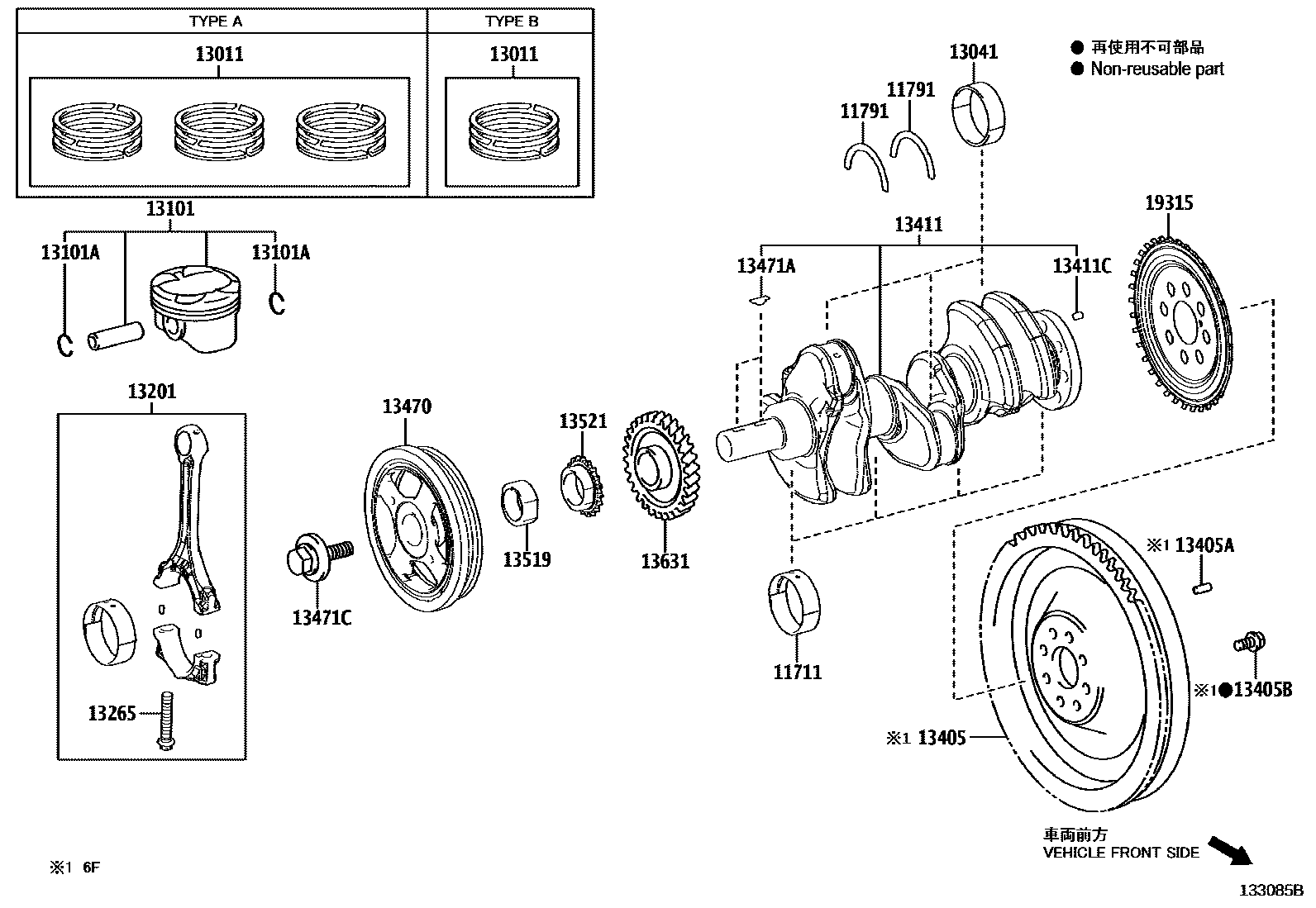

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK 2,*662,*252:REFER R/M
MARK 3,*662,*252:REFER R/M
MARK 4,*662,*252:REFER R/M
MARK 5,*662,*252:REFER R/M
MARK1,*602,*RRM
MARK2,*602,*RRM
MARK3,*602,*RRM
MARK4,*602,*RRM
MARK 1,REFER REPAIR MANUAL
MARK 1,*665:REFER R/M
MARK 2,*665:REFER R/M
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 3,*665:REFER R/M
MARK 4,REFER REPAIR MANUAL
MARK 4,*665:REFER R/M
MAK 5,*665:REFER R/M
MAK 5,REFER REPAIR MANUAL
MARK 6,*665:REFER R/M
MARK 6,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
STD,*662,*252
STD,*616
STD,*602
STD,*665
STD
13011RING SET, PISTON
STD,(L)
STD
STD,(L),*662,*252
STD,*662,*252
STD,TYPE A:REFER ILLUST.
STD,(J)
STD,(J),*662,*252,*602
STD,*602
STD,(J),*662,*252
STD,TYPE B:REFER ILLUST.
STD
13041BEARING, CONNECTING ROD
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK 1,*662,*252:REFER R/M
MARK 2,*662,*252:REFER R/M
MARK 3,*662,*252:REFER R/M
MARK 1,*616:REFER R/M
MARK 2,*616:REFER R/M
MARK 3,*616:REFER R/M
MARK1,*602,*RRM
MARK2,*602,*RRM
MARK3,*602,*RRM
MARK 1,REFER REPAIR MANUAL
MARK 1,*665:REFER R/M
MARK 2,REFER REPAIR MANUAL
MARK 2,*665:REFER R/M
MARK 3,*665:REFER R/M
MARK 3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
STD,*662,*252
STD,*616
STD,*602
STD,*665
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
*665,*616
*662,*252
*602
13201ROD SUB-ASSY, CONNECTING
*662,*252
MARK A,*616:REFER R/M
MARK B,*616:REFER R/M
MARK C,*616:REFER R/M
*602
MARK A,REFER REPAIR MANUAL
MARK A,*665:REFER R/M
MARK B,*665:REFER R/M
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK C,*665:REFER R/M
13265BOLT, CONNECTING ROD
(L)
(J)
(J),*665,*616
(J)
*602
(L)
(L),*665
13405FLYWHEEL SUB-ASSY
*616
*665
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8,(J),*665
L=18,OD=8,*616
L=18,OD=8,*665
L=18,OD=8
L=18,OD=8,(L),*665
13405BBOLT, FLYWHEEL SETTING
*665,*616
13411CRANKSHAFT
*662,*252
(J),*665,*616
(J)
*602
(L),*665
(L)
13411CPIN, STRAIGHT(FOR CRANKSHAFT)
*665,*616
13470PULLEY ASSY, CRANKSHAFT
*662,*252
*602
*616
*665
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
*665,*616
13519GEAR, OIL PUMP DRIVE
*662,*252
*616
*602
*665
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
*662,*252
*616
*602
*665
13631GEAR, BALANCESHAFT DRIVE
*616
*665
19315PLATE, CRANK ANGLE SENSOR, NO.1
(L)
*616
(J)
*665
