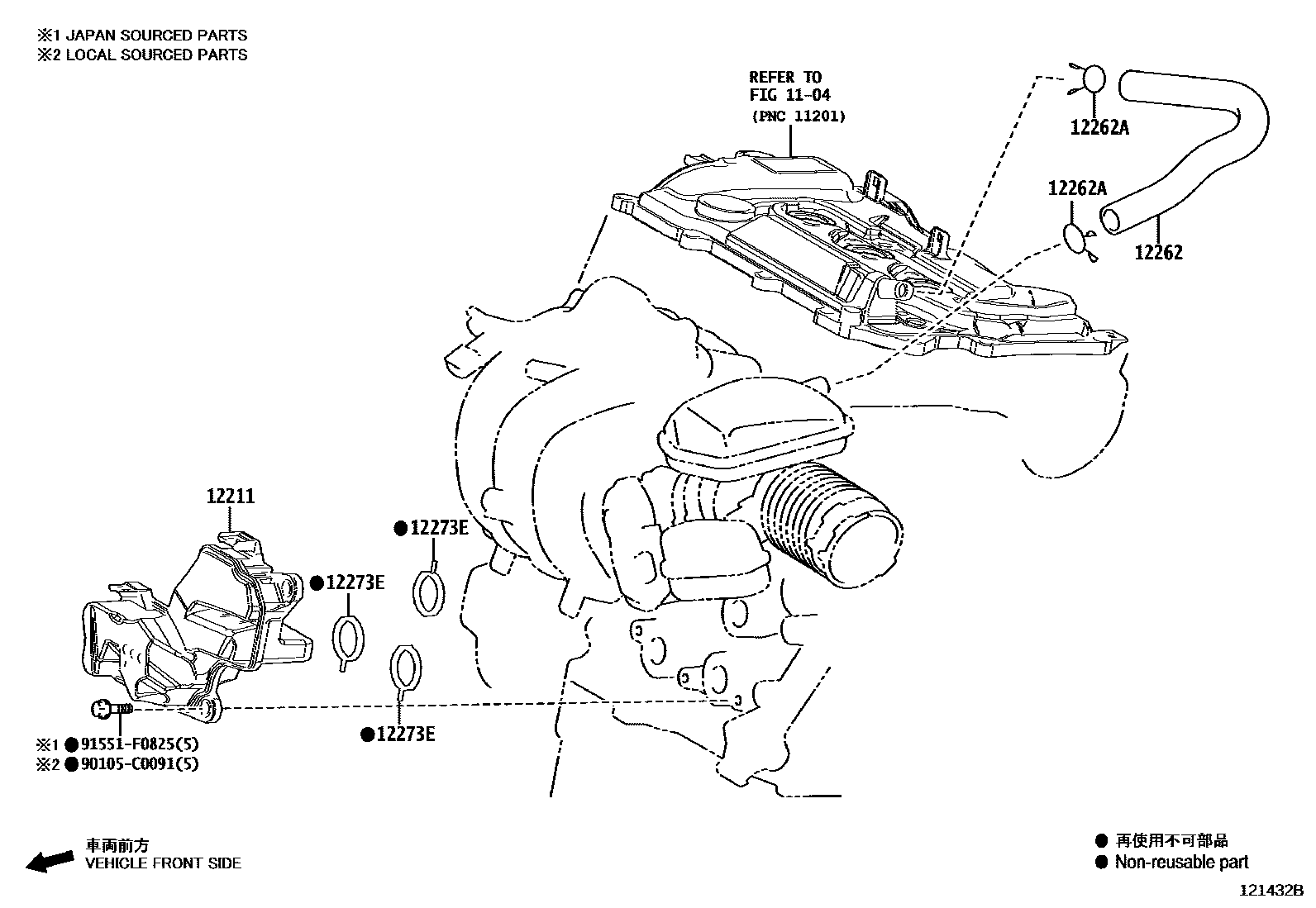

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1

1104

12211CASE, VENTILATION, NO.1

main12211-0T030i8ZRFXE..ZWE211201908-202304

sub12211-0T050

main12211-0T050i8ZRFXE..ZWE219202305

(L)

main12211-15060iM15..MZEA11202101-202304

*616

sub12211-15061

main12211-37010i8ZRFXE..ZWE219202305

(J)

main12211-F3020iM15..MZEA11202101-202202

*665

sub12211-F3021

main12211-F3021iM15..MZEA17202306

main12211-F3021iM15..MZEA11202203-202304

*665

12262HOSE, VENTILATION, NO.2

main12262-0T070i8ZRFXE..ZWE211201908-202304

main12262-15160iM15..MZEA11202101-202304

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004iM15..MZEA17201908-202304

12273EGASKET(FOR VENTILATION CASE)

main12273-15010iM15..MZEA11202101-202304

*616

main12273-F3010iM15..MZEA11202101-202304

*665

main12273-F3010iM15..MZEA17202306

90105C0091

main90105-C0091

91551F0825

main91551-F0825

7 parts on this diagram · 4 diagrams in section
