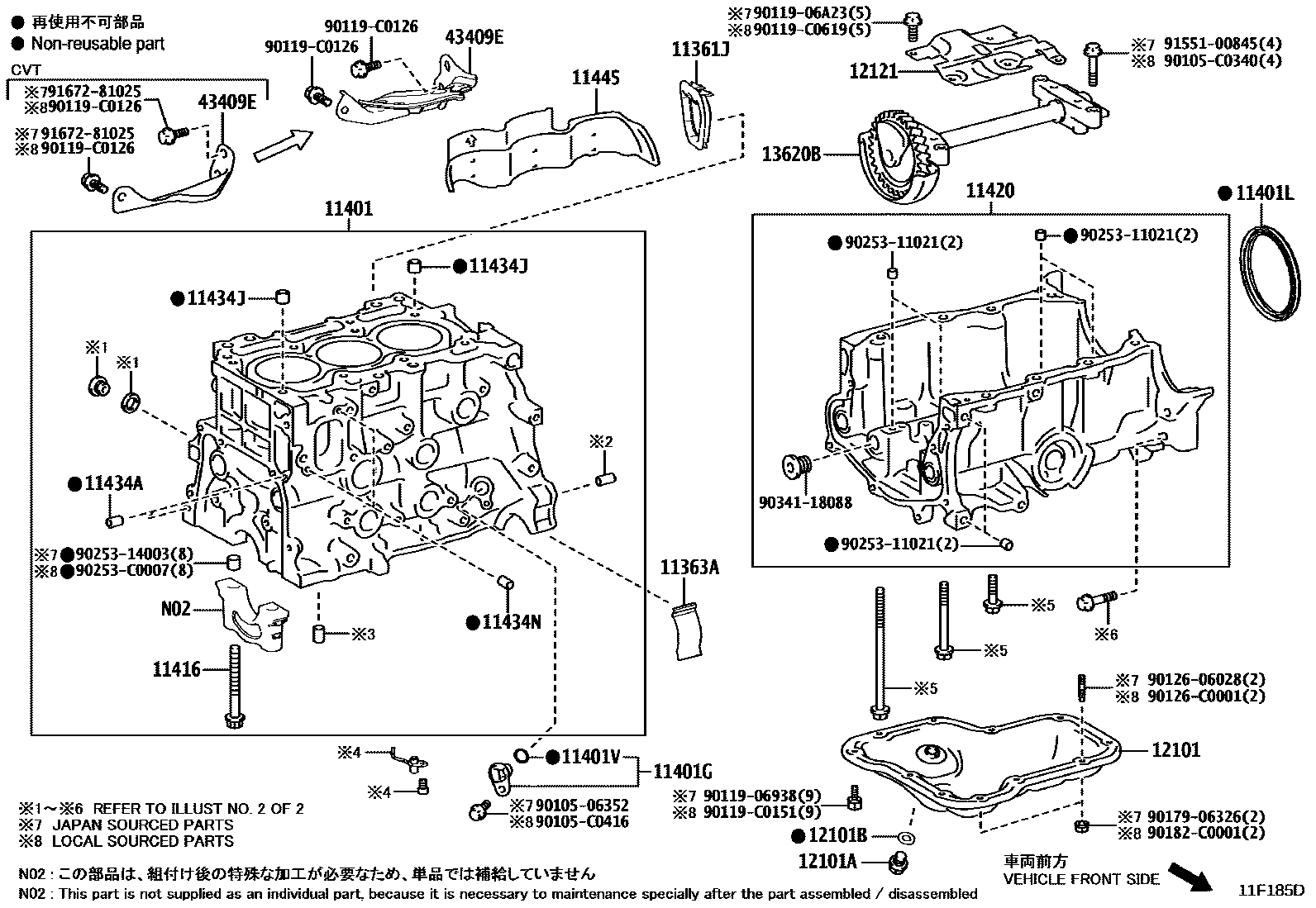

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
(L)
(J)
11363ACOVER, FLYWHEEL HOUSING SIDE
(L),TYPE A:REF ILL.
(J),TYPE A:REF ILL.
TYPE B:REFER ILLUST.
(J),TYPE B:REF ILL.
(L),TYPE B:REF ILL.
11401GSENSOR, CRANK POSITION
(J)
*665,*616
(L)
11401LSEAL, ENGINE REAR OIL
*602
*662,*252
*602,*662,*252
*602
*616
*662,*252
*665
11401VO-RING, CRANK POSITION SENSOR
*665,*616
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
(J)
*602
*665,*616
*662,*252
(L)
11420CRANKCASE ASSY, STIFFENING
*662,*252
*616
*602
*665
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0,*602
L=14,OD=6,(J),*665
L=14,OD=6,TYPE A
L=14,OD=6,*616
L=12,OD=4.0,*662,*252
L=12,OD=4.0
L=14,OD=6,TYPE B
L=14,OD=6,(L),*665
11434JPIN, RING (FOR CYLINDER HEAD SET)
(J)
*665,*616
*602
(L)
*662,*252
11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)
(J),*665
TYPE A
*616
(L),*665
TYPE B
11445SPACER, CYLINDER BLOCK WATER JACKET
*662,*252
*616
*602
*665
12101PAN SUB-ASSY, OIL
*616
*665
12101APLUG(FOR OIL PAN DRAIN)
*602
*616
*662,*252
*665
12101BGASKET(FOR OIL PAN DRAIN PLUG)
*616
*602
*662,*252
*665
12121PLATE, OIL PAN BAFFLE, NO.1
*616
*665
13620BBALANCER ASSY, ENGINE
*616
*665
43409EINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
9010506352
90105C0340
main90105-C0340
90105C0416
main90105-C0416
9011906938
9011906A23
90119C0126
main90119-C0126
90119C0151
main90119-C0151
90119C0619
main90119-C0619
9012606028
90126C0001
main90126-C0001
9017906326
90182C0001
main90182-C0001
9025311021
9025314003
90253C0007
main90253-C0007
9034118088
9155100845
9167281025
36 parts on this diagram · 8 diagrams in section
