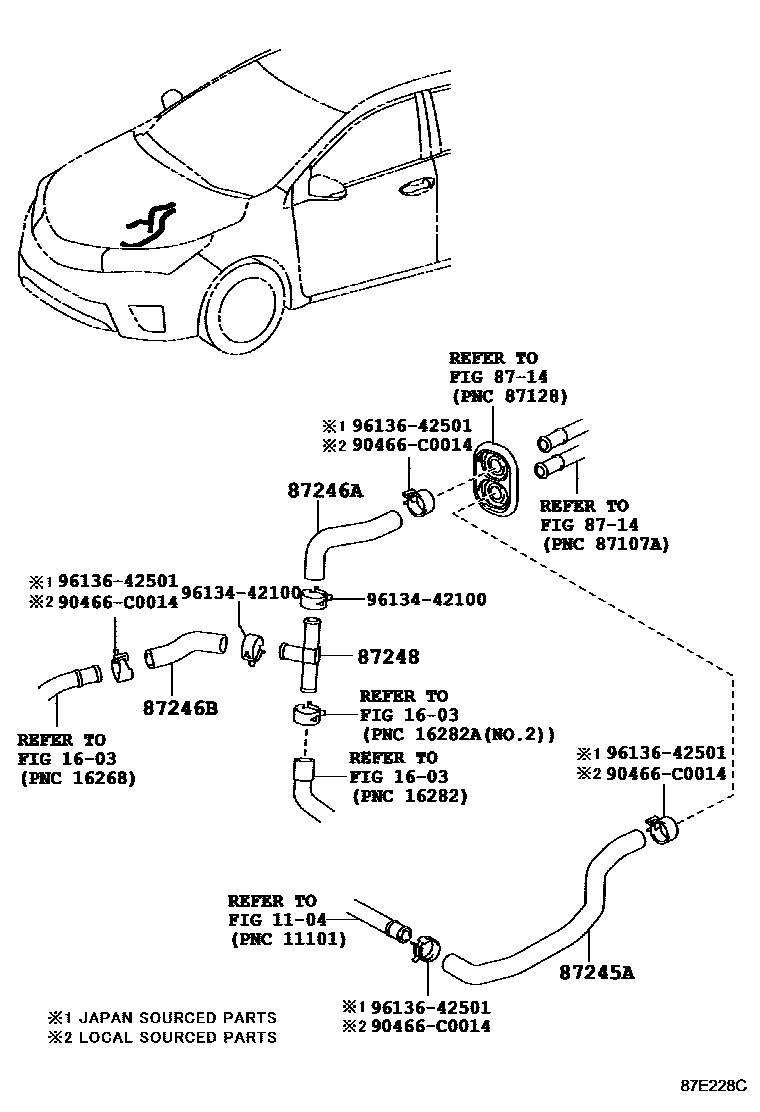

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

1104

1603

8714

87245AHOSE, HEATER WATER, INLET A

main87245-02C40iZRE18#201406-201802

main87245-02G40iNRE181201610-201703

main87245-02P10iZWE182201512-201703

87246AHOSE, HEATER WATER, OUTLET A

main87245-02C50iZRE18#..MTM201406

main87245-02L00iZRE18#..CVT201406-201802

main87245-02P20iZWE182201512-201703

main87245-02Q30iNRE181..6F201610-201703

main87245-02Q40iNRE181..CVT201610-201703

87246BHOSE, HEATER WATER, OUTLET B

main87245-02L10iZRE18#..CVT201406-201802

87248PIPE SUB-ASSY, WATER

main87248-12300iZRE182201406-201802

90466C0014

main90466-C0014

9613442100

main96134-42100

9613642501

main96136-42501

10 parts on this diagram · 5 diagrams in section
