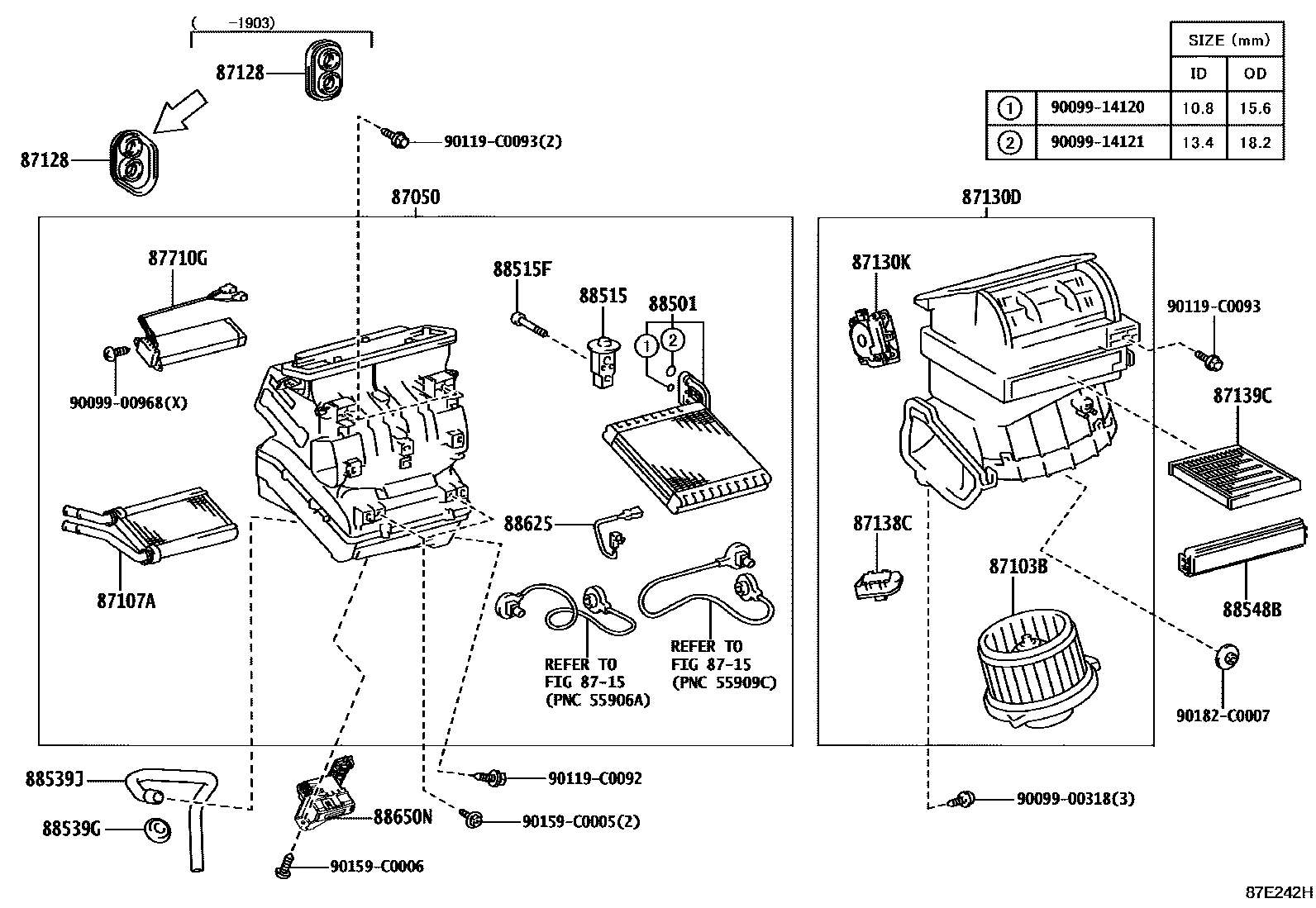

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02B50iNRE181,ZRE181..GL,GLI201406

main87050-02B60iNRE181,ZRE18#..GLXI,PREM201406-201703

main87050-02R20iZWE182201704

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02700iNRE181,ZRE181..GL,GLI201406-201907

main87103-02710iZWE182;NRE181,ZRE18#..GLXI,PREM201406-201703

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02220iZRE182201704-201802

87128GROMMET, HEATER

main87128-02020iNRE181,ZRE18#,ZWE182201406-201903

main87128-02220iZRE181201903

87130DBLOWER ASSY

main87130-02470iNRE181,ZRE181..GL,GLI201406

main87130-02480iZRE182201704-201802

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-02330iNRE181..GL,GLI201704

main87106-02340iZRE182201704-201802

87138CRESISTOR, BLOWER

main87138-02120iNRE181,ZRE181..GL,GLI201406

87139CFILTER, CLEAN AIR

main87139-0R020iNRE181,ZWE182201704

MICRO DUST FILTER,OE PART

main87139-50100iNRE181,ZWE182201704

POLLEN DEODORANT

8715

87710GQUICK HEATER ASSY

main87710-02120iZWE182201704

main87710-12020iNRE181201704

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02212iNRE181201704

main88501-02340iZWE182201512-201703

88515VALVE, COOLER EXPANSION

main88515-02130iZRE182201704-201802

main88515-02810iZWE182201802

main88515-0D200iZWE182201512-201703

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iNRE181,ZWE182201704

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iZRE182201704-201802

88539JHOSE, DRAIN COOLER

main88539-02390iNRE181,ZRE18#,ZWE182201406

88548BCASE, AIR FILTER

main88548-02100iNRE181,ZRE18#,ZWE182201406

88625THERMISTOR, COOLER, NO.1

main88625-0D100iNRE181,ZRE18#,ZWE182201406

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-02D00iZRE18#..GLXI,PREM201406-201407

main88650-02D01iZRE18#..GLXI,PREM201407-201610

main88650-02D10iZRE181..GL,GLI201406-201407

main88650-02D11iZRE181..GL,GLI201407

main88650-02E50iZWE182..GLI,GLXI201512-201703

main88650-02F20iZWE182..PREM201512-201703

main88650-02G40iZRE182201704-201802

main88650-02G50iNRE181..GL,GLI201704

main88650-02K00iZWE182..GLI,GLXI201704

main88650-02K10iZWE182..PREM201704

9009900318

main90099-00318

9009900968

main90099-00968

9009914120

main90099-14120

9009914121

main90099-14121

90119C0092

main90119-C0092

90119C0093

main90119-C0093

90159C0005

main90159-C0005

90159C0006

main90159-C0006

90182C0007

main90182-C0007

27 parts on this diagram · 2 diagrams in section
