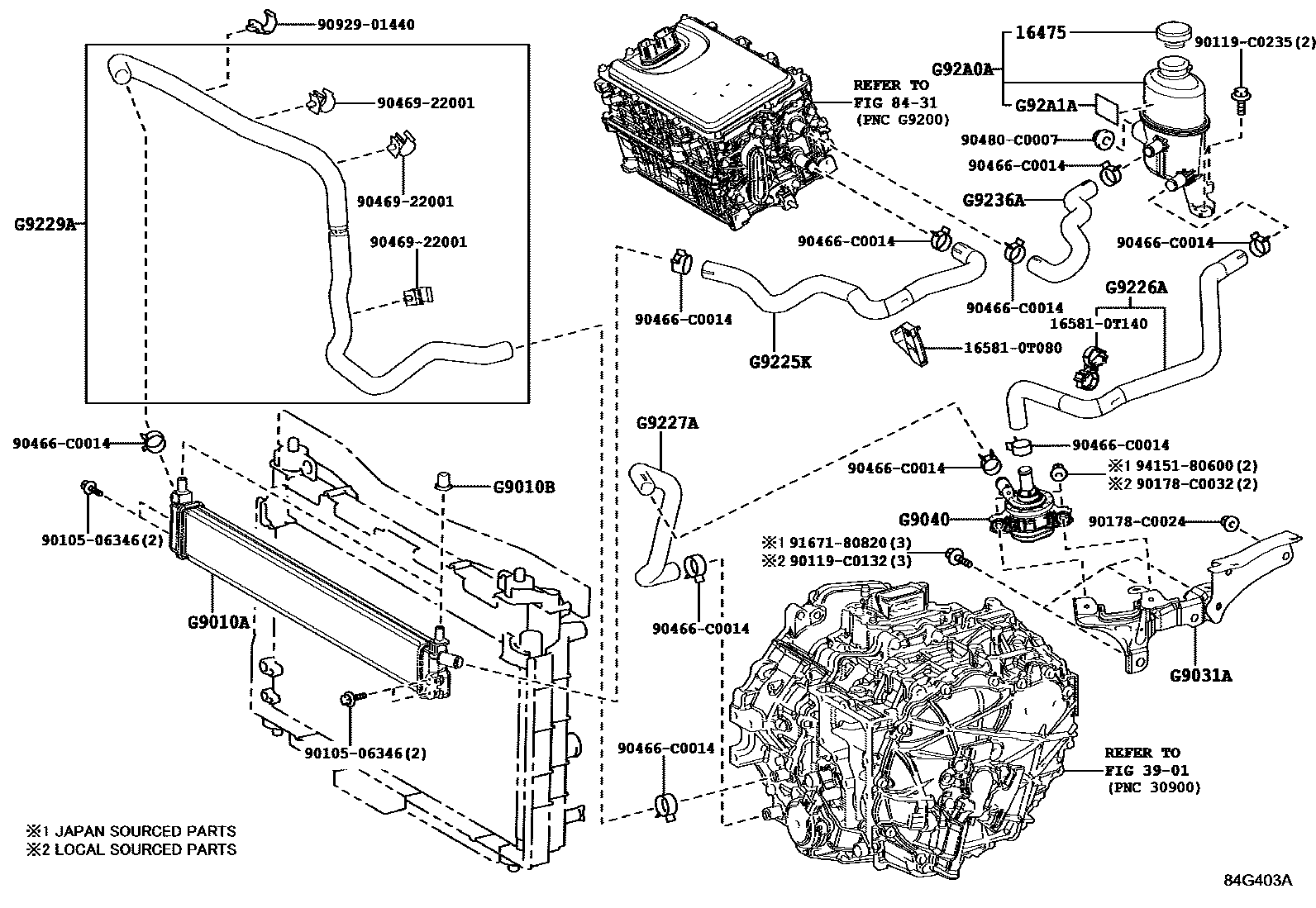

INVERTER COOLING

16475CAP, RESERVE TANK

main16475-28140i8ZRFXE..ZWE182201612-201703

main16475-37011i8ZRFXE..ZWE182201512-201611

sub16475-28140

3901

8431

G9010ARADIATOR ASSY

mainG901012010iZWE182201512-201703

G9010BCUSHION, INVERTER RADIATOR

main16716-37010iZWE182201512-201703

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG903102010iZWE182201512-201703

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052020iZWE182201512-201703

G9225KHOSE, INVERTER COOLING, NO.1

mainG922502020iZWE182201512-201703

G9226AHOSE, INVERTER COOLING, NO.2

mainG922602020iZWE182201512-201703

G9227AHOSE, INVERTER COOLING, NO.3

mainG922702020iZWE182201512-201703

G9229AHOSE, INVERTER COOLING, NO.5

mainG922902010iZWE182201512-201703

G9236AHOSE, INVERTER COOLING, NO.6

mainG923602010iZWE182201512-201703

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H002020iZWE182201512-201703

subG910G-02010

sub16475-0T081

G92A1ALABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A176010iZWE182201512-201703

165810T080CLAMP, HOSE(FOR WATER HOSE)

main16581-0T080

165810T140CLAMP, HOSE(FOR WATER HOSE)

main16581-0T140

9010506346

main90105-06346

90119C0132

main90119-C0132

90119C0235

main90119-C0235

90178C0024

main90178-C0024

90178C0032

main90178-C0032

90466C0014

main90466-C0014

9046922001

main90469-22001

90480C0007

main90480-C0007

9092901440

main90929-01440

9167180820

main91671-80820

9415180600

main94151-80600

27 parts on this diagram · 1 diagram in section
