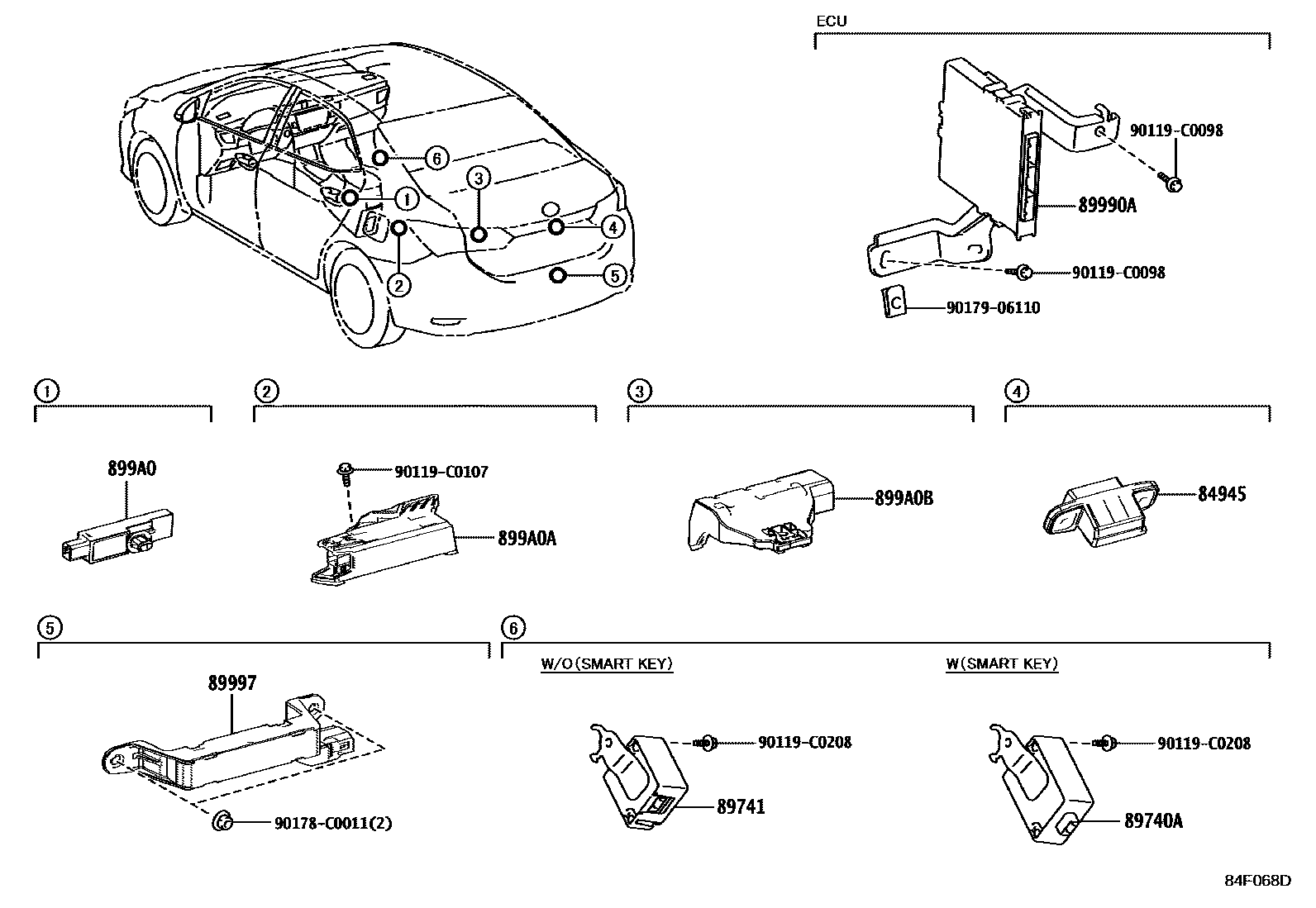

WIRELESS DOOR LOCK

0001 1 0003 1

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84945-02040iZRE182201704-201802

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-02180iZWE182;NRE181,ZRE18#..GLXI,PREM201406-201703

89741RECEIVER, DOOR CONTROL

main89741-02190iNRE181..GL,GLI201704-201907

VFM PACKAGE(*CRC & *SES)

89990ACOMPUTER ASSY, SMART KEY

main89990-02100iZRE18#..GLXI,PREM201406-201610

main89990-02320supersedes 89990-02330iZWE182..GLXI,PREM201512-201703

main89990-02430iNRE181..GLXI201704

89997ANTENNA, ELECTRICAL KEY

main89997-02060iZWE182;NRE181,ZRE18#..GLXI,PREM201406-201703

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-0D070iZWE182;NRE181,ZRE18#..GLXI,PREM201406-201703

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-02130iZRE182201704-201802

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-02140iNRE181,ZRE18#..GLXI,PREM201406-201703

main899A0-02170iZWE182201704

90119C0098

main90119-C0098

90119C0107

main90119-C0107

90119C0208

main90119-C0208

90178C0011

main90178-C0011

9017906110

main90179-06110

13 parts on this diagram · 2 diagrams in section
