WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 1/2 0003 1ENGINE ROOM 2/2 0004 1ENGINE 0005 1ENGINE 0006 1ENGINE 0007 1ENGINE 0008 1INSTRUMENT PANEL 0009 1DOOR 0010 1SEAT 0011 1FLOOR & ROOF 0012 1HIGH-TENSION CABLE 0013 1CLAMP & BRACKET 0014 1CLAMP & BRACKET 0015 1CONNECTOR 1/3 0016 1CONNECTOR 2/3 0017 1CONNECTOR 3/3

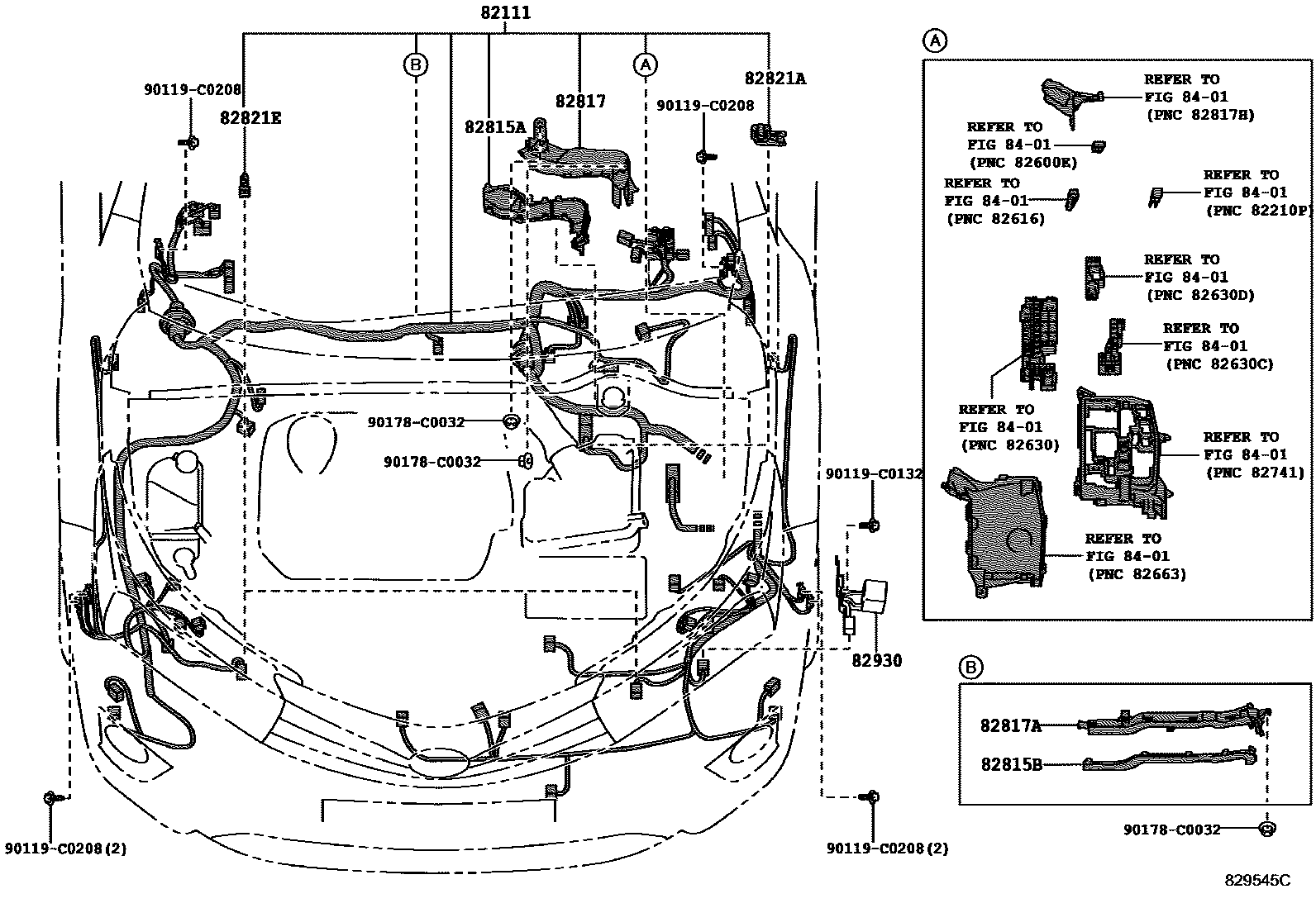

82111WIRE, ENGINE ROOM MAIN

main82111-F2A20iNRE181..6F..GLI201704

main82111-F2A30iNRE181..CVT..GLI201704

main82111-F2A40iNRE181..GLXI201704

main82111-F2A50iZRE182201704-201802

main82115-0ZY50iZRE181..5F..GLI201406-201609

LEATHER PACKAGE

main82115-0ZY60iZRE182..6F201406-201609

main82115-0ZY70iZRE181..CVT..(GL,GLI)201406-201802

main82115-0ZY71iZRE181..CVT201802

main82115-0ZY80iZRE181..CVT..GLXI201406-201609

LEATHER PACKAGE

main82115-0ZZ00iZRE182..CVT201406-201610

main82115-F2D20iNRE181..CVT..GLI201803

VFM PACKAGE(*CRC & *SES)&AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER

main82115-F2F90iZRE181..5F201803

AUDIOLESS PACKAGE

main82116-02Q30iZRE181..5F..(GL,GLI)201406-201802

main82116-02Q31iZRE181..5F201802

main82116-02W90iZWE182..GLI201512-201703

main82116-02W91iZWE182..GLI201704

main82116-0Z140iZWE182..GLI201512-201703

MOON ROOF PACKAGE

main82116-0Z141iZWE182..GLI201704

MOON ROOF PACKAGE(*MR & *LES)

main82116-0Z141iZWE182..GLI201803

VFM PACKAGE(*CRC & *SES & *MR & *LES)

main82116-0Z150iZWE182..GLXI,PREM201512-201703

main82116-0Z151iZWE182..GLXI,PREM201704

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER

main82116-0Z151iZWE182..GLXI,PREM201704

AUDIO-AVN(ACCESSORY) & 6SPEAKER

main82116-0ZR30iNRE181..6F..(GL,GLI)201610-201703

main82116-0ZR40iNRE181..CVT..(GL,GLI)201610-201703

main82116-0ZR50iNRE181..6F..GLI201610-201703

LEATHER PACKAGE

main82116-0ZR60iNRE181..CVT..GLI201610-201703

LEATHER PACKAGE

main82116-0ZR70iZRE182201610-201703

main82116-0ZT10iNRE181..6F..GL201704

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER

main82116-0ZT20iNRE181..6F..GLI201704

LEATHER PACKAGE(*LES)&AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER

main82116-0ZT30iNRE181..CVT..GLI201704

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER

main82116-0ZT31iNRE181..CVT..GL201803

VFM PACKAGE(*CRC & *SES)

main82116-0ZT40iNRE181..GLXI201704

LEATHER PACKAGE(*LES)&AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER

main82116-0ZT40iNRE181..CVT..GLI201704

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER

main82116-0ZT50iZRE182..PREM201704-201802

AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER

main82116-0ZT50iZRE182201704-201802

AUDIO-AVN(ACCESSORY) & 6SPEAKER

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-02520iNRE181,ZRE18#201406-201802

main82815-47390iZWE182201512-201703

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-02530iNRE181,ZRE18#201406-201802

main82815-47560iZWE182201512-201703

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-02F90iNRE181,ZRE18#201406-201802

main82817-47620iZWE182201512-201703

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-02G00iZRE182201406-201802

main82817-47800iZWE182201512-201703

82821ACOVER, CONNECTOR

main82821-02080iNRE181,ZRE18#201406-201802

82821ECOVER, CONNECTOR

main82821-42040iNRE181,ZRE18#,ZWE182201406-201802

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-12010iNRE181,ZRE182201610-201802

8401

90119C0132

main90119-C0132

90119C0208

main90119-C0208

90178C0032

main90178-C0032

12 parts on this diagram · 17 diagrams in section
