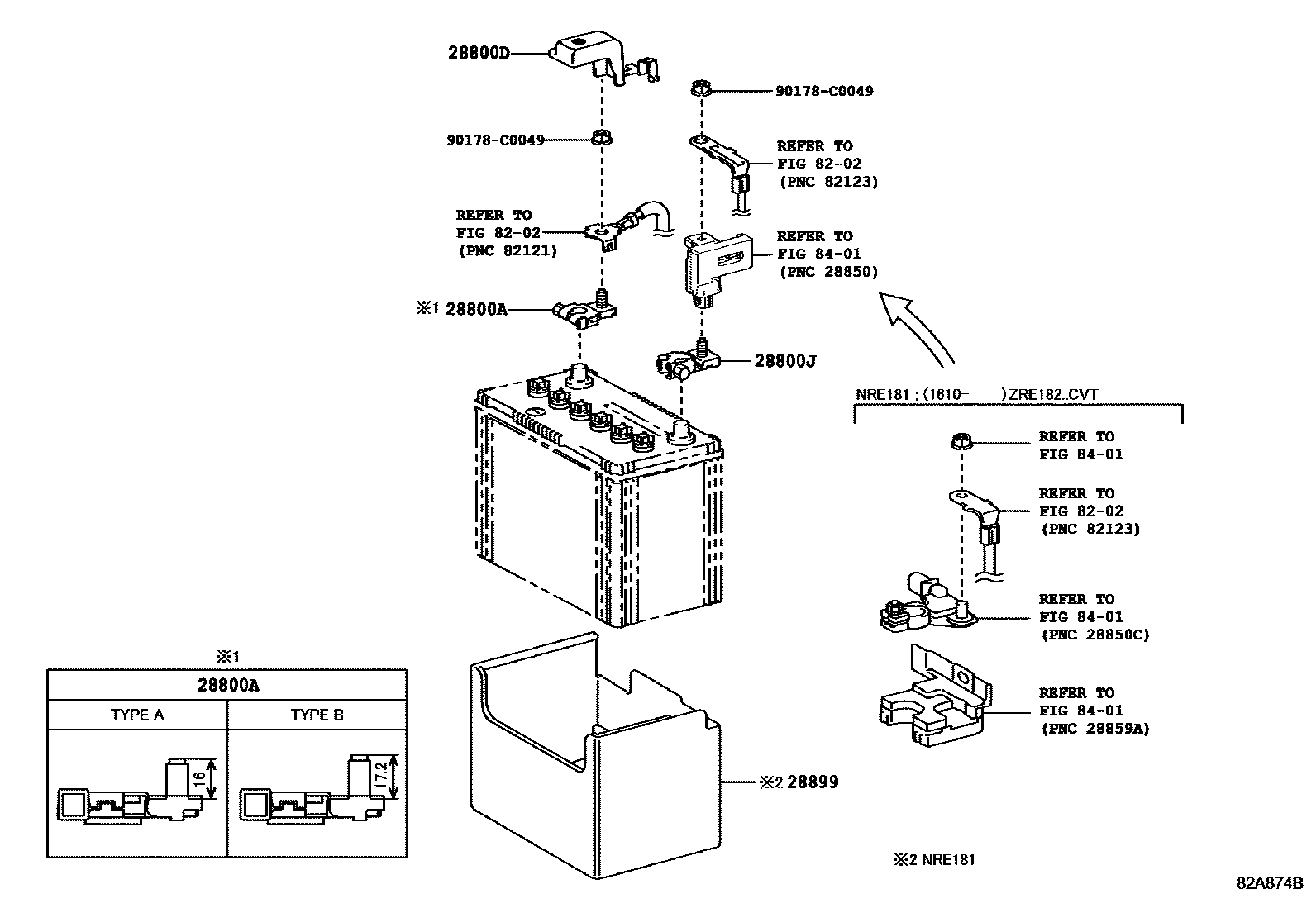

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i9NRFTS..NRE181201406-201802

TYPE A:REFER ILLUST.

main90982-05061i2ZRFE..ZRE182..CVT201406-201610

TYPE B:REFER ILLUST.

main90982-05062i8ZRFXE..ZWE182201512-201703

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-02060i8ZRFXE..ZWE182201512-201703

main82821-12490i9NRFTS,1ZRFE,2ZRFE..NRE181,ZRE18#201406-201802

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1ZRFE..ZRE181;2ZRFE..ZRE182..6F201406-201610

main90982-06070i8ZRFXE..ZWE182201512-201703

28899INSULATOR, BATTERY

main28899-0Y050i9NRFTS..NRE181201610-201703

8202

8401

90178C0049

main90178-C0049

7 parts on this diagram · 5 diagrams in section
