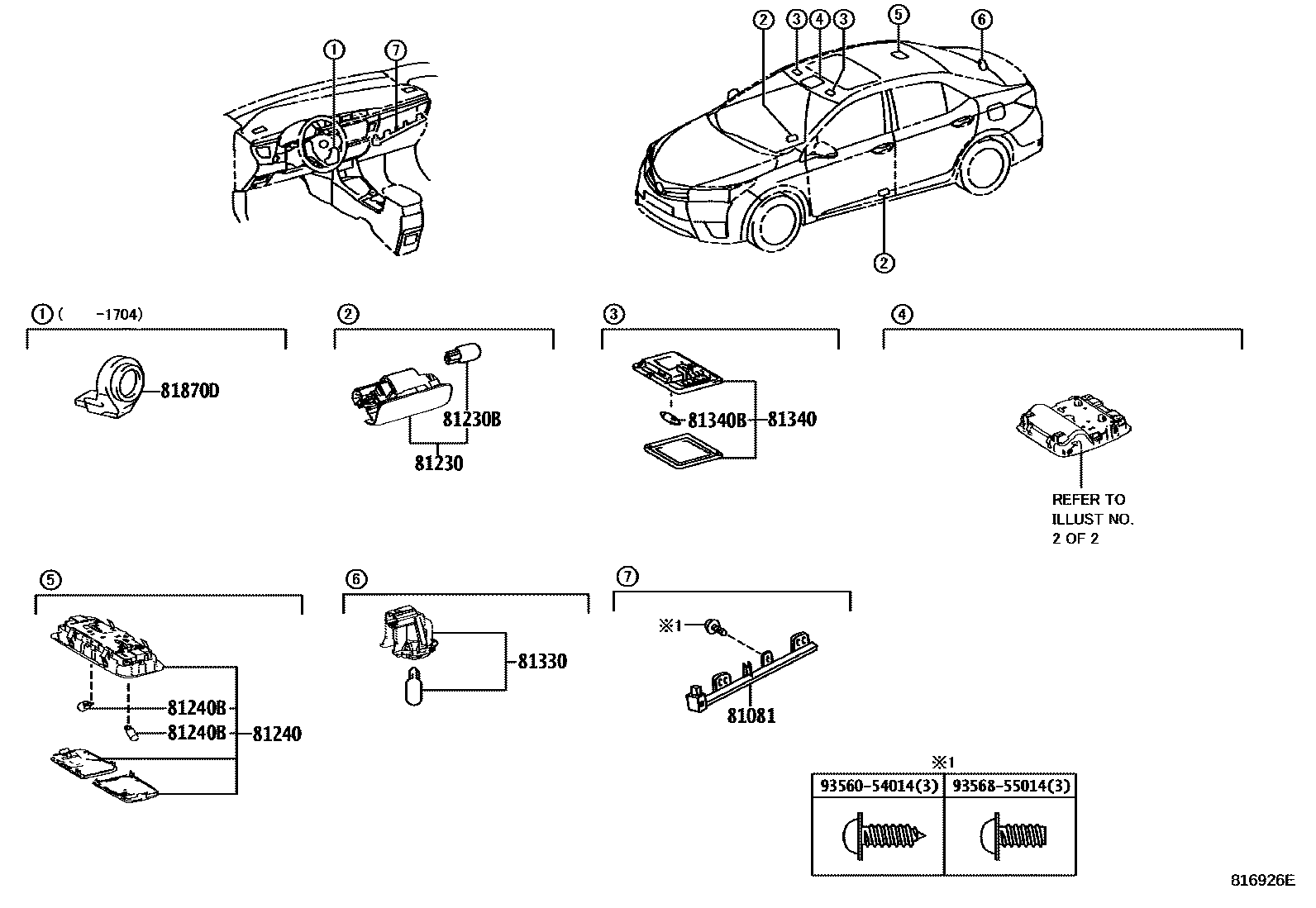

INTERIOR LAMP

0001 1 0002 1

81081LAMP SUB-ASSY, INTERIOR ILLUMINATION

main81081-02030iZWE182;NRE181..GLXI201704-201802

81230LAMP ASSY, COURTESY

main81230-30200iNRE181..GLI201704

LEATHER PACKAGE(*LES)

main81230-30200iNRE181,ZRE18#,ZWE182..GLXI,PREM201406

LEATHER PACKAGE

main81230-30200iZRE182201704-201802

81230BBULB(FOR COURTESY LAMP)

main90981-12010iNRE181..GLI201406-201802

12V 5W

main90981-12010iNRE181..GLI201704

12V 5W,LEATHER PACKAGE(*LES)

main90981-12010iNRE181,ZRE18#,ZWE182..GLXI,PREM201406

12V 5W,LEATHER PACKAGE

81240LAMP ASSY, ROOM, NO.1

main81360-02010-A0iNRE181,ZRE18#,ZWE182201406

IVORY,TRIM0#

main81360-02010-A1iZRE181201704-201802

FLAXEN,TRIM0#

main81360-02010-B0iZRE182201406-201802

LT.GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90981-11062iNRE181,ZRE18#,ZWE182201406-201802

12V 8W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-0D040iZRE182201406-201802

81340LAMP ASSY, VANITY

main81340-33140-A2iZRE182,ZWE182..PREM201406

IVORY,TRIM0#

sub81340-33140

main81340-33140-A3iZWE182..PREM201704-201802

FLAXEN,TRIM0#

sub81340-33140

main81340-33140-B0iZRE182..PREM201406-201802

LT.GRAY,TRIM2#

sub81340-33140

81340BBULB (FOR VANITY LAMP)

main99132-13050iZWE182..PREM201406-201802

12V 5W

81870DLAMP ASSY, KEY CYLINDER

main81870-02010iNRE181,ZRE181..GL201406

9356054014

main93560-54014

9356855014

main93568-55014

11 parts on this diagram · 2 diagrams in section
