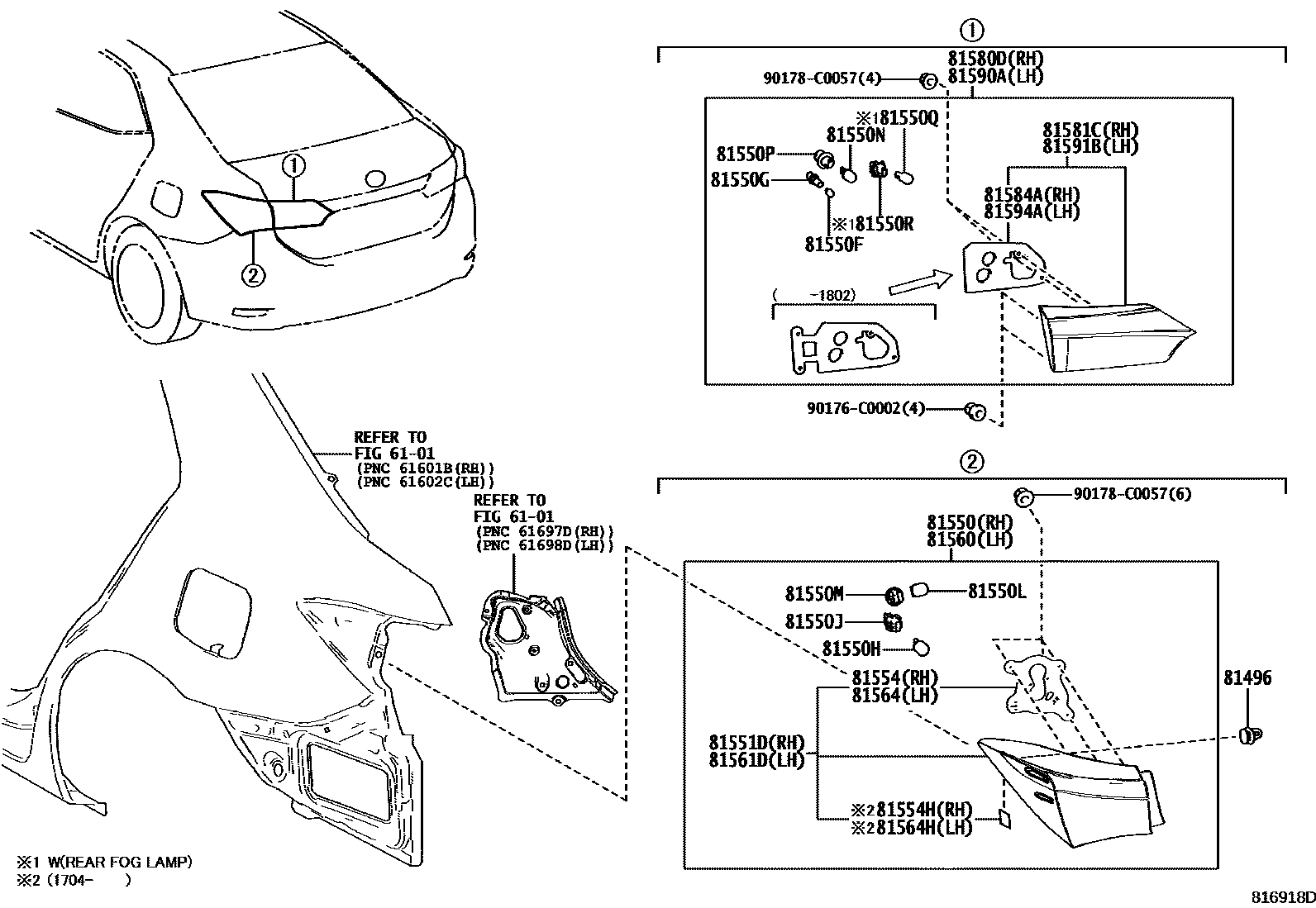

REAR COMBINATION LAMP

0001 1STOP LAMP = BULB TYPE 0002 1STOP LAMP = LED TYPE 0004 1STOP LAMP = LED TYPE 0005 1

6101

81496GUIDE, REAR COMBINATION LAMP

main90467-C0019iZRE182201406-201802

81550LAMP ASSY, REAR COMBINATION, RH

main81550-02690iZWE182201512-201703

main81550-02860iNRE181,ZRE181..GL,GLI201406-201703

sub81550-02861

main81550-02861iZRE181201704-201705

main81550-02870iNRE181,ZRE18#..GLXI,PREM201406-201703

LEATHER PACKAGE

sub81550-02871

main81550-02C50iZRE181201704-201706

sub81550-02C51

main81550-02C51iNRE181..GL,GLI201706

81550FBULB, TAILLAMP

main90981-CB001iNRE181,ZRE181..GL,GLI201406

12V 5W

81550GSOCKET, TAILLAMP

main90069-81102iNRE181,ZRE181..GL,GLI201406

81550HBULB, TAIL & STOP LAMP

main90981-CB003iNRE181,ZRE181..GL,GLI201406

12V 21/5W

81550JSOCKET, TAIL & STOP LAMP

main90069-81099iNRE181,ZRE181..GL,GLI201406

81550LBULB, REAR TURN SIGNAL LAMP

main90981-CB004iNRE181,ZRE18#,ZWE182201406-201802

12V 21W

81550MSOCKET, REAR TURN SIGNAL LAMP

main90069-81098iNRE181,ZRE18#,ZWE182201406-201802

81550NBULB, BACK UP LAMP

main90981-CB002iNRE181,ZRE18#,ZWE182201406-201802

12V 21W

81550PSOCKET, BACK UP LAMP

main90069-81101iNRE181,ZRE18#,ZWE182201406-201802

81550QBULB, REAR FOG LAMP, NO.1

main90981-CD005iNRE181,ZRE18#201406

12V 21W

81550RSOCKET, REAR FOG LAMP

main90069-81100iNRE181,ZRE18#201406

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-02860iNRE181,ZRE181..GL,GLI201406-201704

sub81551-02861

main81551-02861iZRE181201704-201705

main81551-02C10iZRE182201704-201802

main81551-02C10iNRE181..GLXI201704

LEATHER PACKAGE(*LES)

main81551-02C50iZRE181201704-201707

sub81551-02C51

main81551-02C51iNRE181..GL,GLI201706

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-02860iNRE181..GL,GLI201406

main81552-02870iNRE181..GLI201704

LEATHER PACKAGE(*LES)

main81552-02870iZWE182;NRE181,ZRE18#..GLXI,PREM201406-201703

LEATHER PACKAGE

main81552-02870iZRE182201704-201802

81554HPACKING, REAR COMBINATION LAMP, RH

main81554-02C10iNRE181,ZRE182201704-201712

sub81554-02C11

main81554-02C11iNRE181201712-201802

81560LAMP ASSY, REAR COMBINATION, LH

main81560-02690iZWE182201512-201703

main81560-02860iNRE181,ZRE181..GL,GLI201406-201703

sub81560-02861

main81560-02861iZRE181201704-201705

main81560-02870iNRE181,ZRE18#..GLXI,PREM201406-201703

LEATHER PACKAGE

sub81560-02871

main81560-02C00iZRE181201704-201706

sub81560-02C01

main81560-02C01iNRE181..GL,GLI201706

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-02860iNRE181,ZRE181..GL,GLI201406-201704

sub81561-02861

main81561-02861iZRE181201704-201705

main81561-02B80iNRE181..GLI201704

LEATHER PACKAGE(*LES)

main81561-02B80iZRE182201704-201802

main81561-02C00iZRE181201704-201707

sub81561-02C01

main81561-02C01iZRE181201706

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-02860iNRE181..GL,GLI201406

main81552-02870iNRE181..GLI201704

LEATHER PACKAGE(*LES)

main81552-02870iZWE182;NRE181,ZRE18#..GLXI,PREM201406-201703

LEATHER PACKAGE

main81552-02870iZRE182201704-201802

81564HPACKING, REAR COMBINATION LAMP, LH

main81554-02C10iNRE181,ZRE182201704-201712

sub81554-02C11

main81554-02C11iZRE181201712-201802

81580DLAMP ASSY, REAR, RH

main81580-02430iZWE182201512-201703

main81580-02730iNRE181,ZRE181..GL,GLI201406-201703

sub81580-02731

main81580-02731iZRE181201704-201705

main81580-02740iNRE181,ZRE181..GLI201406-201703

LEATHER PACKAGE

sub81580-02741

main81580-02770iNRE181..GL,GLI201704

main81580-02B20iNRE181..GLI201704

LEATHER PACKAGE(*LES)

main81580-02B20iZRE182201704-201802

81581CLENS AND BODY, REAR LAMP, RH

main81581-02730iNRE181,ZRE181..GL,GLI201406-201704

sub81581-02731

main81581-02731iZRE181201704-201705

main81581-02770iZRE181201704-201802

sub81581-02771

main81581-02771iNRE181..GL,GLI201802

81584AGASKET, REAR LAMP RH

main81584-02430iZWE182201512-201802

main81584-02431iZWE182201802

main81584-02730iNRE181,ZRE181..GL,GLI201406-201802

sub81584-02770

main81584-02740iNRE181,ZRE181..GLI201406-201703

LEATHER PACKAGE

main81584-02770iNRE181..GL,GLI201802

main81584-02B20iNRE181..GLI201704-201802

LEATHER PACKAGE(*LES)

sub81584-02B21

main81584-02B21iNRE181..GLXI201802

LEATHER PACKAGE(*LES)

81590ALAMP ASSY, REAR, LH

main81590-02430iZWE182201512-201703

main81590-02610iNRE181..GLXI201704

LEATHER PACKAGE(*LES)

main81590-02610iZRE182201704-201802

main81590-02670iNRE181..GL,GLI201704

main81590-02730iNRE181,ZRE181..GL,GLI201406-201703

sub81590-02731

main81590-02731iZRE181201704-201705

main81590-02740iNRE181,ZRE181..GLI201406-201703

LEATHER PACKAGE

sub81590-02741

81591BLENS AND BODY, REAR LAMP, LH

main81591-02670iNRE181..GL,GLI201704-201802

sub81591-02671

main81591-02671iZRE181201802

main81591-02730iNRE181,ZRE181..GL,GLI201406-201704

sub81591-02731

main81591-02731iZRE181201704-201705

81594AGASKET, REAR LAMP LH

main81584-02430iZWE182201512-201802

main81584-02431iZWE182201802

main81584-02730iNRE181,ZRE181..GL,GLI201406-201802

sub81584-02770

main81584-02740iNRE181,ZRE18#..GLXI,PREM201406-201703

LEATHER PACKAGE

main81584-02770iNRE181..GL,GLI201802

main81584-02B20iNRE181..GLI201704-201802

LEATHER PACKAGE(*LES)

sub81584-02B21

main81584-02B21iNRE181..GLXI201802

LEATHER PACKAGE(*LES)

90176C0002

main90176-C0002

90178C0057

main90178-C0057

28 parts on this diagram · 4 diagrams in section
