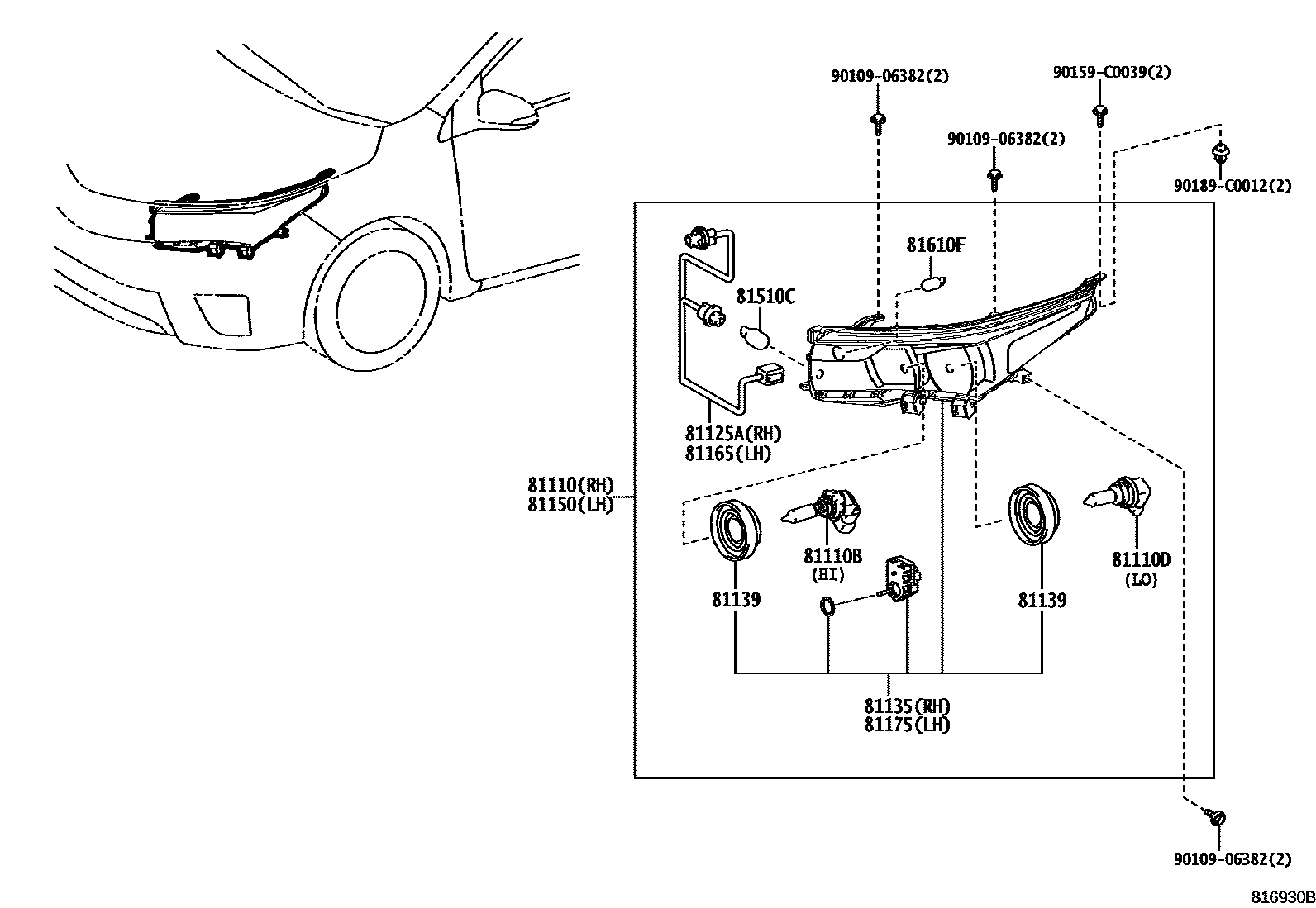

HEADLAMP

0001 1 0003 1 0004 1 0005 1LED HEADLAMP 0007 1HALOGEN HEADLAMP

81110HEADLAMP ASSY, RH

main81110-02J00iZRE181201406-201411

main81110-02J01iNRE181,ZRE181201412

main81110-02J10iZRE182201406-201703

main81110-02K00supersedes 81110-02K10iZWE182..GLXI,PREM201704

main81110-02P80iNRE181201704

main81110-02P90iZRE182201704-201802

main81110-02M30iZRE181..5F201803

AUDIOLESS PACKAGE

main81110-02P70iNRE181,ZRE181..GLI201510-201703

LEATHER PACKAGE&DARK CHROME PACKAGE

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iZRE182201406-201703

12V65W(SAE),60W(ECE)

main90981-CD009×2iNRE181,ZRE181201406

12V 60W

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075×2iZRE182201406-201703

12V 55W,HALOGEN,PHILIPS

main90981-13085×2iZRE182201406-201703

12V 55W,HALOGEN,OSRAM

main90981-CD008×2iNRE181,ZRE181201406

12V 55W

81125ACORD, HEADLAMP, RH

main81125-02J00iNRE181,ZRE181201406

main81125-02K00iZWE182201512-201703

81135UNIT ASSY, HEADLAMP, RH

main81130-02J00iZRE181201406-201412

main81130-02J01iNRE181,ZRE181201412

main81130-02J10iZRE182201406-201703

main81130-02M30iZRE181..5F201803

AUDIOLESS PACKAGE

main81130-02P70iNRE181,ZRE181..GLI201510-201703

LEATHER PACKAGE&DARK CHROME PACKAGE

81139COVER, HEADLAMP SOCKET

main81135-02400×4iZRE182201406-201703

main90075-65022×2iNRE181201704

81150HEADLAMP ASSY, LH

main81150-02J00iZRE181201406-201411

main81150-02J01iNRE181,ZRE181201412-201704

main81150-02J02iZRE181201704

main81150-02J10iZRE182201406-201703

main81150-02K00supersedes 81150-02K10iZWE182..GLXI,PREM201704

main81150-02P80iNRE181201704

main81150-02P90iZRE182201704-201802

main81150-02L20iZRE181..5F201803

AUDIOLESS PACKAGE

main81150-02P70iNRE181,ZRE181..GLI201510-201703

LEATHER PACKAGE&DARK CHROME PACKAGE

81165CORD, HEADLAMP, LH

main81125-02J00iNRE181,ZRE181201406

main81125-02K00iZWE182201512-201703

81175UNIT ASSY, HEADLAMP, LH

main81170-02J00iZRE181201406-201412

main81170-02J01iNRE181,ZRE181201412-201704

main81170-02J02iZRE181201704

main81170-02J10iZRE182201406-201703

main81170-02L20iZRE181..5F201803

AUDIOLESS PACKAGE

main81170-02P70iNRE181,ZRE181..GLI201510-201703

LEATHER PACKAGE&DARK CHROME PACKAGE

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iZRE182,ZWE182201406-201703

12V 21W,AMBER

main90981-CB004×2iNRE181201704

12V 21W

81610FBULB(FOR CLEARANCE LAMP)

main90981-CB001×2iNRE181,ZRE181201406

12V 5W

9010906382

main90109-06382

90159C0039

main90159-C0039

90189C0012

main90189-C0012

14 parts on this diagram · 5 diagrams in section
