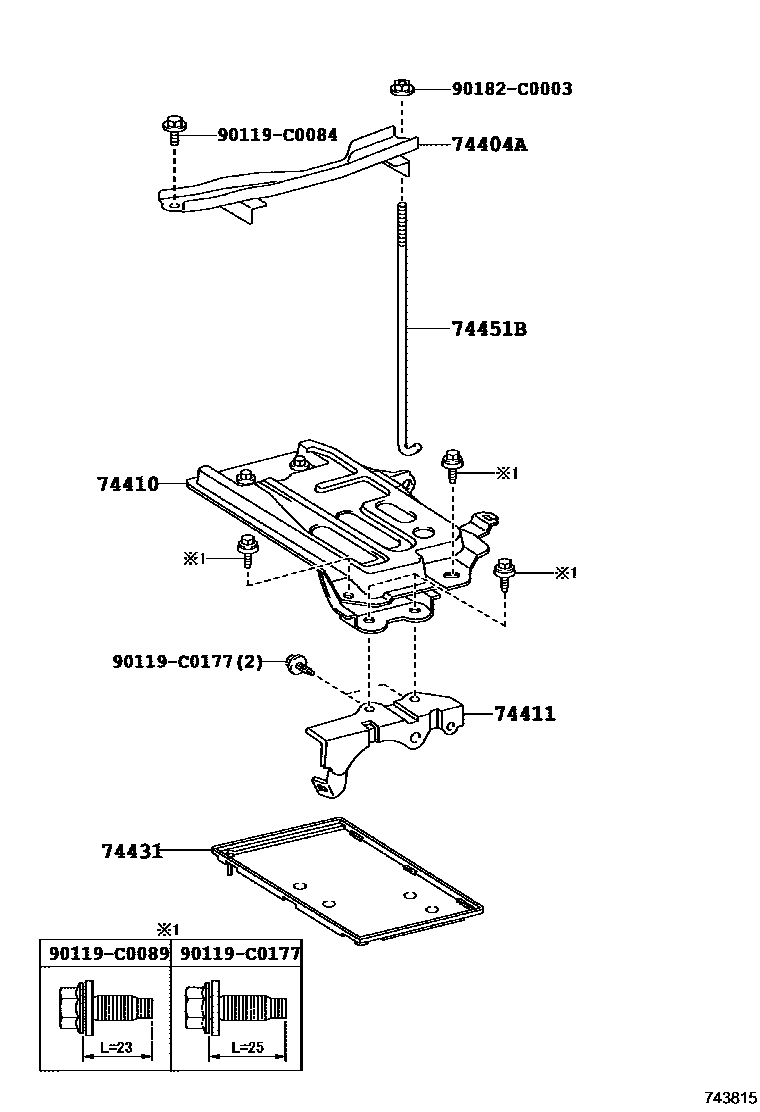

BATTERY CARRIER

0001 1 0002 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-02530iNRE181,ZRE18#201406-201802

74410CARRIER ASSY, BATTERY

main74410-02070iNRE181,ZRE18#201406-201802

74411CARRIER, BATTERY

main74401-02030iNRE181201406-201802

main74403-02030iZWE182201512-201703

74431TRAY, BATTERY

main74431-02240iNRE181,ZRE18#201406-201802

74451BBOLT, BATTERY CLAMP

main74451-58011iNRE181,ZRE18#201406-201802

90119C0084

main90119-C0084

90119C0089

main90119-C0089

90119C0177

main90119-C0177

90182C0003

main90182-C0003

9 parts on this diagram · 2 diagrams in section
