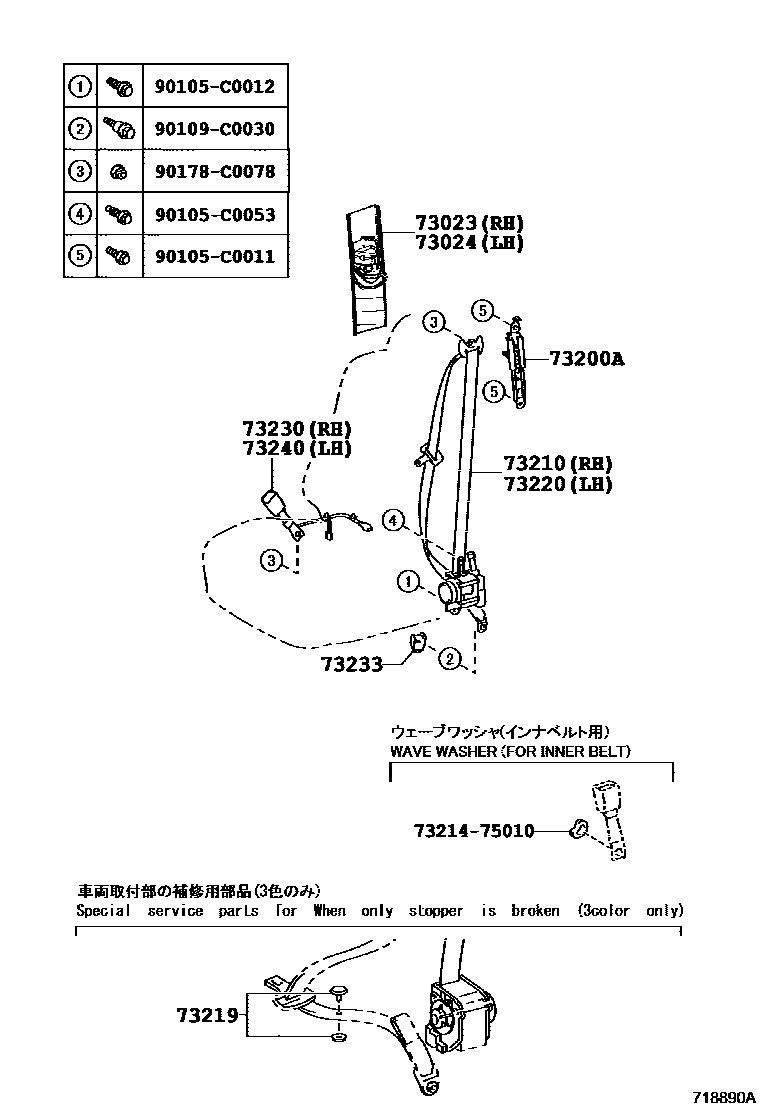

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1REAR

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02070-A0iNRE181,ZRE18#,ZWE182201406-201704

IVORY,TRIM0#

main73023-02070-A1iZRE181201704

FLAXEN,TRIM0#

main73023-02070-B0iZRE182201704-201802

LT.GRAY,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02070-A0iNRE181,ZRE18#,ZWE182201406-201704

IVORY,TRIM0#

main73024-02070-A1iZRE181201704

FLAXEN,TRIM0#

main73024-02070-B0iNRE181,ZRE18#,ZWE182201406

LT.GRAY,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0G020×2iNRE181,ZRE18#,ZWE182201406

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02620-A0iNRE181,ZWE182201512-201703

IVORY,TRIM0#

main73210-02620-A1iZRE182201704-201802

FLAXEN,TRIM0#

main73210-02620-C0iNRE181,ZWE182201512-201703

BLACK,TRIM2#

main73210-02630-A0iZRE182..CVT201406-201610

IVORY,TRIM0#

main73210-02630-A1iZRE181201704

FLAXEN,TRIM0#

main73210-02630-C0iZRE181..GL201503

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iZRE182201704-201802

BLACK

main73219-33020iZRE182201704-201802

GRAY

main73219-33030iNRE181,ZRE18#,ZWE182201406

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02440-A0iNRE181,ZWE182201512-201703

IVORY,TRIM0#

main73220-02440-A1iZRE182201704-201802

FLAXEN,TRIM0#

main73220-02440-C0iZRE182201610-201703

BLACK,TRIM2#

main73220-02570-A0iZRE182..CVT201406-201610

IVORY,TRIM0#

main73220-02570-A1iZRE181201704

FLAXEN,TRIM0#

main73220-02570-C0iZRE182..6F;ZRE181..GLI,GLXI201406

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02A80-A0iNRE181,ZRE18#,ZWE182201406-201704

IVORY,TRIM0#

main73230-02A80-A1iZRE182201704-201802

FLAXEN,TRIM0#

main73230-02A80-C0iZRE181..GLI,GLXI;NRE181,ZRE182,ZWE182201406

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0R030-A0×2iNRE181,ZRE18#,ZWE182..GLI,GLXI,PREM201406-201703

IVORY,TRIM0#

main73233-0R030-C0×2iZRE181201704

BLACK,TRIM0#,2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02A70-A0iZWE182..GLXI;NRE181,ZRE18#..GLI,GLXI201406-201703

IVORY,TRIM0#

main73230-02A70-A1iNRE181,ZWE182..GL,GLI,GLXI201704

FLAXEN,TRIM0#

main73230-02A70-C0iNRE181,ZWE182..GL,GLI,GLXI201704

BLACK,TRIM2#

main73230-02A90-A0iZWE182..GLI;NRE181,ZRE181..GL201406-201704

IVORY,TRIM0#

main73230-02A90-A1iZRE181201704

FLAXEN,TRIM0#

main73230-02A90-C0iZWE182..GLI;NRE181,ZRE181..GL201503

BLACK,TRIM2#

main73230-02B00-A0iZRE182,ZWE182..PREM201406-201703

IVORY,TRIM0#

main73230-02B00-A1iZWE182..PREM201704

FLAXEN,TRIM0#

main73230-02B00-C0iZRE182..PREM201704-201802

BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105C0011

main90105-C0011

90105C0012

main90105-C0012

90105C0053

main90105-C0053

90109C0030

main90109-C0030

90178C0078

main90178-C0078

15 parts on this diagram · 2 diagrams in section
