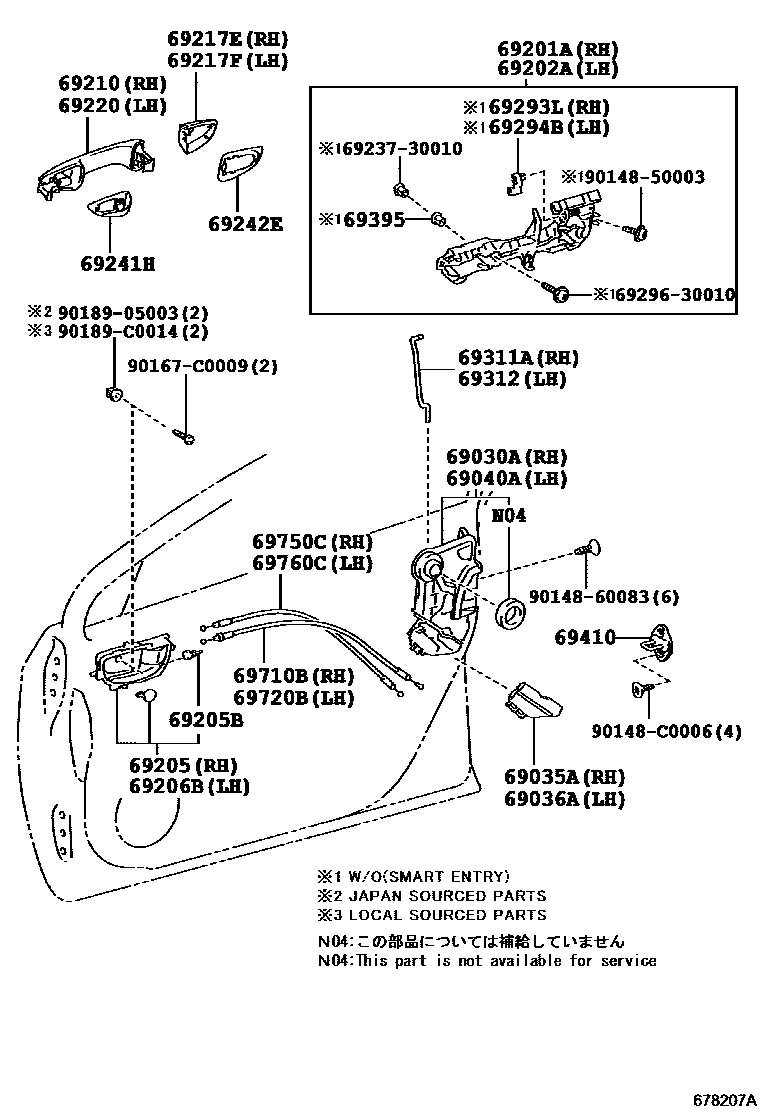

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02620iZRE182201406-201802

main69030-02630iNRE181,ZRE181..GL201406

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02060iNRE181,ZWE182201406-201802

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02060iNRE181,ZRE18#,ZWE182201406-201802

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02590iNRE181,ZRE18#,ZWE182201406-201802

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02280iNRE181,ZWE182..GL,GLI201406

main69201-0R030iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02220iNRE181,ZWE182..GL,GLI201406

main69202-0R030iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02260-A0iNRE181,ZRE181..GL201406-201704

IVORY,TRIM01

main69205-02260-A0iNRE181,ZRE18#,ZWE182..GLI,GLXI,PREM201406-201703

IVORY,TRIM0#

main69205-02260-A1iZRE181201704-201802

FLAXEN,TRIM0#

main69205-02260-C0iZRE182201406-201802

BLACK,TRIM2#

main69205-02260-C0iNRE181,ZRE181..GL201406

BLACK,TRIM00,2#

main69205-02490-A0iZRE181..5F201803

AUDIOLESS PACKAGE,FLAXEN,TRIM0#

main69205-02490-C0iZRE181..5F201803

AUDIOLESS PACKAGE,BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iNRE181,ZWE182201406-201802

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02260-A0iNRE181,ZRE18#,ZWE182..GLI,GLXI,PREM201406-201703

IVORY,TRIM0#

main69206-02260-A0iNRE181,ZRE181..GL201406-201704

IVORY,TRIM01

main69206-02260-A1iZRE181201704-201802

FLAXEN,TRIM0#

main69206-02260-C0iZRE182201406-201802

BLACK,TRIM2#

main69206-02260-C0iNRE181,ZRE181..GL201406

BLACK,TRIM00,2#

main69206-02470-A0iZRE181..5F201803

AUDIOLESS PACKAGE,FLAXEN,TRIM0#

main69206-02470-C0iZRE181..5F201803

AUDIOLESS PACKAGE,BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-02230-A0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

SUPER WHITE 2,040

main69210-02230-A1iNRE181,ZWE182..GLXI,PREM201610-201802

WHITE PEARL CS.,070

main69210-02230-B0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

SILVER ME.,1F7

main69210-02230-B1iNRE181,ZRE18#..GLXI,PREM201406-201703

GRAY ME.,1G3

main69210-02230-C0iZRE182201406-201802

BLACK MC.,209

main69210-02230-D0iZRE182201406-201802

RED M.M.,3R3

main69210-02230-E0iZRE182201406-201802

AVANT-GARDE BRONZE ME.,4V8

main69210-02230-E1iZRE182201704-201811

DK.BROWN M.M.,4X5

main69210-02230-F0iZRE182201704-201902

LT.YELLOW M.M.,5B2

main69210-02230-H0iZWE182..GLXI,PREM201512-201905

GRAYISH TEAL ME.,784

main69210-02230-J0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201703

BLUE ME.,8T7

main69210-02250-A0iNRE181,ZWE182..GL,GLI201406

SUPER WHITE 2,040

main69210-02250-A1iNRE181,ZRE181,ZWE182..GL,GLI201610

WHITE PEARL CS.,070

main69210-02250-B0iNRE181,ZWE182..GL,GLI201406

SILVER ME.,1F7

main69210-02250-B1iNRE181,ZRE181..GL,GLI201406-201803

GRAY ME.,1G3

main69210-02250-C0iNRE181,ZRE181,ZWE182..GL,GLI201406

BLACK MC.,209

main69210-02250-D0iNRE181,ZWE182..GL,GLI201406

RED M.M.,3R3

main69210-02250-E0iNRE181,ZWE182..GL,GLI201406

AVANT-GARDE BRONZE ME.,4V8

main69210-02250-E1iNRE181,ZWE182..GL,GLI201704-201811

DK.BROWN M.M.,4X5

main69210-02250-F0iNRE181,ZWE182..GL,GLI201704-201902

LT.YELLOW M.M.,5B2

main69210-02250-J0iNRE181,ZRE181,ZWE182..GL,GLI201406-201803

BLUE ME.,8T7

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69250-02110-A0iNRE181,ZWE182..GLXI,PREM201406-201802

SUPER WHITE 2,040

main69250-02110-A1iNRE181,ZRE182,ZWE182..GLXI,PREM201610-201802

WHITE PEARL CS.,070

main69250-02110-B0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

SILVER ME.,1F7

main69250-02110-B1iNRE181,ZRE18#..GLXI,PREM201406-201703

GRAY ME.,1G3

main69250-02110-C0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

BLACK MC.,209

main69250-02110-D0iZRE182201406-201802

RED M.M.,3R3

main69250-02110-E0iNRE181,ZWE182..GLXI,PREM201406-201802

AVANT-GARDE BRONZE ME.,4V8

main69250-02110-E1iNRE181,ZWE182..GLXI,PREM201704-201811

DK.BROWN M.M.,4X5

main69250-02110-F0iZRE182201704-201902

LT.YELLOW M.M.,5B2

main69250-02110-H0iZWE182..GLXI,PREM201512-201905

GRAYISH TEAL ME.,784

main69250-02110-J0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201703

BLUE ME.,8T7

main69250-02190-A0iNRE181,ZRE181,ZWE182..GL,GLI201406

SUPER WHITE 2,040

main69250-02190-A1iNRE181,ZWE182..GL,GLI201610

WHITE PEARL CS.,070

main69250-02190-B0iNRE181,ZWE182..GL,GLI201406

SILVER ME.,1F7

main69250-02190-B1iNRE181,ZRE181..GL,GLI201406-201803

GRAY ME.,1G3

main69250-02190-C0iNRE181,ZRE181,ZWE182..GL,GLI201406

BLACK MC.,209

main69250-02190-D0iNRE181,ZWE182..GL,GLI201406

RED M.M.,3R3

main69250-02190-E0iNRE181,ZWE182..GL,GLI201406

AVANT-GARDE BRONZE ME.,4V8

main69250-02190-E1iNRE181,ZWE182..GL,GLI201704-201811

DK.BROWN M.M.,4X5

main69250-02190-F0iNRE181,ZWE182..GL,GLI201704-201902

LT.YELLOW M.M.,5B2

main69250-02190-J0iNRE181,ZRE181,ZWE182..GL,GLI201406-201803

BLUE ME.,8T7

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69250-02120-A0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

SUPER WHITE 2,040

main69250-02120-A1iZRE182201610-201802

WHITE PEARL CS.,070

main69250-02120-B0iNRE181,ZWE182..GLXI,PREM201406-201802

SILVER ME.,1F7

main69250-02120-B1iNRE181,ZRE18#..GLXI,PREM201406-201703

GRAY ME.,1G3

main69250-02120-C0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

BLACK MC.,209

main69250-02120-D0iNRE181,ZWE182..GLXI,PREM201406-201802

RED M.M.,3R3

main69250-02120-E0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

AVANT-GARDE BRONZE ME.,4V8

main69250-02120-E1iNRE181,ZWE182..GLXI,PREM201704-201811

DK.BROWN M.M.,4X5

main69250-02120-F0iZRE182201704-201902

LT.YELLOW M.M.,5B2

main69250-02120-H0iZWE182..GLXI,PREM201512-201905

GRAYISH TEAL ME.,784

main69250-02120-J0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201703

BLUE ME.,8T7

main69250-02200-A0iNRE181,ZRE181,ZWE182..GL,GLI201406

SUPER WHITE 2,040

main69250-02200-A1iNRE181,ZRE181,ZWE182..GL,GLI201610

WHITE PEARL CS.,070

main69250-02200-B0iNRE181,ZRE181,ZWE182..GL,GLI201406

SILVER ME.,1F7

main69250-02200-B1iNRE181,ZRE181..GL,GLI201406-201803

GRAY ME.,1G3

main69250-02200-C0iNRE181,ZWE182..GL,GLI201406

BLACK MC.,209

main69250-02200-D0iNRE181,ZRE181,ZWE182..GL,GLI201406

RED M.M.,3R3

main69250-02200-E0iNRE181,ZRE181,ZWE182..GL,GLI201406

AVANT-GARDE BRONZE ME.,4V8

main69250-02200-E1iNRE181,ZWE182..GL,GLI201704-201811

DK.BROWN M.M.,4X5

main69250-02200-F0iNRE181,ZWE182..GL,GLI201704-201902

LT.YELLOW M.M.,5B2

main69250-02200-J0iNRE181,ZRE181,ZWE182..GL,GLI201406-201803

BLUE ME.,8T7

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-02170-A0iNRE181,ZWE182..GLXI,PREM201406-201802

SUPER WHITE 2,040

main69220-02170-A1iNRE181,ZRE182,ZWE182..GLXI,PREM201610-201802

WHITE PEARL CS.,070

main69220-02170-B0iZRE182201406-201802

SILVER ME.,1F7

main69220-02170-B1iNRE181,ZRE18#..GLXI,PREM201406-201703

GRAY ME.,1G3

main69220-02170-C0iZRE182201406-201802

BLACK MC.,209

main69220-02170-D0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201802

RED M.M.,3R3

main69220-02170-E0iZRE182201406-201802

AVANT-GARDE BRONZE ME.,4V8

main69220-02170-E1iZRE182201704-201811

DK.BROWN M.M.,4X5

main69220-02170-F0iZRE182201704-201902

LT.YELLOW M.M.,5B2

main69220-02170-H0iZWE182..GLXI,PREM201512-201905

GRAYISH TEAL ME.,784

main69220-02170-J0iNRE181,ZRE18#,ZWE182..GLXI,PREM201406-201703

BLUE ME.,8T7

main69220-02190-A0iNRE181,ZRE181,ZWE182..GL,GLI201406

SUPER WHITE 2,040

main69220-02190-A1iNRE181,ZWE182..GL,GLI201610

WHITE PEARL CS.,070

main69220-02190-B0iNRE181,ZWE182..GL,GLI201406

SILVER ME.,1F7

main69220-02190-B1iNRE181,ZRE181..GL,GLI201406-201803

GRAY ME.,1G3

main69220-02190-C0iNRE181,ZRE181,ZWE182..GL,GLI201406

BLACK MC.,209

main69220-02190-D0iNRE181,ZRE181,ZWE182..GL,GLI201406

RED M.M.,3R3

main69220-02190-E0iNRE181,ZWE182..GL,GLI201406

AVANT-GARDE BRONZE ME.,4V8

main69220-02190-E1iNRE181,ZWE182..GL,GLI201704-201811

DK.BROWN M.M.,4X5

main69220-02190-F0iNRE181,ZWE182..GL,GLI201704-201902

LT.YELLOW M.M.,5B2

main69220-02190-J0iNRE181,ZRE181,ZWE182..GL,GLI201406-201803

BLUE ME.,8T7

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-02200iNRE181,ZRE18#,ZWE182201406-201802

RH

main69242-02190iZRE182201406-201802

LH

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69241-02210iNRE181,ZRE18#,ZWE182201406-201802

RH

main69242-02200iZRE182201406-201802

LH

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-33010iNRE181,ZWE182..GL,GLI201406

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33020iNRE181,ZRE181,ZWE182..GL,GLI201406

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-02310iNRE181,ZRE18#,ZWE182201406-201802

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-02310iNRE181,ZRE18#,ZWE182201406-201802

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69239-30010iNRE181,ZRE181,ZWE182..GL,GLI201406

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D020iZRE182201406-201802

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-02310iNRE181,ZRE18#,ZWE182201406-201802

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-02310iZRE182201406-201802

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-02340iNRE181,ZWE182201406-201802

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-02340iNRE181,ZRE18#,ZWE182201406-201802

6923730010RETAINER, DOOR OUTSIDE HANDLE

main69237-30010

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

9014850003

main90148-50003

9014860083

main90148-60083

90148C0006

main90148-C0006

90167C0009

main90167-C0009

9018905003

main90189-05003

90189C0014

main90189-C0014

33 parts on this diagram · 1 diagram in section
