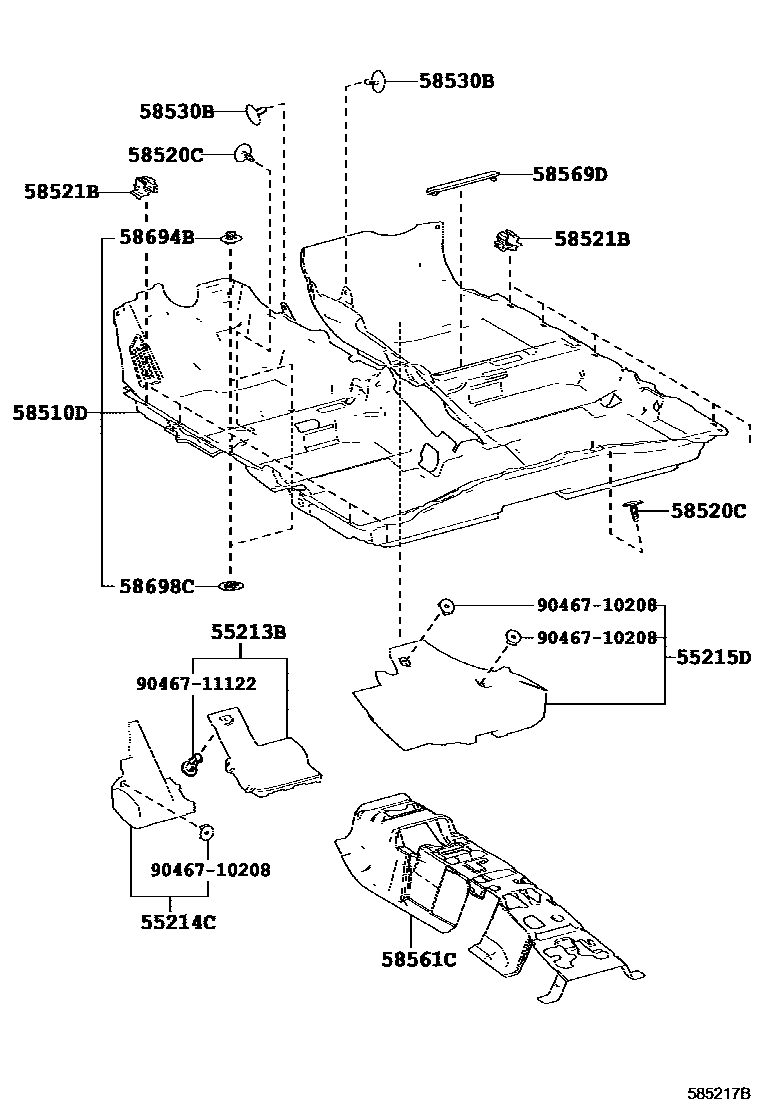

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
IVORY,TRIM0#
BLACK,TRIM2#
BLACK,TRIM0#,2#
IVORY,TRIM01
IVORY,TRIM0#
BLACK,TRIM00,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
58520CCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM0#,2#
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK
BLACK
58561CSILENCER, FRONT FLOOR, NO.1
58569DCOVER, FRONT FLOOR CAUTION PLATE
IVORY,TRIM0#
IVORY,TRIM01
BLACK,TRIM00,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
9046710208
9046711122
13 parts on this diagram · 2 diagrams in section
