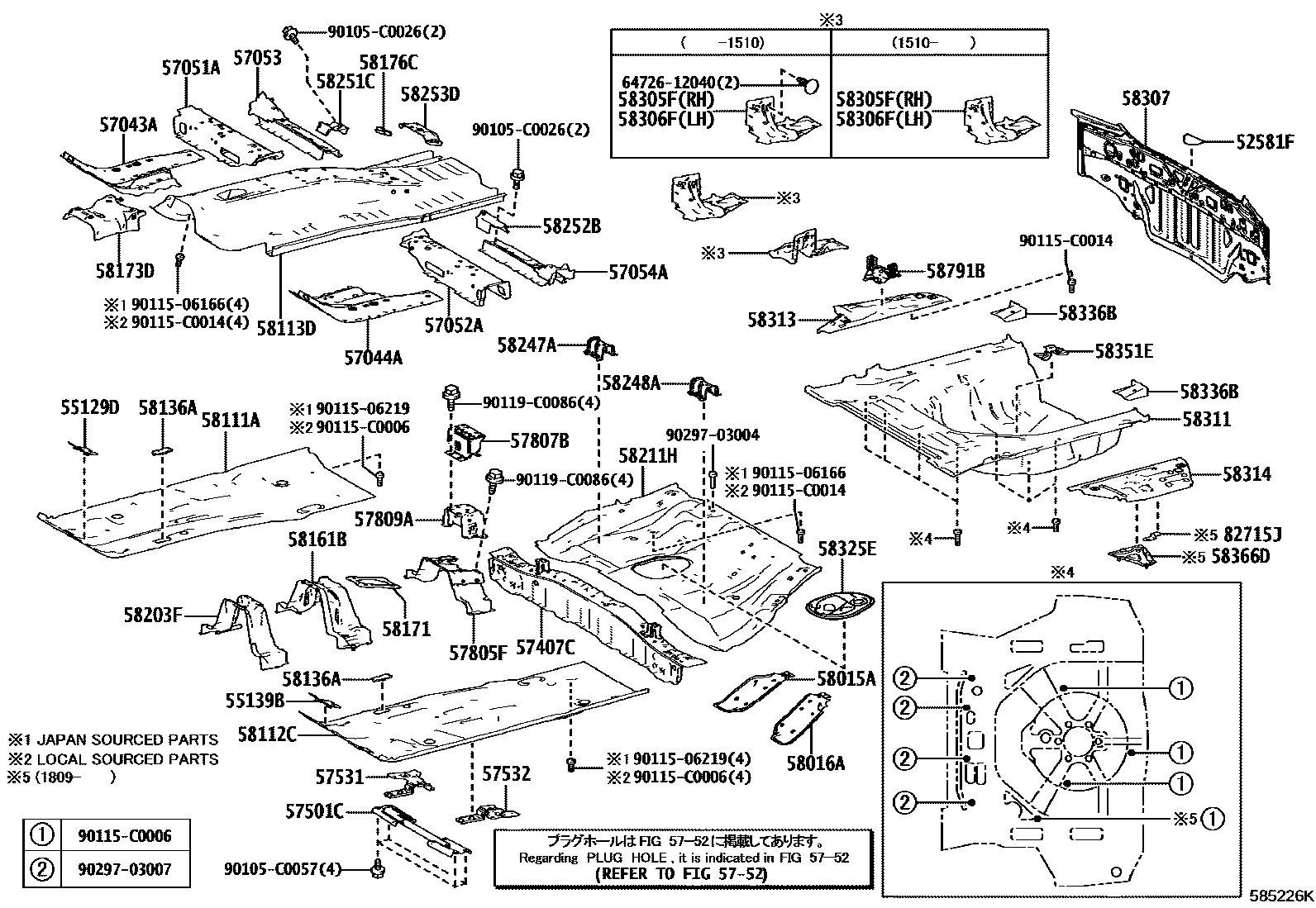

FLOOR PAN & LOWER BACK PANEL
52581FPROTECTOR, REAR BUMPER
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER
5752
57531BRACKET, FRONT FLOOR CENTER BRACE, RH
57532BRACKET, FRONT FLOOR CENTER BRACE, LH
57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
57807BREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.2
57809AREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58136ACOVER, FRONT FLOOR SERVICE HOLE
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58171REINFORCEMENT, PARKING BRAKE BASE
58173DBRACKET, COMPUTER MOUNTING, NO.4
58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2
58203FBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58251CBRACE, FLOOR PANEL, FRONT RH
58252BBRACE, FLOOR PANEL, FRONT LH
58253DBRACKET, PARKING BRAKE CABLE
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58313PANEL, REAR FLOOR SIDE, RH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58351EBRACKET, SPARE WHEEL CLAMP
58366DREINFORCEMENT, FUEL TANK SUPPORT, REAR
58791BCARRIER, JACK
82715JBRACKET, WIRING HARNESS CLAMP
6472612040PAD, HOUSING SPARE WHEEL SILENCER, FRONT
90105C0026
main90105-C0026
90105C0057
main90105-C0057
9011506166
9011506219
90115C0006
main90115-C0006
90115C0014
main90115-C0014
90119C0086
main90119-C0086
9029703004
9029703007
56 parts on this diagram · 4 diagrams in section
