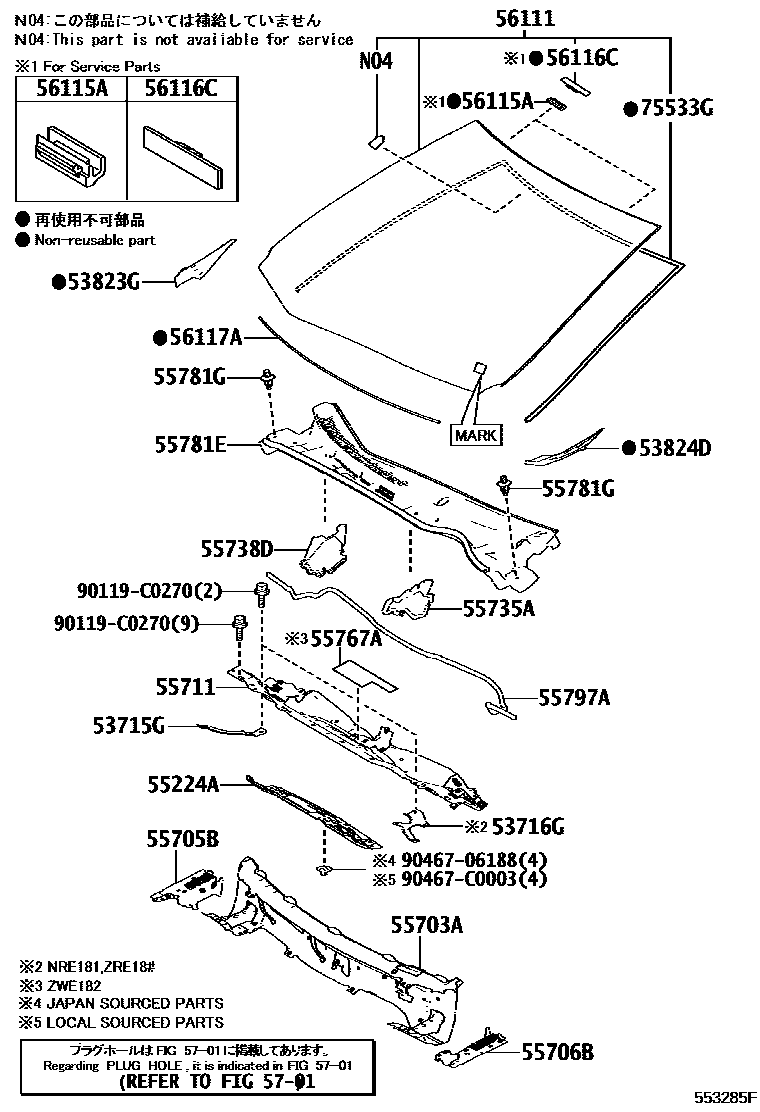

COWL PANEL & WINDSHIELD GLASS

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-02070iNRE181,ZRE18#,ZWE182201406

53716GEXTENSION, FRONT FENDER APRON, REAR LH

main53716-02070iNRE181,ZRE18#201406

53823GPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-02130iNRE181,ZRE18#,ZWE182201406

53824DPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-02130iNRE181,ZRE18#,ZWE182201406

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-02110iNRE181,ZRE18#,ZWE182201406

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-02330iNRE181,ZRE18#,ZWE182201406

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-02180iNRE181,ZRE18#,ZWE182201406

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-02180iNRE181,ZRE18#,ZWE182201406

55711PANEL, COWL TOP, OUTER

main55701-02300iZRE182201704-201802

main55701-02480iZWE182201512-201703

55735APLATE, WATER GUARD, LH

main55734-02350iNRE181,ZRE18#,ZWE182201406

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-02200iNRE181,ZRE18#,ZWE182201406

55767ASHEET, COWL TOP INSULATOR, NO.5

main55767-02030iZWE182201512-201703

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-02680iZRE181..GL;ZRE182,ZWE182..CVT201406-201610

main55708-02681iNRE181,ZRE18#,ZWE182201611

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-C0026×2iNRE181,ZRE18#,ZWE182201406

55797ASEAL, COWL WATER EXTRACT

main55797-02150iNRE181,ZRE18#,ZWE182201406

56111GLASS, WINDSHIELD

main56101-02G90iZWE182..GLI;NRE181,ZRE18#201406-201612

GLASS MARK=NSG

main56101-02G91iZWE182..GLI;NRE181,ZRE18#201701

MARK=NSG(E000546)

main56101-02J30iZWE182..GLI;NRE181,ZRE18#201406-201612

GLASS MARK=FY

main56101-02J31iZRE182201708-201802

MARK=FUYAO(E000970)

main56101-02K20iZWE182..PREM201512-201612

main56101-02K21iZWE182..PREM201701-201703

main56101-02K70iZWE182..GLXI201512-201612

main56101-02K71iZWE182..GLXI201701-201703

main56101-0Z330iZRE181201708

MARK=FUYAO(E006888)

main56101-0Z340iZWE182..PREM201708

MARK=FUYAO(E006888)

main56101-0Z350iZWE182..GLXI201708

MARK=FUYAO(E006888)

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120×2iNRE181,ZRE18#,ZWE182201406

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iNRE181,ZRE18#,ZWE182201406

56117ADAM, WINDOW GLASS ADHESIVE

main56117-02270iNRE181,ZRE18#,ZWE182201406

L=1262.5

5701

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-02180iNRE181,ZRE18#,ZWE182201406

MARK=TSG

main75533-02200iNRE181,ZWE182201704

MARK=FY

90119C0270

main90119-C0270

9046706188

main90467-06188

90467C0003

main90467-C0003

24 parts on this diagram · 1 diagram in section
