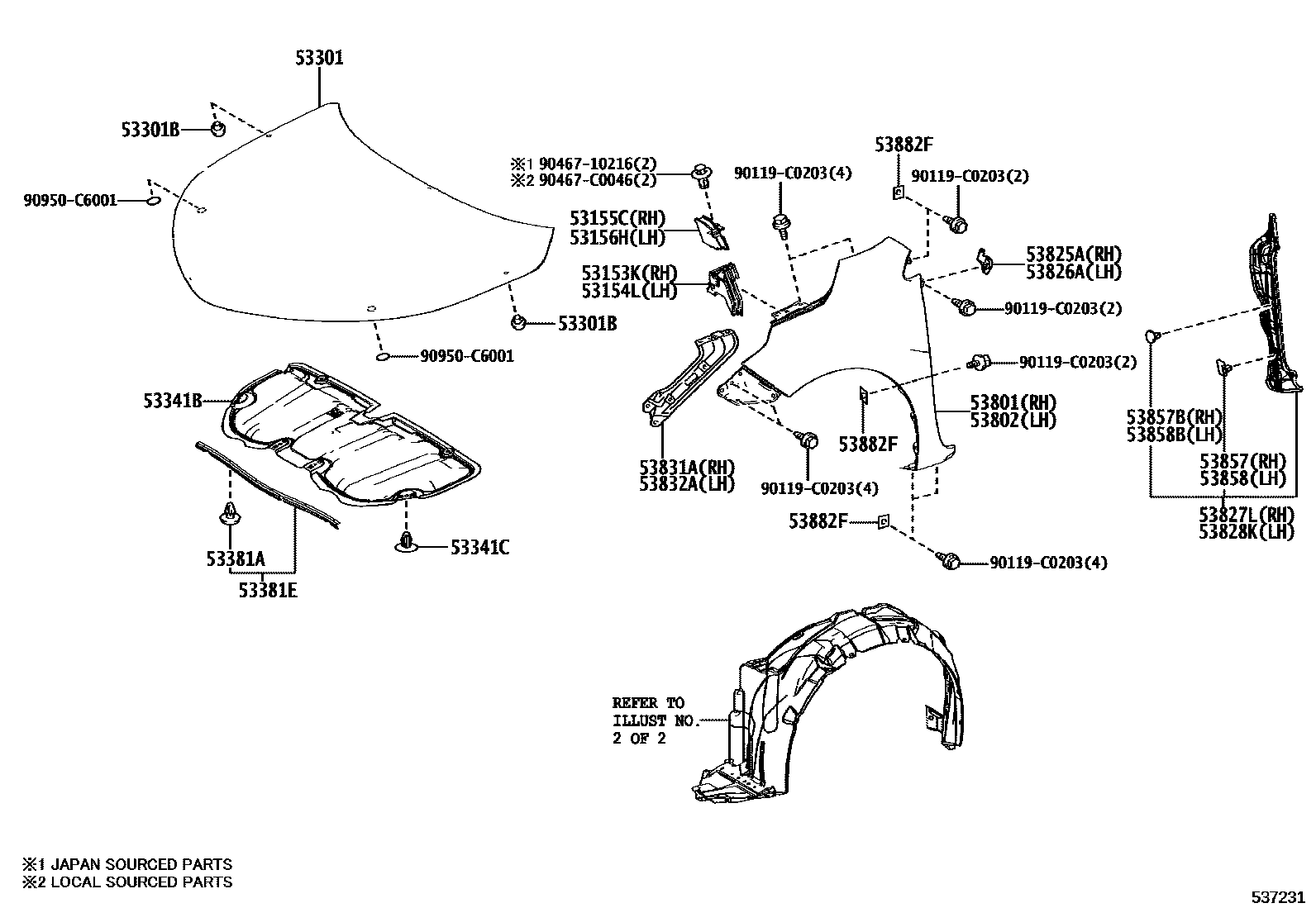

HOOD & FRONT FENDER
53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH
53155CSEAL, RADIATOR GRILLE, NO.1
53156HSEAL, RADIATOR GRILLE, NO.2
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
(J)
(L)
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53831APANEL, FRONT FENDER SIDE, UPPER RH
53832APANEL, FRONT FENDER SIDE, UPPER LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
(L)
(J)
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
(L)
(J)
53882FSEAL, FRONT FENDER
(L)
(J)
90119C0203
main90119-C0203
9046710216
90467C0046
main90467-C0046
90950C6001
main90950-C6001
27 parts on this diagram · 2 diagrams in section
