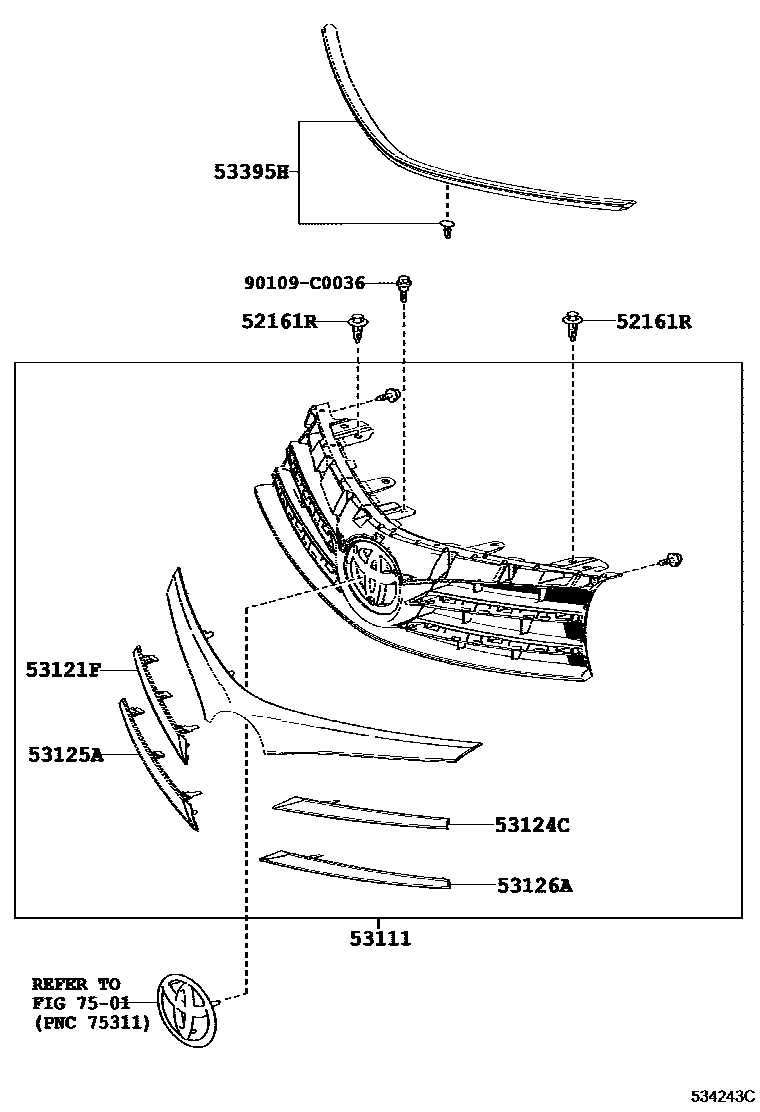

RADIATOR GRILLE

0001 1 0003 1 0004 1

52161RPIECE, FRONT BUMPER

main52161-02040iNRE181,ZWE182201406-201802

(L)

main52161-16010iZRE182201406-201802

(J)

sub52161-0K040

53111GRILLE, RADIATOR

main53100-02420iNRE181,ZRE18#201406

PLATED

main53100-02840iZWE182201512-201703

PLATED

main53100-02C30iNRE181201704-201802

PLATED

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53121-02260iNRE181,ZRE18#201406

main53121-02310iZWE182201512-201703

main53121-02410iZRE182201704-201802

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53124-02250iNRE181,ZRE18#201406

main53124-02300iZWE182201512-201703

main53124-02400iZRE182201704-201802

53125AMOULDING, RADIATOR GRILLE, CENTER RH

main53125-02110iNRE181,ZRE18#201406

53126AMOULDING, RADIATOR GRILLE, CENTER LH

main53126-02140iNRE181,ZRE18#201406

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-02140iNRE181,ZRE18#201406-201802

main53395-02180iZWE182201512-201703

7501

90109C0036

main90109-C0036

9 parts on this diagram · 3 diagrams in section
