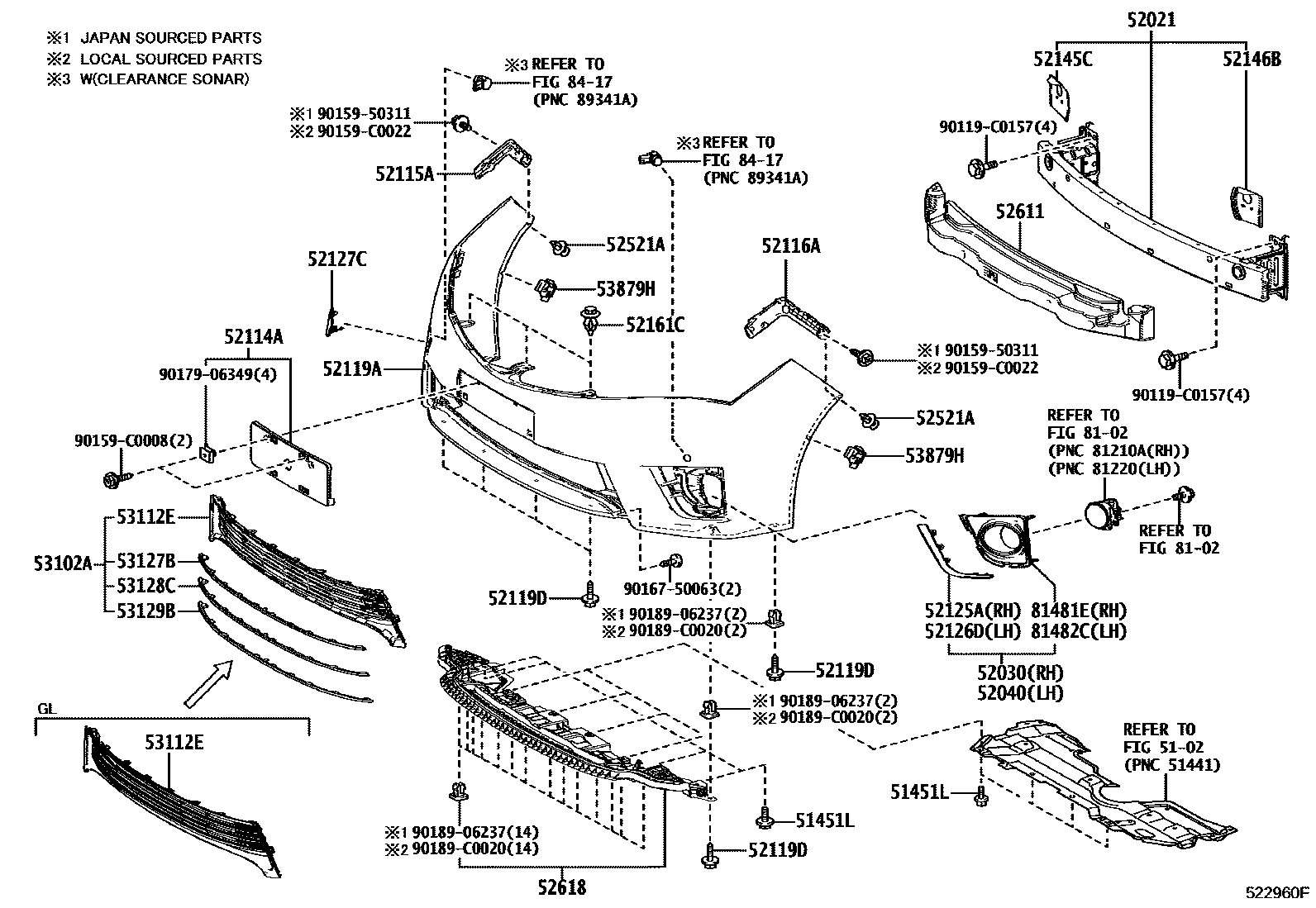

FRONT BUMPER & BUMPER STAY
5102
51451LBOLT, NO.1
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52030COVER ASSY, FRONT BUMPER HOLE, RH
52040COVER ASSY, FRONT BUMPER HOLE, LH
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.,AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER
PAINT REQ.
PAINT REQ.,AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,AUDIO-*DA(ACCESSORY) & *BT & 6SPEAKER
PAINT REQ.,AUDIO-AVN(ACCESSORY) & 6SPEAKER
PAINT REQ.
PAINT REQ.,MOON ROOF PACKAGE(*MR & *LES)
52119DSCREW, NO.1
52125ABRACKET, FOG LAMP MOUNTING, RH
52126DBRACKET, FOG LAMP MOUNTING, LH
52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH
52161CPIECE, FRONT BUMPER
(L)
52521ACLIP(FOR FRONT BUMPER RETAINER)
52611ABSORBER, FRONT BUMPER ENERGY
52618ABSORBER, FRONT BUMPER, LOWER
53102AGRILLE SUB-ASSY, RADIATOR, LWR
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
53127BMOULDING, RADIATOR GRILLE, NO.7
53128CMOULDING, RADIATOR GRILLE, NO.8
53129BMOULDING, RADIATOR GRILLE, NO.9
53879HRETAINER, FRONT FENDER LINER
(L)
(J)
8102
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
8417
90119C0157
main90119-C0157
9015950311
main90159-50311
90159C0008
main90159-C0008
90159C0022
main90159-C0022
9016750063
main90167-50063
9017906349
main90179-06349
9018906237
main90189-06237
90189C0020
main90189-C0020
37 parts on this diagram · 3 diagrams in section
