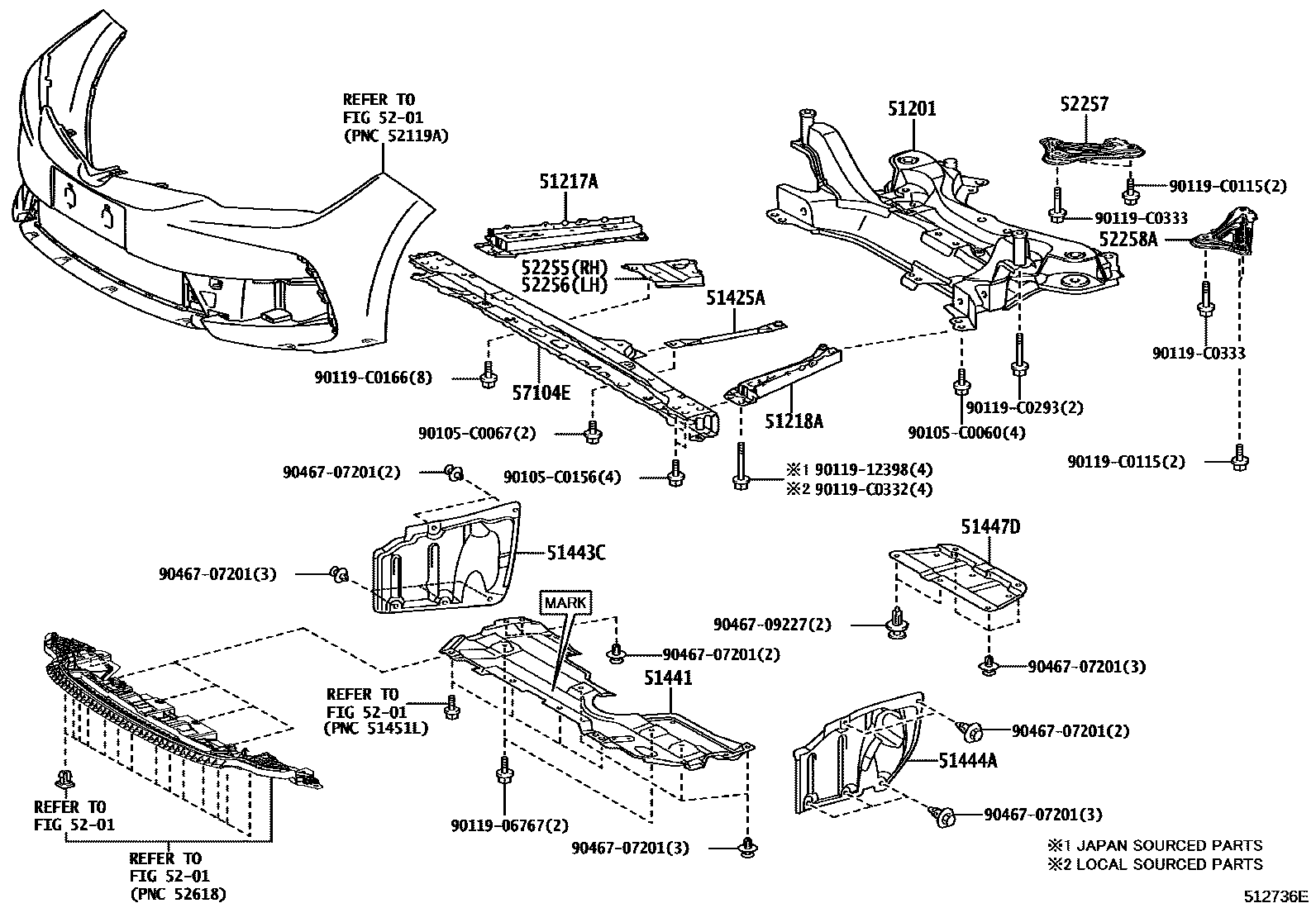

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02132iNRE181,ZRE18#,ZWE182201406-201802

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-02030iNRE181,ZRE18#,ZWE182201406-201907

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-02030iNRE181,ZRE18#,ZWE182201406-201802

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-02040iNRE181,ZRE18#,ZWE182201406-201802

51441COVER, ENGINE UNDER, NO.1

main51441-02470iZRE18#201406-201602

main51441-02470iNRE181201602-201802

MARK 51441-02470

main51441-02520iZRE182201602-201802

MARK 51441-02520

51443CCOVER, ENGINE UNDER, REAR RH

main51443-02070iNRE181,ZRE18#,ZWE182201406-201802

51444ACOVER, ENGINE UNDER, REAR LH

main51444-02060iNRE181,ZRE18#,ZWE182201406-201802

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-02030iNRE181,ZRE18#,ZWE182201406-201802

5201

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-02030iNRE181,ZRE18#,ZWE182201406-201802

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-02030iNRE181,ZRE18#,ZWE182201406-201802

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-02080iNRE181,ZRE18#,ZWE182201406-201802

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-02080iNRE181,ZRE18#,ZWE182201406-201802

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-02380iNRE181,ZRE18#,ZWE182201406-201802

90105C0060

main90105-C0060

90105C0067

main90105-C0067

90105C0156

main90105-C0156

9011906767

main90119-06767

9011912398

main90119-12398

90119C0115

main90119-C0115

90119C0166

main90119-C0166

90119C0293

main90119-C0293

90119C0332

main90119-C0332

90119C0333

main90119-C0333

9046707201

main90467-07201

9046709227

main90467-09227

26 parts on this diagram · 2 diagrams in section
