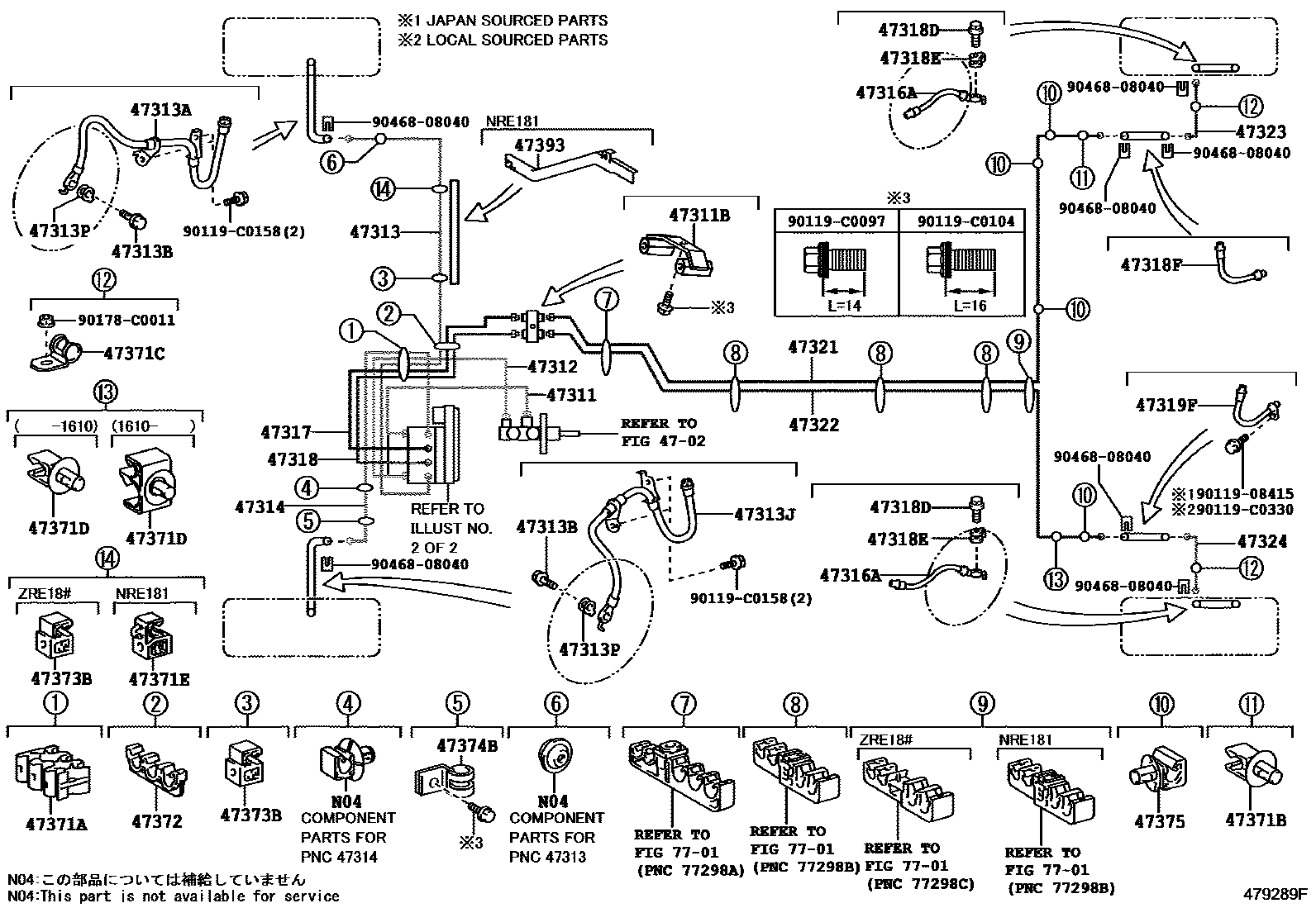

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR 0004 1BRAKE ACTUATOR 0005 1BRAKE BOOSTER PUMP

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-02C00iZRE181201406

main47311-02C10iZRE182201406-201610

main47311-02C11iNRE181,ZRE182201610-201703

main47311-02C20iZWE182201704

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-C0001iNRE181,ZWE182201704

47312TUBE, FRONT BRAKE, NO.2

main47312-02A70iZRE181201406

main47312-02A80iZRE182201406-201610

main47312-02A81iZRE182201704-201802

47313TUBE, FRONT BRAKE, NO.3

main47313-02C30iZRE181201406

main47313-02C40iZRE182201406-201610

main47313-02C41iZRE182201704-201802

main47313-02C70iZWE182201512-201703

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-C2049iNRE181,ZRE18#,ZWE182201406

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-C0001×2iNRE181,ZRE18#,ZWE182201406

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-C2050iZRE182201704-201802

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iZRE182201704-201802

47314TUBE, FRONT BRAKE, NO.4

main47314-02B60iZRE181201406

main47314-02B70iZRE182201406-201610

main47314-02B71iNRE181,ZRE182201610-201703

main47314-02C20iZWE182201704

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-C2052×2iNRE181,ZRE18#,ZWE182201406

47317TUBE, FRONT BRAKE, NO.7

main47317-02B00iZRE181201406

main47317-02B10iZRE182201406-201610

main47317-02B11iNRE181201704

main47317-02B60iZWE182201512-201703

47318TUBE, FRONT BRAKE, NO.8

main47318-02B20iZRE181201406

main47318-02B30iZRE182201406-201610

main47318-02B31iNRE181201704

main47318-02B80iZWE182201512-201703

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-C0001×2iNRE181,ZWE182201704

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iNRE181,ZRE18#,ZWE182201406

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-C2051iNRE181,ZRE18#,ZWE182201406

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-C2053iNRE181,ZRE18#,ZWE182201406

47321TUBE, REAR BRAKE, NO.1

main47321-02530iZRE18#201406-201610

main47321-02531iZRE182201704-201802

main47321-02560iZWE182201512-201703

47322TUBE, REAR BRAKE, NO.2

main47322-02530iZRE18#201406-201610

main47322-02531iNRE181,ZRE18#201610

main47322-02560iZWE182201512-201703

47323TUBE, REAR BRAKE, NO.3

main47323-02130iZRE18#201406-201507

main47323-02150iZRE182201704-201802

47324TUBE, REAR BRAKE, NO.4

main47324-02140iZRE18#201406-201507

main47324-02200iZRE182201704-201802

47371ACLAMP, BRAKE TUBE, NO.1

main47371-02040iZWE182201804

main47371-47060iZWE182201512-201703

main90464-00933iZRE182201406-201610

main90949-01969iZRE181201406

main90949-01E44iNRE181,ZRE182201610-201703

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D17×4iZWE182201704

main90949-01D29iNRE181201704

47371CCLAMP, BRAKE TUBE, NO.7

main90461-C0002×2iNRE181201704

main90949-01D29iZWE182201512-201703

47371DCLAMP, BRAKE TUBE, NO.8

main77286-75020iNRE181,ZRE18#201610

main90461-C0002×2iZWE182201704

main90949-01D29iZRE18#201406-201610

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01E18iNRE181201610-201703

47372CLAMP, BRAKE TUBE, NO.2

main90464-00868iZRE181;ZRE182..6F201406

main90464-00904×2iZWE182201704

main90949-01D92iNRE181,ZRE182201610-201703

47373BCLAMP, BRAKE TUBE, NO.3

main90461-10840iZWE182201704

main90949-01C82×2iZRE18#201406

main90949-01E19iNRE181201704

47374BCLAMP, BRAKE TUBE, NO.4

main90461-10781iNRE181,ZRE18#,ZWE182201406

47375CLAMP, BRAKE TUBE, NO.5

main77286-75020iZWE182201704

main90949-01D17×4iZRE182201704-201802

47393INSULATOR, BRAKE TUBE HEAT

main47393-02050iNRE181201806

main47393-12040iNRE181201704-201806

7701

9011908415

main90119-08415

90119C0097

main90119-C0097

90119C0104

main90119-C0104

90119C0158

main90119-C0158

90119C0330

main90119-C0330

90178C0011

main90178-C0011

9046808040

main90468-08040
